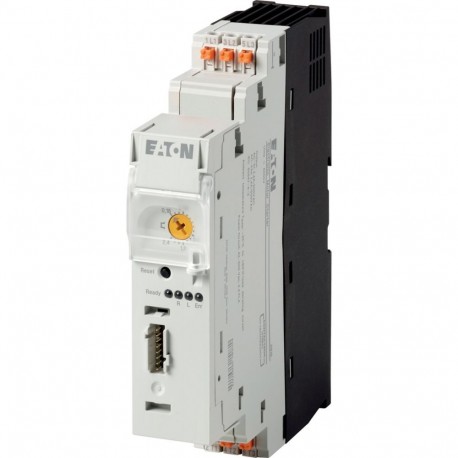

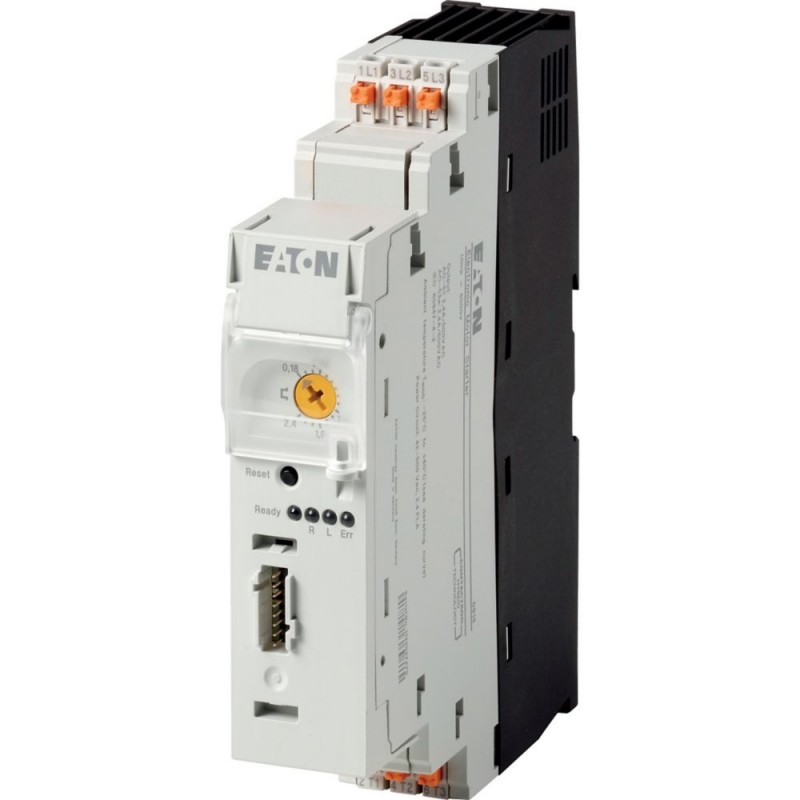

EMS-DO-T-9-SWD 170107 EATON ELECTRIC Starter Direct 9 SWD
EMS-DO-T-9-SWD
170107
EATON-MOELLER
Starter Direct 9; SWD
Electronic starter; Direct start; 9 A; With SmartWire-DT
DOL starter, 24 V DC, 1,5 - 7 (AC-53a), 9 (AC-51) A, Push in terminals, SmartWire-DT slave
DOL starter, Actuating voltage: 24 V DC, Standards: IEC/EN 60947-4-2
Low-voltage industrial components > Motor starter/Motor starter combination
Standard Soft Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲DOL starter, 24 V DC, 1,5 - 7 (AC-53a), 9 (AC-51) A, Push in terminals, SmartWire-DT slave
DOL starter, Actuating voltage: 24 V DC, Standards: IEC/EN 60947-4-2
Delivery program
This item is only available for a limited time. Replacement item: Art. no. 192387, Type: EMS2-DO-T-9-SWD
Product range
Electronic motor starter
Product range
SmartWire-DT slave
Subrange
SmartWire-DT electronic motor starters
Basic function
DOL starters (complete devices)
Function
For connecting to SmartWire-DT for expanded diagnostics.
Description
DOL starting
Motor protection
Circuit design: safety output stage with bypass, three-phase disconnect.
Motor current additionally adjustable via SmartWire-DT.
Motor protection
Circuit design: safety output stage with bypass, three-phase disconnect.
Motor current additionally adjustable via SmartWire-DT.
Messages
Operational readiness
Operating direction feedback
Motor current in %
Motor current in A
Thermal motor image in %
Overload prewarning
Trip indications (overload, phase failure, etc.)
Set short-circuit release value
Device Type
Operating direction feedback
Motor current in %
Motor current in A
Thermal motor image in %
Overload prewarning
Trip indications (overload, phase failure, etc.)
Set short-circuit release value
Device Type
Commands
Operating the motor starter
Manual reset
Automatic reset
Manual reset
Automatic reset
Motor ratings
Max. rating for three-phase motors, 50 - 60 HzAC-53a380 V 400 V 415 V [P]
0.55 - 3 kW
Setting range of overload releases
[Ir]
[Ir]1,5 - 7 (AC-53a)
9 (AC-51) A_x
9 (AC-51) A_x
Actuating voltage
24 V DC
Connection technique
Push in terminals
Connection to SmartWire-DT
yes
Technical data
General
Standards
IEC/EN 60947-4-2
DimensionsWidth
30 mm
DimensionsHeight
157 mm
DimensionsDepth
124 mm
Weight
0.3 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Mounting position
Vertical
Lifespan, electrical [Operations]
3 x 107
Max. switching frequency
7200 (pulse pause time 50:50) Operations/h
Terminal capacitySolid
1 x (0.2 - 2.5)
1 x AWG20 - 14 mm2
1 x AWG20 - 14 mm2
Terminal capacityflexible, with ferrule
2 x (0,2 - 2,5)
1 x AWG24 - 14 mm2
1 x AWG24 - 14 mm2
Terminal capacityNotes
Minimum length 10 mm.
Terminal capacityflexible, with twin ferrule
2 x (0,2 - 1,5)
2 x AWG24 - 16 mm2
2 x AWG24 - 16 mm2
Terminal capacityNotes
Minimum length 10 mm.
Climatic environmental conditions
Operating ambient temperature
-5 - +60, in accordance with IEC 60068-2-1 °C
Storage [ϑ]
-40 - +80 °C
Main conducting paths
Rated impulse withstand voltage [Uimp]
6000 V AC
Overvoltage category/pollution degree
III/2
Rated operational voltage [Ue]
42 - 550 V
Rated operational currentAC-51 [Ie]
1.20 - 9 A
Rated operational currentAC-53a [Ie]
1.20 - 7 A
Heat dissipation [PV]
1 - 12 W
Static heat dissipation, non-current-dependent [Pvs]
1 W
Basic insulation to IEC/EN60947-1Between supply, control, and switching voltages
500 V AC
Basic insulation to IEC/EN60947-1between feedback signal output and switch voltage
500 V AC
Current measurementSetting range of overload releases[Ir]
[Ir]1,5 - 7 (AC-53a)
9 (AC-51) A_x
9 (AC-51) A_x
Current measurementRelease class
10 (Ir ≦ 4 A)
10A (Ir > 4 A) CLASS
10A (Ir > 4 A) CLASS
Current measurementRecovery time [tW]
2 (manual startup)
20 (automatic restart) min.
20 (automatic restart) min.
Current measurementBalance monitoringMagnitude Imax> Irated((Imax- Imin)/Imax)
If ≧ 33, pick-up time of 120 s
If ≧ 67, pick-up time of 1.8 s %
If ≧ 67, pick-up time of 1.8 s %
Current measurementBalance monitoringMagnitude Imax< Irated((Imax- Imin)/Irated)
If ≧ 33, pick-up time of 120 s
If ≧ 67, pick-up time of 1.8 s %
If ≧ 67, pick-up time of 1.8 s %
Stall protectionPick-up time I (L1) or I (L3)
60 A
Stall protectionPick-up time
0.5 S
Short-circuit ratingType “1” coordinationShort-circuit protective device
50 kA, 500 V AC: Fuse 16 A gG/gL
50 kA, 500 V AC: fuse 30 A CCMR
50 kA, 415 V AC: PKM0-4
15 kA, 415 V AC: PKM0-6,3
2.5 kA, 400 V AC: FAZ-B16/3
50 kA, 500 V AC: fuse 30 A CCMR
50 kA, 415 V AC: PKM0-4
15 kA, 415 V AC: PKM0-6,3
2.5 kA, 400 V AC: FAZ-B16/3
Control section
Input dataSupply voltage [UAUX]
24 (-15 - +20 %) V DC
Input dataResidual ripple on the input voltage
≦ 5 %
Input dataInput current
70 mA
Input dataCurrent draw inrush
120 mA
Input dataCurrent draw (operation) [UAUX]
50 mA
Electromagnetic compatibility (EMC)
Electrostatic discharge (ESD)applied standard
IEC/EN 61000-4-2, Level 3
Electrostatic discharge (ESD)Air discharge
8 kV
Electrostatic discharge (ESD)Contact discharge
6 kV
Electromagnetic fields (RFI)applied standard
IEC/EN 61000-4-3
Electromagnetic fields (RFI)
800 - 1000 MHz: 10
1.4 - 2 GHz: 10
2.0 - 2.7 GHz: 3 V/m
1.4 - 2 GHz: 10
2.0 - 2.7 GHz: 3 V/m
Radio interference suppression
EN 55011, Class A (emitted interference, line-conducted)
EN 61000-6-3, Class A (emitted interference, radiated)
EN 61000-6-3, Class A (emitted interference, radiated)
Note on use
This product is designed for operation in industrial environments (environment 2). The use in residential environments (environment 1) could cause electrical interference so that addition suppression must be planned.
Burst
2
IEC/EN 61000-4-4, level 3 kV
IEC/EN 61000-4-4, level 3 kV
power pulses (Surge)
1 kV (symmetrical)
2 kV (asymmetrical)
according to IEC/EN 61000-4-5
2 kV (asymmetrical)
according to IEC/EN 61000-4-5
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
10 V
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
6.5 A
Heat dissipation per pole, current-dependent [Pvid]
2.1 W
Equipment heat dissipation, current-dependent [Pvid]
6.3 W
Static heat dissipation, non-current-dependent [Pvs]
1 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-5 °C
Operating ambient temperature max.
+60 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718013])
Kind of motor starter
Direct starter
With short-circuit release
No
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
24 - 24 V
Voltage type for actuating
DC
Rated operation power at AC-3, 230 V, 3-phase
1.5 kW
Rated operation power at AC-3, 400 V
3 kW
Rated power, 460 V, 60 Hz, 3-phase
2.2 kW
Rated power, 575 V, 60 Hz, 3-phase
0 kW
Rated operation current Ie
9 A
Rated operation current at AC-3, 400 V
7 A
Overload release current setting
1.5 - 9 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
0 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
0 A
Rated conditional short-circuit current, type 2, 230 V
0 A
Rated conditional short-circuit current, type 2, 400 V
0 A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
40 °C
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection of main circuit
Spring clamp connection
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Rail mounting possible
Yes
With transformer
No
Number of command positions
0
Suitable for emergency stop
No
Coordination class according to IEC 60947-4-3
Class 1
Number of indicator lights
4
External reset possible
Yes
With fuse
No
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Other
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Width
30 mm
Height
157 mm
Depth
139 mm
Approvals
Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking
UL File No.
E29096
UL Category Control No.
NLDX, NLDX7
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, certified by UL for use in Canada
Specially designed for North America
No
Characteristics
Characteristic curve
Tripping characteristics
CLASS 10
set motor current ≦ 4 A
CLASS 10
set motor current ≦ 4 A
Characteristic curve
Tripping characteristics
CLASS 10A
set motor current > 4 A
CLASS 10A
set motor current > 4 A
Characteristic curve
Current derating
① Single device
② connected in series with 30 mm clearance
③ connected in series without clearance
① Single device
② connected in series with 30 mm clearance
③ connected in series without clearance
Dimensions
| Feature Name | Feature Value |
|---|---|
| Type of motor starter (EF009598) | Direct starter |
| With short-circuit release (EF006691) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 1.5 kW |
| Rated operation power at AC-3, 400 V (EF001364) | 3 kW |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.2 kW |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | 0 kW |
| Rated operation current Ie (EF001443) | 9 A |
| Rated operation current at AC-3, 400 V (EF009602) | 7 A |
| Overload release current setting (EF002336) | 1.5 A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | 0 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | 0 A |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 0 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 0 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Ambient temperature, upper operating limit (EF009603) | 40 °C |
| Temperature compensated overload protection (EF009604) | Yes |
| Release class (EF006668) | CLASS 10 |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Spring clamp connection |
| Suitable for rail mounting (EF003972) | Yes |
| With transformer (EF000278) | No |
| Number of command positions (EF001372) | 0 |
| Suitable for emergency stop (EF001433) | No |
| Coordination class according to IEC 60947-4-3 (EF012390) | Class 1 |
| Number of indicator lights (EF001965) | 4 |
| External reset possible (EF003426) | Yes |
| With fuse (EF006693) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 155 mm |
| Depth (EF000049) | 160 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMS-DO-T-9-SWD EMS-DO-T-9-SWD 170107 EN_170107.pdf | 325 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
