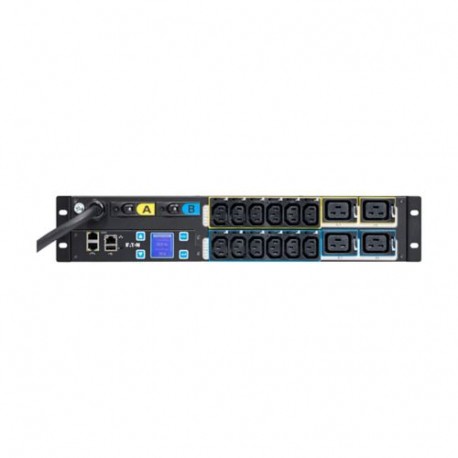

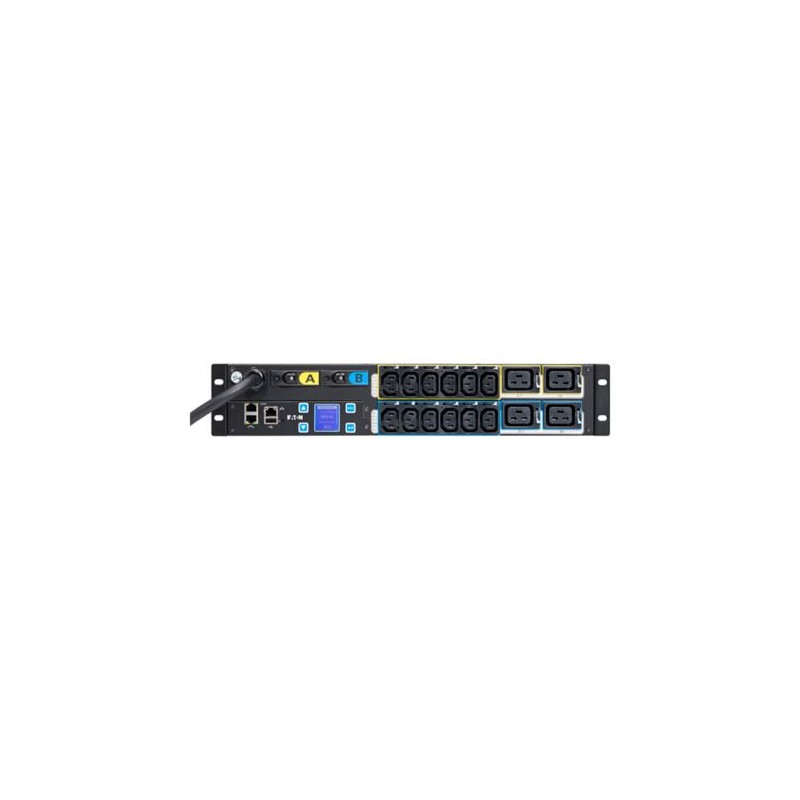

EMIH06 EATON ELECTRIC Eaton Metered Input rack PDU, 2U, Input IEC-60309 32A 1Ph, 7.4 kW max, 32A, 200-240V, ..
EMIH06
EATON-MOELLER
EPDU MI 2U (309 32A 1P)12XC13:4XC19
Eaton G3+ Metered Input rack PDU, 2U, Input IEC-60309 32A 1Ph, 7.4 kW max, 32A, 200-240V, Outlets 12XC13 : 4XC19
Domestic switching devices > Power distribution unit (PDU)
Single-phase UPS up to 11kVA
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
RoHS Compliant
EAC
IEC 60950-1
EN 55024:2010
Product specifications
- Rack PDU
- Mounting accessories
- Network cable
- Configuration cable
- Splitter for daisy-chaining
- Quickstart guide
- Safety Instructions
Ampere Meter
Mounting material
| Feature Name | Feature Value |
|---|---|
| Mounting dimension (standardised) (EF000397) | 482.6 mm (19 inch) |
| Mounting size (EF020751) | 444.5 mm |
| Mounting direction (EF003824) | Horizontal |
| Electrical connection (EF003701) | Connecting cord with plug |
| Type of electric connection (EF003961) | Other |
| Number of phases (EF000351) | 1 |
| Cable length (EF000536) | 3 m |
| Number of socket outlets with earth pin (EF006578) | 16 |
| Number of C13 socket outlets (EF008511) | 12 |
| Number of C19 socket outlets (EF008513) | 4 |
| Number of height units (EF003561) | 2 |
| Length (EF001438) | 127 mm |
| Width (EF000008) | 87.2 mm |
| Height (EF000040) | 444.5 mm |
| Depth (EF000049) | 127 mm |
| Supply voltage (EF000104) | 230 V |
| With surge protection module (EF017068) | No |
| Over voltage category (EF006785) | 2 |
| Mains filter (EF000947) | No |
| Switchable (EF008037) | No |
| With meter (EF016044) | Yes |
| Control function (EF002685) | No |
| SNMP (EF005284) | Yes |
| With display (EF000458) | Yes |
| With LED indication (EF005950) | No |
| With fuse (EF006693) | No |
| Ampere meter (EF006555) | Yes |
| Temperature measurement (EF006229) | No |
| With mounting material (EF006009) | Yes |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON POWER INFRAESTRUCTURE SOLUTIONS PRODUCTS EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMIH06 EMIH06 EMIH06 EN_EMIH06.pdf | 141 Kbytes |
|
