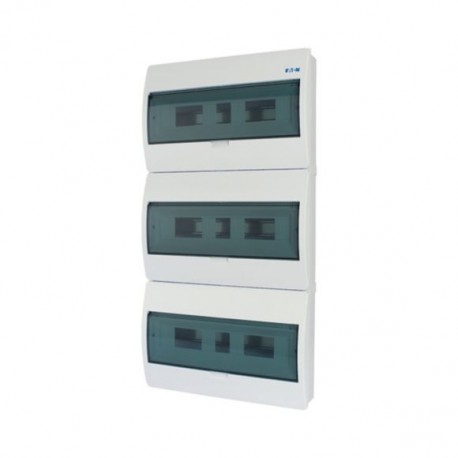

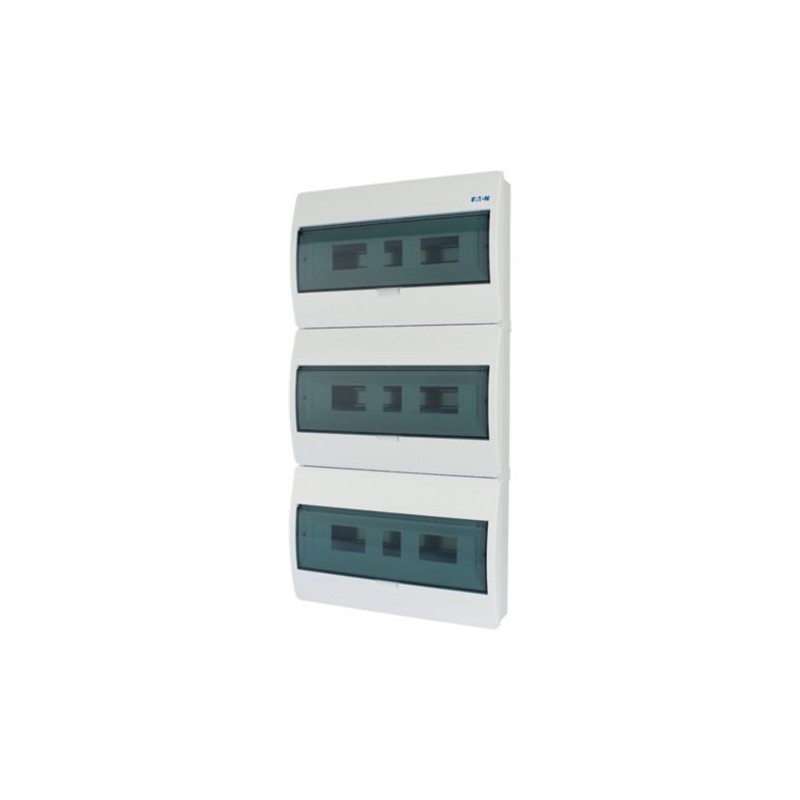

BC-O-3/54-ECO 280351 Y7-280351 EATON ELECTRIC ECO Compact distribution board, surface mounted, 3-rows, 18 MU..
BC-O-3/54-ECO
280351
Y7-280351
EATON-MOELLER
ECO Compact distribution board, surface mounted, 3-rows, 18 MU, IP40
BC-O-3/54-ECO
Eaton xComfort ECO LV systems Final Distribution Boards. ECO Compact distribution board, surface mounted, 3-rows, 18 MU, IP40
ECO Compact distribution board, surface mounted, white RAL9003, IP40 degree of protection to IEC/EN 62208, 18 module units, 3-rows, protection class 2, totally insulated, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, enclosure completely made of ABS, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm, AC 400 V, roHs-compliant, consisting of a plastic base with a top hat DIN-rail made of galvanized sheet steel, finger-proof IP2X neutral and protective conductor terminals , knockout for metric cable entries on top and bottom, top with 46-mm device opening, transparent hinged flap flush with the front and featuring open-position latching, operator only with screw closures, top with sealable bottom, including inscription labels.
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
White
Technical data - electrical
Technical data - mechanical
DIN-rail
Surface mounted (plaster)
IK05 (impact resistance)
N: 3 x (18 mm² x 10 mm²)
Single
Temperature-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Device support rails
Basic device
- IP40
- Protection Class II
- Plastic housing white (RAL 9003)
Installation distribution board
Basic device
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 3 |
| Width in number of modular spacings (EF002950) | 18 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | Yes |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Built-in depth (EF000218) | 70 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 90 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| EMC-version (EF001062) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9003 |
| Degree of protection (IP) (EF005474) | IP40 |
| Height (EF000040) | 105 mm |
| Width (EF000008) | 415 mm |
| Depth (EF000049) | 795 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BC-O-3/54-ECO Y7-280351 280351 ES_281649.pdf | 751 Kbytes |
|
