EBH123TBS8 EATON ELECTRIC SASY IEC busbar support mounting kit for MSW configuration, 1 pole, W x H 600 x 10..
EBH123TBS8
EATON-MOELLER
SIZE 1 HOR FSD-100MM BUS, BOT TER :S- BR

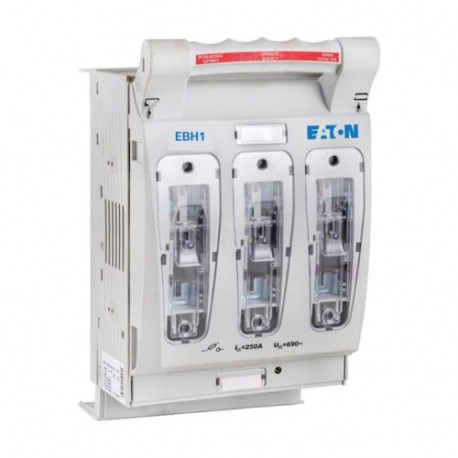

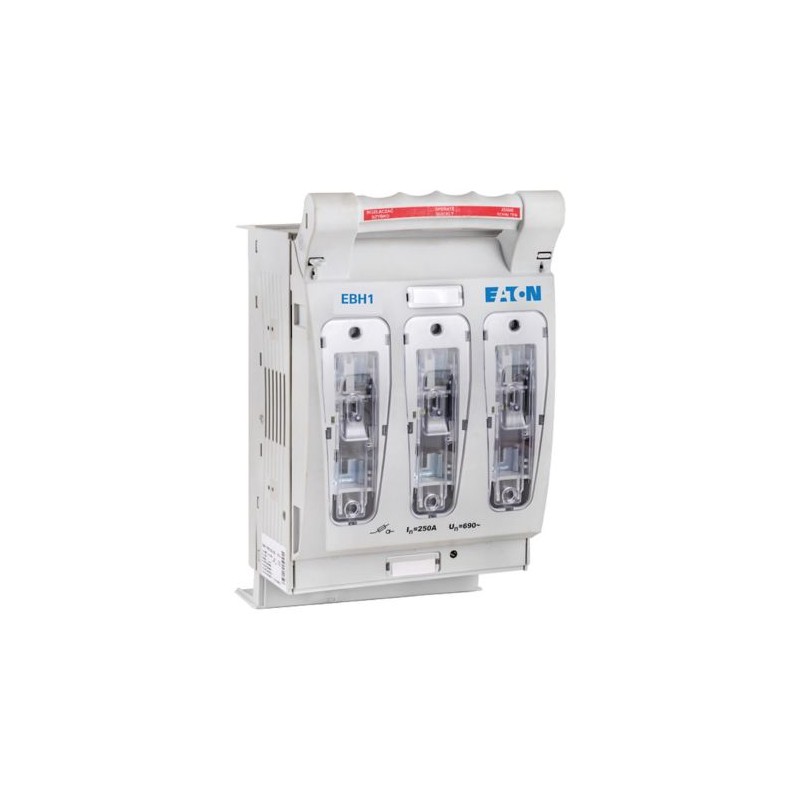

Eaton Bussmann series low voltage NH fuse base, Switch disconnector, low voltage, 250 A, AC 690 V, NH1, AC23B, 3P, IEC, 100mm busbar, bottom cable terminals, for connection of round conductors - S-bridge clamps
Fuse accessory, Switch disconnector, low voltage, 250 A, AC 690 V, NH1, AC23B, 3P, IEC, Horizontal, 100 mm busbar mounting, bottom cable terminals, S-bridge clamps, NH1 fuse-links, IEC 60947-1, IEC 60947-3, IP30
Low-voltage industrial components > Fuse switch disconnector
Bussmann Series Low Voltage fuses and accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC 60947-3
Electrical rating
Product specifications
100 mm busbar mounting
Mounting plate
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0.1 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 0.08 kA |
| Suitable for fuses (EF006692) | NH1 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | No |
| Type of electrical connection of main circuit (EF006819) | Cable clamp |
| Cable entry (EF000537) | Below |
| Equipped with connectors (EF011696) | No |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Cover grip |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf | 23 Mbytes |
|
| PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EBH123TBS8 EBH123TBS8 EBH123TBS8 EN_EBH123TBS8.pdf | 106 Kbytes |
|
