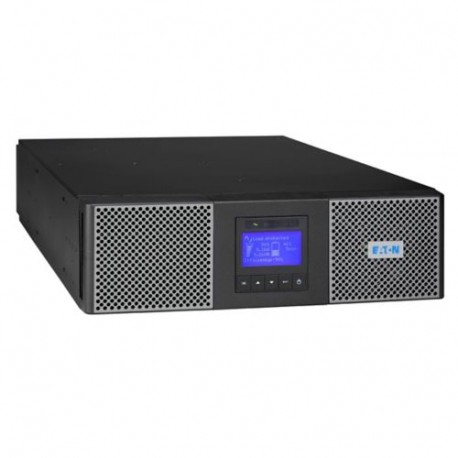

Eaton 9PX 8000i Power Module 9PX8KIPM 9104-22003 EATON ELECTRIC UPS On-Line 8000VA/7200W Module electronic w..
Eaton 9PX 8000i Power Module
9PX8KIPM
9104-22003
EATON-MOELLER
UPS On-Line 8000VA/7200W Module electronic without batteries
Eaton 9PX 8000i Power Module
Eaton 9PX UPS, Power Module, 8 kVA, 7.2 kW, Input: Hardwired, Outputs: Hardwired, Rack/tower, 3U
Data and telecommunication > UPS
Single-phase UPS up to 11kVA
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
TUV
cULus Listed
CSA 22.2
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
Product specifications
- Power Module
- USB cable
- Serial cable
- (2) Supports for tower mounting
- Safety instructions
- Quickstart guide
- ABM & Temperature compensated charging method (user selectable)
- Automatic battery test
- Deep discharge protection
- Automatic recognition of external battery units
- USB port (HID compliant)
- Serial port (RS232)
- Mini terminal block for remote On/Off
- Mini-terminal block for remote power off
- Dry contacts (4 outputs, relay, DB9)
- DB15 for parallel operation
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 100 V |
| Primary frequency (EF009272) | 40 Hz |
| Number of phases primary (EF009275) | 1 |
| Output voltage (EF003933) | 200 V |
| Secondary frequency (EF009273) | 50 Hz |
| Output effective power (EF009897) | 7200 W |
| Output apparent power (EF009898) | 8000 VA |
| USB interface (EF002039) | No |
| With communication interface RS-232 (EF007312) | No |
| Number of phases secondary (EF009274) | 1 |
| SNMP (EF005284) | No |
| Voltage type (EF000187) | AC |
| Height (EF000040) | 440 mm |
| Width (EF000008) | 130 mm |
| Depth (EF000049) | 700 mm |
| Weight (EF000167) | 19 kg |
| Bridging time full load (EF000428) | 0 min |
| Suitable for network-management (EF000432) | No |
| USV- technology (EF005380) | Online |
| Construction type (EF000767) | Free standing model |
| Modular (EF007977) | No |
| Max. voltage distortion output (linear load) (EF009404) | 2 % |
| Output power factor (EF009405) | 0.9 |
| Overall efficiency (EF009406) | 95 % |
| Efficiency in eco-mode (EF009407) | 98 % |
| Potential free switch contact (EF003626) | Yes |
| Auto shut down function (EF009276) | Yes |
| Input connection (EF009726) | Fixed connection |
| Number of output connections fixed connection (EF009730) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON POWER INFRAESTRUCTURE SOLUTIONS PRODUCTS EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| Eaton 9PX 8000i Power Module 9104-22003 9PX8KIPM EN_9PX8KIPM.pdf | 141 Kbytes |
|
