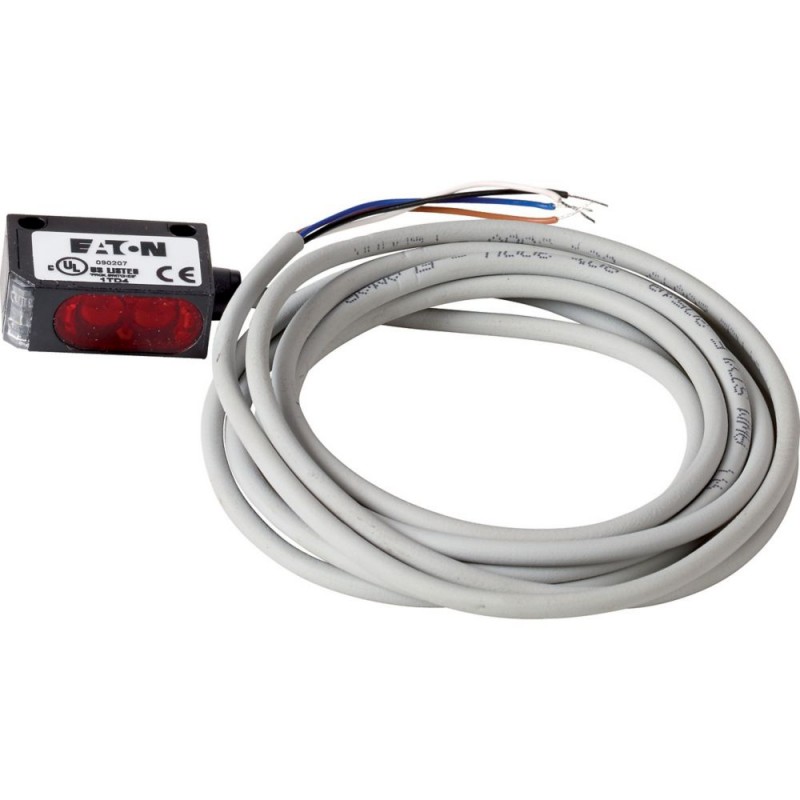

E71-FFDN-CA 100429 EATON ELECTRIC Proximity switch, optical, long range 10cm, 4L, 10-30VDC, NPN, cable

E71-FFDN-CA

100429

EATON-MOELLER

Proximity switch, optical, long range 10cm, 4L, 10-30VDC, NPN, cable

More details


Sensors > Diffuse reflective photoelectric sensor

Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Proximity switch, optical, long range 10cm, 4L, 10-30VDC, NPN, cable
Eaton Catalog No.
E71-FFDN-CA
E71 NanoView series, product features: optical miniature sensor, very minimal size in cube form, IP66_x, status LED for Power und Output, light and dark switching, visible red LED beam enables simple commissioning and adjustment, fixed focus diffuse reflective version to detect very small parts
[

Delivery program

Basic function
Optical sensors
Product range
E71 NanoView Series
For connection of:
2 m connection cable
Design (outer dimensions)
Rectangular (20 x 12 x 32) mm
Rated operational voltage [Ue]
10 - 30 V DC
Rated switching distance [Sn]
100 mm
Description
Beam: focused, forward viewing
Connection
4-wire
Function
Reflected-light beam
Type of light
Visible red
Material
Insulated material
Switching type
NPN
Switching principle
Adjustable bright/dark switching
Information relevant for export to North America

Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking

UL File No. E166051

UL Category Control No. NRKH, NRKH7

CSA File No. UL report applies to both Canada and US

North America Certification UL listed, certified by UL for use in Canada

Max. Voltage Rating 30 V DC

Degree of Protection IEC: IP67; UL/CSA Type: -

,

Technical data

General
Ambient temperature
-25 - +55
Operation [ϑ]
-25 - +55 °C
Storage [ϑ]
-25 - +70 °C
Mechanical shock resistance
30
Shock duration 11 ms g
Degree of Protection
IP67
Vibration
Amplitude 0.5 mm: 10 - 55 Hz.
IEC/EN 60068-2-6
Characteristics
Rated switching distanceRated switching distance [Sn]
100 mm
Rated operational voltage [Ue]
10 - 30 V DC
Maximum load current [Ie]
< 100 mA
Switching Frequency
500 Hz
Response time
1 ms
Switching state display
Yellow LED
Operating voltage display
Green LED
Protective functions
Short-circuit protective device
Protection against polarity reversal
Connection
4-wire
StyleDesign (outer dimensions)
Rectangular (20 x 12 x 32) mm
For connection of:
2 m connection cable
Material
Insulated material
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
,

Technical data ETIM 7.0

Sensors (EG000026) / Light scanner, energetic (EC001821)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Optoelectronic sensor / Light scanner, energetic ([email protected] [AKP252013])
Operating distance
0 - 100 mm
Pre failure notice
No
With time function
No
Max. switching distance
100 mm
Max. output current
100 mA
Reflector included
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Other
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
-
Type of electric connection
Cord
Type of electric connection
Cable
Type of switching output
NPN
Type of switch function
Other
Operation agent-safety class
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Width sensor
12 mm
Diameter sensor
0 mm
Height of sensor
32 mm
Length of sensor
20 mm
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
0 mA
Min. reflector distance
0 mm
Time of reaction
1 ms
Transmission range of the safety field
0 m
Switching frequency
500 Hz
Type of safety acc. IEC 61496-1
-
"Switching voltage of OSSD at state ""high"""
30 V
Voltage type
DC
Voltage type
DC
With monitoring function downstream switching devices
No
Laser protection class
-
Wavelength of the sensor
660 nm
Type of light
Polarity free red light
Light dot
0 mm²
AWG-number
0
Material of cable sheath
-
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP67
Degree of protection (NEMA)
4
Ambient temperature
25 - 55 °C
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
10 - 30 V
,

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking
UL File No.
E166051
UL Category Control No.
NRKH, NRKH7
CSA File No.
UL report applies to both Canada and US
North America Certification
UL listed, certified by UL for use in Canada
Max. Voltage Rating
30 V DC
Degree of Protection
IEC: IP67; UL/CSA Type: -
,

Dimensions

① Sensitivity potentiometer
② Stability LED
③ Power On LED
④ Output LED
]
