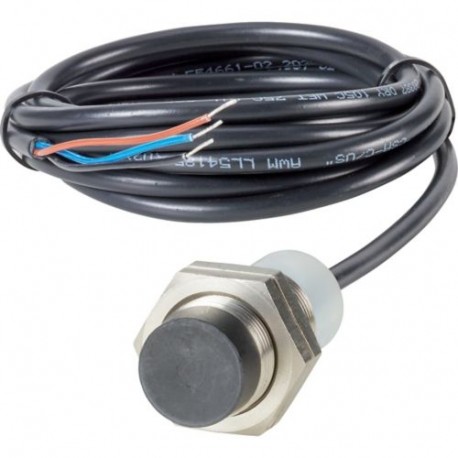

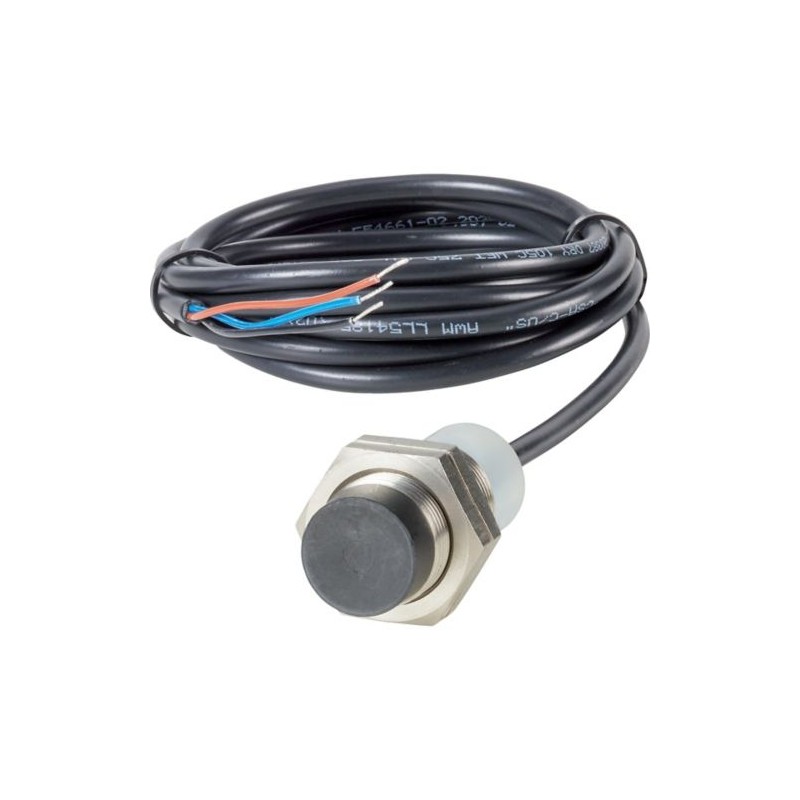

E57PS-18UPC8-C2 197847 EATON ELECTRIC Proximity switch, E57P Performance Short Body Serie, 1 NC, 3-wire, 10 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E57PS-18UPC8-C2 197847 EATON ELECTRIC Proximity switch, E57P Performance Short Body Serie, 1 NC, 3-wire, 10 ..

E57PS-18UPC8-C2

197847

Y7-197847

EATON-MOELLER

Proximity switch, E57P Performance Short Body Serie, 1 NC, 3-wire, 10 – 48 V DC, M18 x 1 mm, Sn= 8 mm, Non-flush, PNP, Stainless steel, 2 m connection cable

E57PS-18UPC8-C2

More details


Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $60.42
Unit price: $60.42

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series E57PS Proximity switch
Catalog Number
197847
Model Code
E57PS-18UPC8-C2
EAN
4015081949540
Product Length/Depth
65.9 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.097 kg
Certifications
IEC/EN 60947-5-2
Certified by UL for use in Canada
CSA-C22.2 No. 14
UL File No.: E166051
UL Listed
UL 508
UL Category Control No.: NRKH, NRKH7

Product specifications

Type
Inductive sensor
Electric connection type
Cable
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
18 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally closed contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
10 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Functions
Short-circuit protection
Voltage type
DC
Mounting method
Non-flush mounting
Material
Stainless steel
Connection type
2 m connection cable
3-wire
Installation type
Not flat
Degree of protection
IP69
NEMA 6P
Interface type
None
LED indicator
Status indication of Switching state: Yellow LED
Switch function type
Breaker contact
Load current
1 - 300 mA (Ie)
Shock resistance
30 g, Shock duration 11 ms, Half-Sinusoidal
Switching frequency
1200 Hz
Width sensor
0 mm
Product category
E57P Performance series
Switching output type
PNP
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
10 V
Rated switching distance (Sn) - max
8 mm
Repeatability
3 %
Sensor height
0 mm
Sensor length
65.9 mm
Supply voltage - max
30 V
Supply voltage - min
10 V
Switching hysteresis of Sn
20 %
Voltage drop (Ud)
2.5 V

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SENSORS EN.pdf 27 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
E57PS-18UPC8-C2 E57PS-18UPC8-C2 197847 DE_197745.pdf 262 Kbytes E57PS-18UPC8-C2 E57PS-18UPC8-C2 197847 DE_197745.pdf
