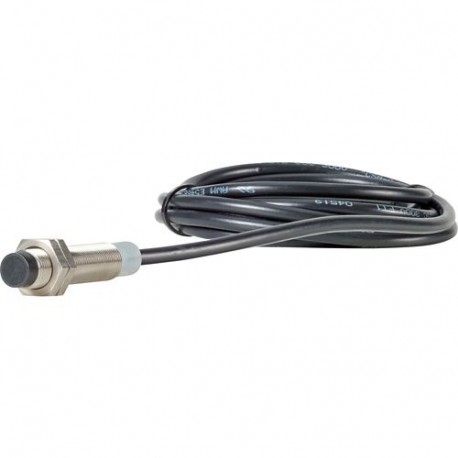

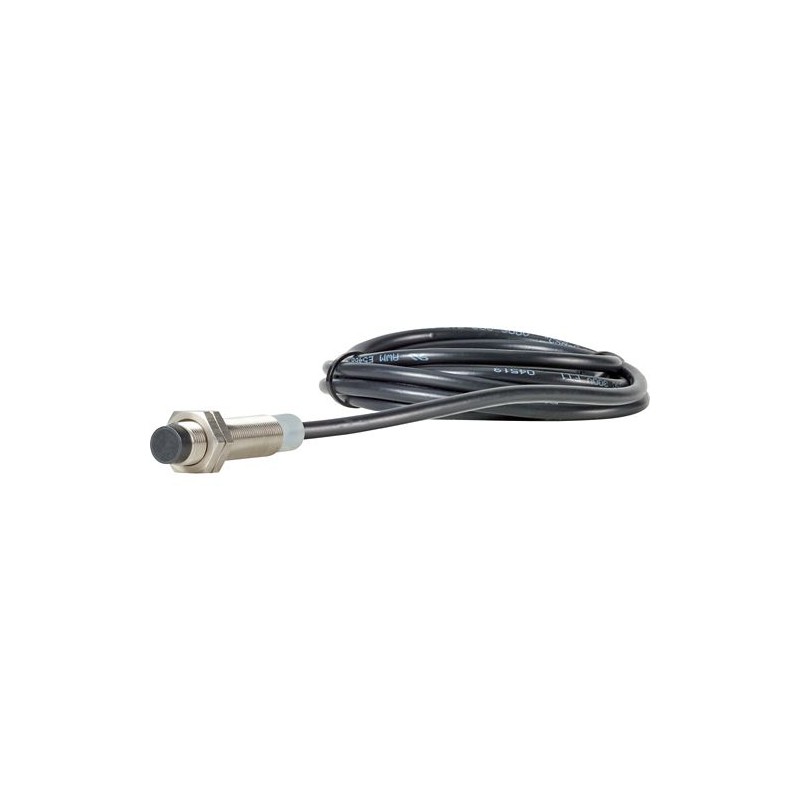

E57P-12UPC4-C2 197783 Y7-197783 EATON ELECTRIC Proximity switch, E57P Performance Serie, 1 NC, 3-wire, 10 – ..
E57P-12UPC4-C2
197783
Y7-197783
EATON-MOELLER
Proximity switch, E57P Performance Serie, 1 NC, 3-wire, 10 – 48 V DC, M12 x 1 mm, Sn= 4 mm, Non-flush, PNP, Stainless steel, 2 m connection cable
E57P-12UPC4-C2
Eaton Moeller series E57P Performance series, Proximity switch, 10 - 30 V DC, d=12 mm, 1 N/C, 3-wire, 2 m connection cable, Sn= 4 mm, Non-flush mounting, PNP, Stainless steel
Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton Moeller® series E57P Proximity switch |
| Catalog Number | 197783 |
| Model Code | E57P-12UPC4-C2 |
| EAN | 4015081948901 |
| Product Length/Depth | 64.1 mm |
| Product Height | 12 mm |
| Product Width | 12 mm |
| Product Weight | 0.084 kg |
| Certifications | UL Category Control No.: NRKH, NRKH7 UL Listed IEC/EN 60947-5-2 CSA-C22.2 No. 14 UL File No.: E166051 Certified by UL for use in Canada UL 508 |
Product specifications
| Type | Inductive sensor |
| Electric connection type | Cable |
| Enclosure material finishing | Other |
| Actuation type | Metallic Target |
| Enclosure material | Metal |
| Enclosure type | Cylinder, screw-thread |
| Category (EN 954-1) | B |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Safety performance level (EN ISO 13849-1) | None |
| SIL (IEC 61508) | None |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -40 °C |
| Diameter sensor | 12 mm |
| Number of contact energized outputs with signalling function | 0 |
| Number of contacts (normally closed contacts) | 1 |
| Number of outputs (protected contact energized) | 0 |
| Number of outputs (protected semiconductor) | 0 |
| Number of outputs (semiconductor with signaling function) | 1 |
| Operational current (Ib) in the switched state at 24 V DC | 10 A |
| Functions | Short-circuit protection |
| Voltage type | DC |
| Mounting method | Non-flush mounting |
| Material | Stainless steel |
| Connection type | 3-wire 2 m connection cable |
| Installation type | Not flat |
| Degree of protection | NEMA 6P IP69 |
| Interface type | None |
| LED indicator | Status indication of Switching state: Yellow LED |
| Switch function type | Breaker contact |
| Load current | 1 - 300 mA (Ie) |
| Shock resistance | 30 g, Shock duration 11 ms, Half-Sinusoidal |
| Switching frequency | 2000 Hz |
| Product category | E57P Performance series |
| Switching output type | PNP |
| Temperature drift of sn | 10 % |
| Rated control supply voltage (Us) at DC - max | 30 V |
| Rated control supply voltage (Us) at DC - min | 10 V |
| Rated switching distance (Sn) - max | 4 mm |
| Repeatability | 3 % |
| Sensor length | 64.1 mm |
| Supply voltage - max | 30 V |
| Supply voltage - min | 10 V |
| Switching hysteresis of Sn | 20 % |
| Voltage drop (Ud) | 2.5 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SENSORS EN.pdf | 30 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| E57P-12UPC4-C2 Y7-197783 197783 DE_197745.pdf | 262 Kbytes |
|
