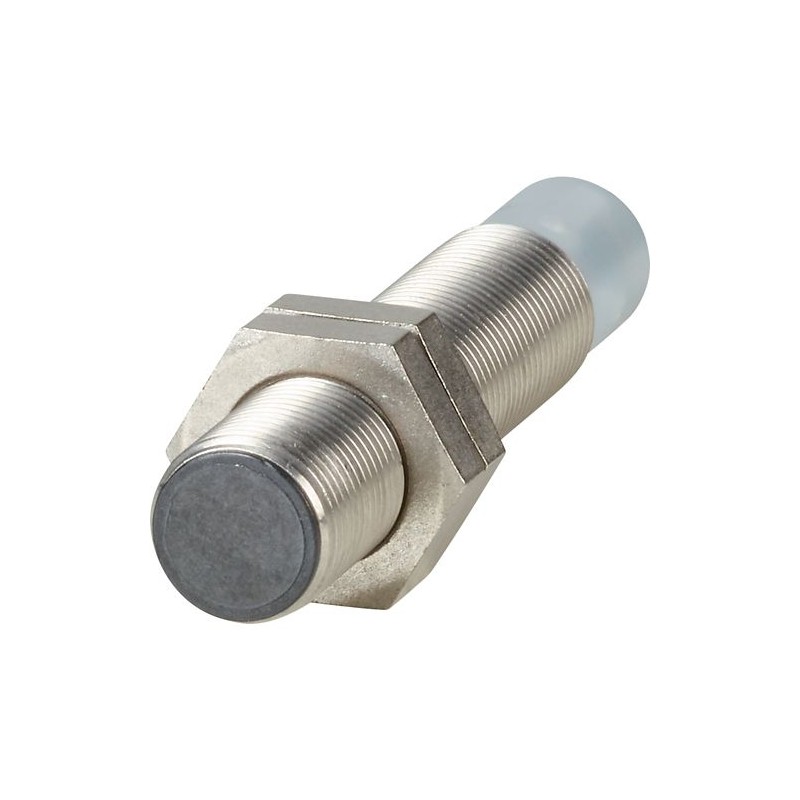

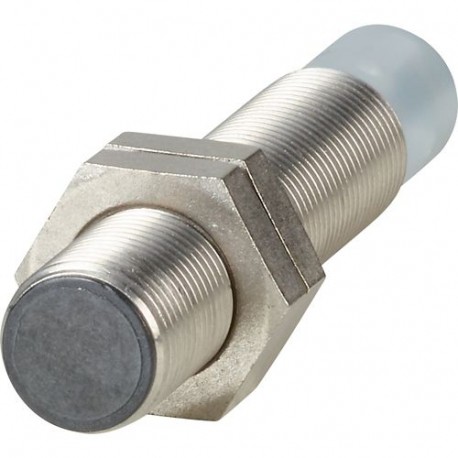

E57P-12SPC2-C2 197775 Y7-197775 EATON ELECTRIC Proximity switch, E57P Performance Serie, 1 NC, 3-wire, 10 – ..
E57P-12SPC2-C2
197775
Y7-197775
EATON-MOELLER
Proximity switch, E57P Performance Serie, 1 NC, 3-wire, 10 – 48 V DC, M12 x 1 mm, Sn= 2 mm, Flush, PNP, Stainless steel, 2 m connection cable
E57P-12SPC2-C2
Eaton Moeller series E57P Performance series, Proximity switch, 10 - 30 V DC, d=12 mm, 1 N/C, 2 m connection cable, 3-wire, Sn= 2 mm, Flush mounting, PNP, Stainless steel
Sensors > Inductive proximity switch
Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton Moeller® series E57P Proximity switch |
| Catalog Number | 197775 |
| Model Code | E57P-12SPC2-C2 |
| EAN | 4015081948826 |
| Product Length/Depth | 64.1 mm |
| Product Height | 12 mm |
| Product Width | 12 mm |
| Product Weight | 0.084 kg |
| Certifications | UL Listed UL File No.: E166051 UL 508 UL Category Control No.: NRKH, NRKH7 Certified by UL for use in Canada IEC/EN 60947-5-2 CSA-C22.2 No. 14 |
Product specifications
| Type | Inductive sensor |
| Electric connection type | Cable |
| Enclosure material finishing | Other |
| Actuation type | Metallic Target |
| Enclosure material | Metal |
| Enclosure type | Cylinder, screw-thread |
| Category (EN 954-1) | B |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Safety performance level (EN ISO 13849-1) | None |
| SIL (IEC 61508) | None |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -40 °C |
| Diameter sensor | 12 mm |
| Number of contact energized outputs with signalling function | 0 |
| Number of contacts (normally closed contacts) | 1 |
| Number of outputs (protected contact energized) | 0 |
| Number of outputs (protected semiconductor) | 0 |
| Number of outputs (semiconductor with signaling function) | 1 |
| Operational current (Ib) in the switched state at 24 V DC | 10 A |
| Functions | Short-circuit protection |
| Voltage type | DC |
| Mounting method | Flush mounting |
| Material | Stainless steel |
| Connection type | 2 m connection cable 3-wire |
| Installation type | Concise |
| Degree of protection | NEMA 6P IP69 |
| Interface type | None |
| LED indicator | Status indication of Switching state: Yellow LED |
| Switch function type | Breaker contact |
| Load current | 1 - 300 mA (Ie) |
| Shock resistance | 30 g, Shock duration 11 ms, Half-Sinusoidal |
| Switching frequency | 2000 Hz |
| Product category | E57P Performance series |
| Switching output type | PNP |
| Temperature drift of sn | 10 % |
| Rated control supply voltage (Us) at DC - max | 30 V |
| Rated control supply voltage (Us) at DC - min | 10 V |
| Rated switching distance (Sn) - max | 2 mm |
| Repeatability | 1 % |
| Sensor length | 64.1 mm |
| Supply voltage - max | 30 V |
| Supply voltage - min | 10 V |
| Switching hysteresis of Sn | 20 % |
| Voltage drop (Ud) | 2.5 V |
| Feature Name | Feature Value |
|---|---|
| Width sensor (EF007094) | 0 mm |
| Height of sensor (EF007283) | 0 mm |
| Length of sensor (EF007334) | 64.1 mm |
| Diameter sensor (EF007111) | 12 mm |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Switching distance (EF003647) | 2 mm |
| Suitable for safety functions (EF001597) | No |
| Type of switch function (EF003963) | Breaker contact |
| Type of switching output (EF003962) | PNP |
| Type of electric connection (EF003961) | Cable |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Type of actuation (EF006949) | Metallic Target |
| Type of interface (EF006977) | None |
| Type of interface for safety communication (EF003956) | None |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Coating housing (EF001601) | Other |
| Cascadable (EF000507) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Max. output current at protected output (EF004035) | 0 mA |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 10 V |
| Voltage type (EF000187) | DC |
| Switching frequency (EF003587) | 2000 Hz |
| With monitoring function downstream switching devices (EF004052) | No |
| Housing material (EF001596) | Metal |
| Compression-resistant (EF007106) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | 6P |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SENSORS EN.pdf | 30 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| E57P-12SPC2-C2 Y7-197775 197775 DE_197745.pdf | 262 Kbytes |
|
