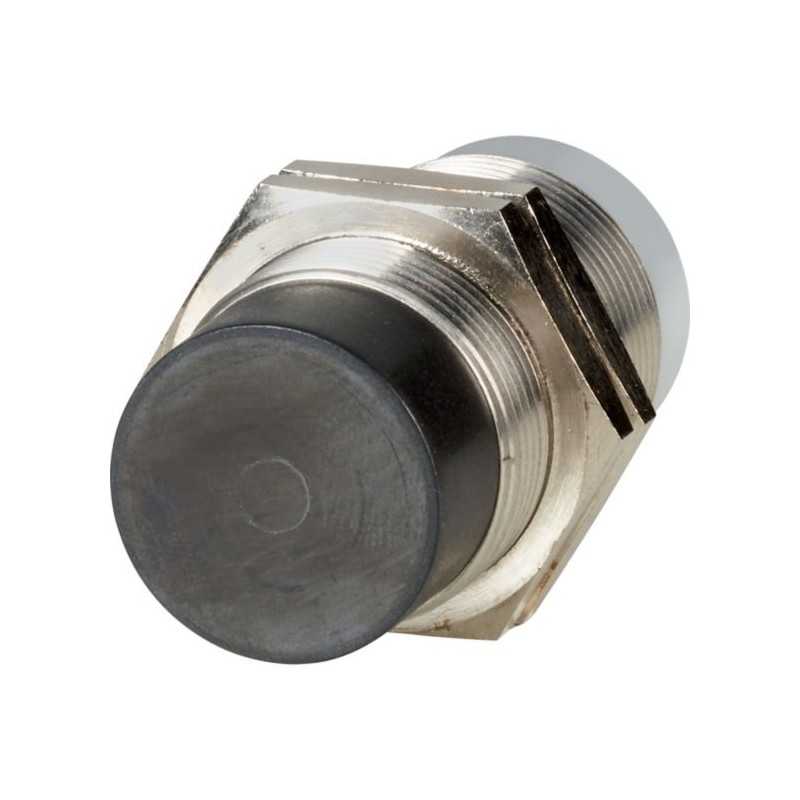

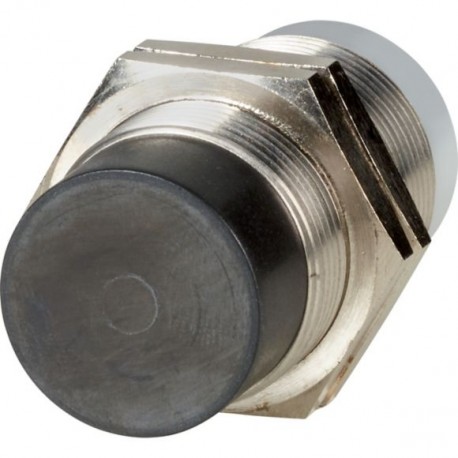

E57G-30UPN15-Q 197768 EATON ELECTRIC Inductive Proximity Sensor E57G 3-wire, 30 mm diameter, 10-30VDC, sensi..
E57G-30UPN15-Q
197768
EATON-MOELLER
Inductive Proximity Sensor E57G 3-wire, 30 mm diameter, 10-30VDC, sensing range 15mm, unshielded, PNP, 4-pin micro DC connector
E57G-30UPN15-Q
Proximity switch, E57G General Purpose Serie, 1 N/O, 3-wire, 10 - 30 V DC, M30 x 1.5 mm, Sn= 15 mm, Non-flush, PNP, Stainless steel, Plug-in connection M12 x 1
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Proximity switch, E57G General Purpose Serie, 1 N/O, 3-wire, 10 - 30 V DC, M30 x 1.5 mm, Sn= 15 mm, Non-flush, PNP, Stainless steel, Plug-in connection M12 x 1
General specifications
Product name
Eaton Moeller® series E57G Proximity switch
Part no.
E57G-30UPN15-Q
EAN
4015081948758
Product Length/Depth
70.9 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.114 kilogram
Certifications
UL 508
UL File No.: E166051
UL Category Control No.: NRKH, NRKH7
CSA-C22.2 No. 14
UL Listed
IEC/EN 60947-5-2
Certified by UL for use in Canada
UL File No.: E166051
UL Category Control No.: NRKH, NRKH7
CSA-C22.2 No. 14
UL Listed
IEC/EN 60947-5-2
Certified by UL for use in Canada
Product Tradename
E57G
Product Type
Proximity switch
Product Sub Type
None
Product Specification Details
Actuation type
Metallic Target
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Category (EN 954-1)
B
Connection type
Plug-in connection M12 x 1
3-wire
3-wire
Degree of protection
IP67
NEMA 1
NEMA 1
Diameter sensor
30 mm
Diameter sensor [7EF007111]
mm
Electric connection type
Connector M12
Enclosure material
Metal
Enclosure material finishing
Other
Enclosure type
Cylinder, screw-thread
Explosion safety category for dust
None
Explosion safety category for gas
None
Functions
Short-circuit protection
Height of sensor [7EF007283]
mm
Installation type
Not flat
Interface type
None
LED indicator
Status indication of Switching state: Yellow LED
Length of sensor [7EF007334]
mm
Load current
Max. 100 mA (Ie)
Material
Stainless steel
Max. output current at protected output [7EF004035]
mA
Mounting method
Non-flush mounting
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
10 A
Output current at protected output - max
0 mA
Product category
E57G General purpose series
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
48 V
Rated control supply voltage (Us) at DC - min
6 V
Rated control supply voltage Us at AC 50HZ [7EF003978]
V
Rated control supply voltage Us at AC 60HZ [7EF003979]
V
Rated control supply voltage Us at DC [7EF003980]
V
Rated switching distance (Sn) - max
15 mm
Repeatability
3 %
Safety performance level (EN ISO 13849-1)
None
Sensor height
0 mm
Sensor length
70.9 mm
Shock resistance
30 g, Shock duration 11 ms, Half-Sinusoidal
SIL (IEC 61508)
None
Supply voltage - max
48 V
Supply voltage - min
10 V
Supply voltage [7EF004127]
V
Switch function type
Normally open contact
Switching distance [7EF003647]
mm
Switching frequency
500 Hz
Switching frequency [7EF003587]
Hz
Switching hysteresis of Sn
20 %
Switching output type
PNP
Temperature drift of sn
10 %
Type
Inductive sensor
Voltage drop (Ud)
2.5 V
Voltage type
DC
Width sensor
0 mm
Width sensor [7EF007094]
mm
Technical data ETIM 8.0
Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Safety-related proximity switch / Safety-related inductive proximity switch ([email protected] [AKE630014])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
70.9 mm
Diameter sensor
30 mm
Mechanical mounting condition for sensor
Not flat
Switching distance
15 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
PNP
Type of electric connection
Connector M12
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
10 - 48 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
6 - 48 V
Voltage type
DC
Switching frequency
500 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
Degree of protection (NEMA)
1
