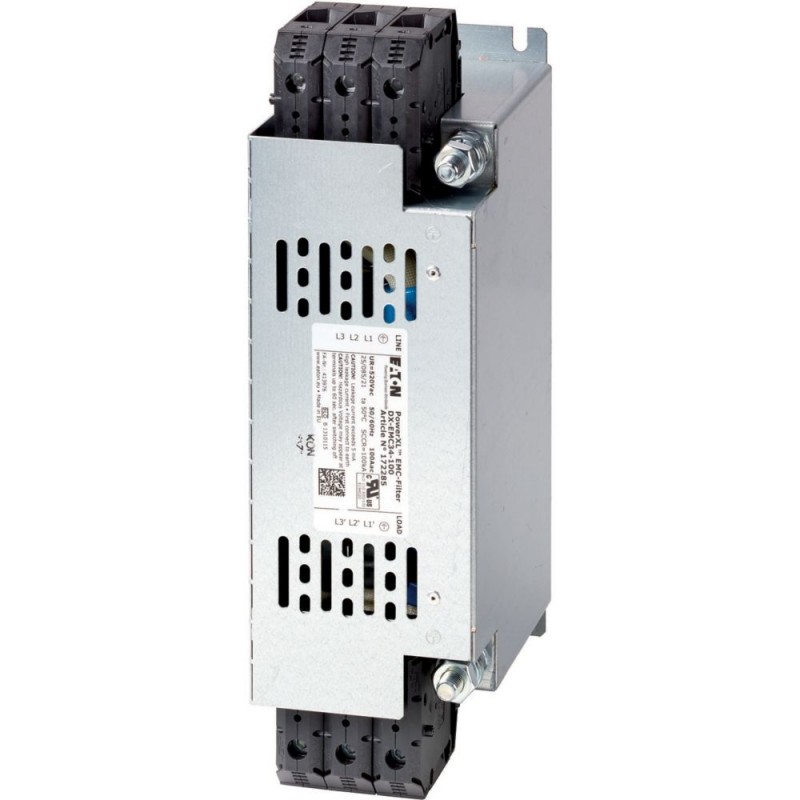

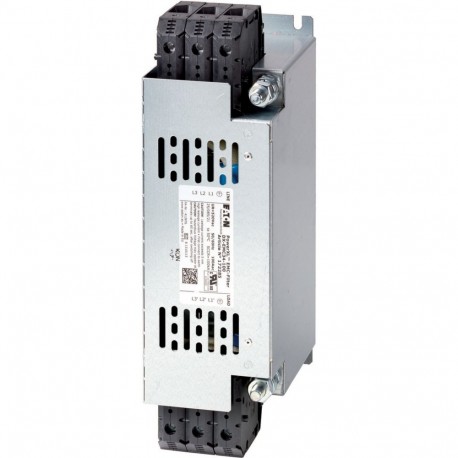

DX-EMC34-400 172289 Y7-172289 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 400A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-EMC34-400 172289 Y7-172289 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 400A

DX-EMC34-400

172289

Y7-172289

EATON-MOELLER

EMC filter for Frequency Converter; three-Phase; 520V; 400A

DX-EMC34-400

Eaton DX Radio interference suppression filter, three-phase, ULN= max. 520 + 10% V, 400 A, For use with: DA1

Radio interference suppression filter, Description: three-phase, Mains voltage (50/60Hz): ULN= max. 520 + 10% V, Rated operational current: Ie= 400 A, For use with: DA1, Degree of Protection: IP00, Connection type: Flat copper bar, PE stud, Weight: m 12,9 kg, Notes: Separate mounting, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $1,309.28
Unit price: $1,309.28
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton DX Radio interference suppression filter
Catalog Number
172289
Model Code
DX-EMC34-400
EAN
4015081688494
Product Length/Depth
285 mm
Product Height
380 mm
Product Width
185 mm
Product Weight
12.9 kg
Certifications
EN 50178
UL File No.: E192040
UL 1283
Certified by UL for use in Canada
IEC/EN 61800-3
UL

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DA1
DG1
Accessory/spare part type
Filter
Altitude
Max. 2000 m
At higher altitudes observe derating
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Number of phases
3
Mains voltage tolerance
Max. 520 V (+10 %)
Connection type
Flat copper bar, PE stud
Degree of protection
IP20
IP00
Mounting method
Separate mounting
Rated operational current (Ie) - max
400 A
Rated operational current for specified heat dissipation (In)
400 A
Static heat dissipation, non-current-dependent Pvs
0 W

ETIM for 172289 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Filter
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-EMC34-400 Y7-172289 172289 EN_184503.pdf 2 Mbytes DX-EMC34-400 Y7-172289 172289 EN_184503.pdf
