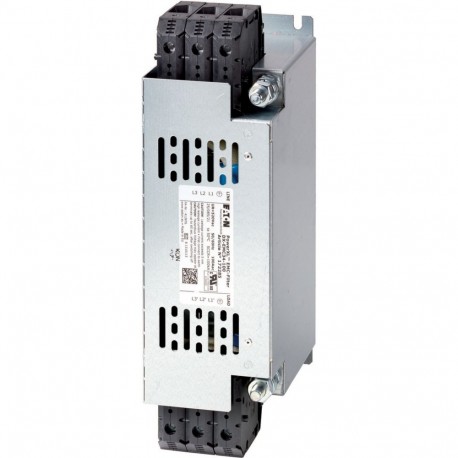

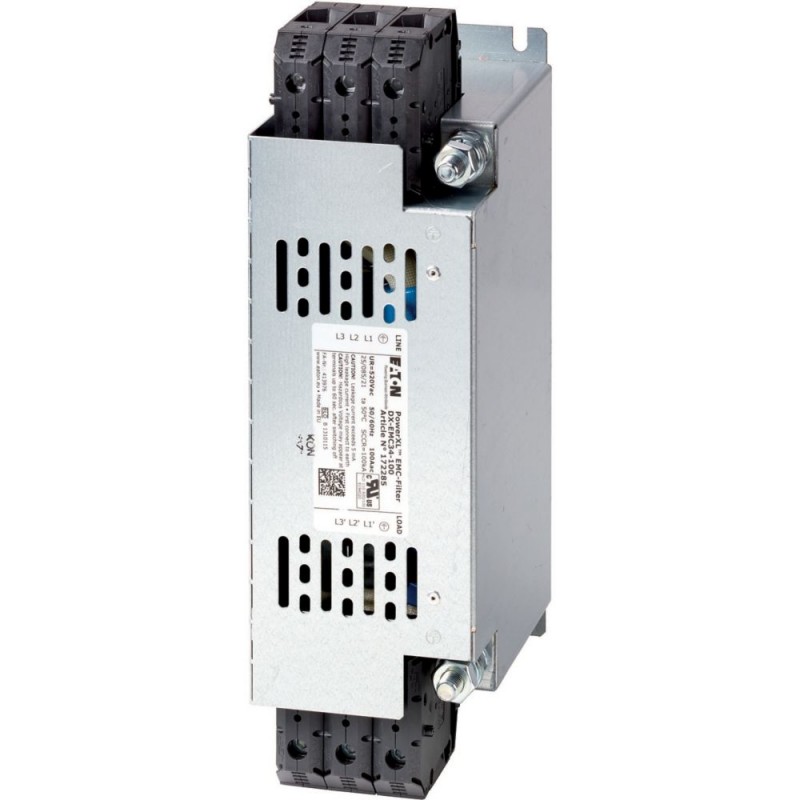

DX-EMC34-250-L 174614 Y7-174614 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 250A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-EMC34-250-L 174614 Y7-174614 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 250A

DX-EMC34-250-L

174614

Y7-174614

EATON-MOELLER

EMC filter for Frequency Converter; three-Phase; 520V; 250A

DX-EMC34-250-L

Radio interference suppression filter, three-phase, low leakage current, ULN= max. 520 + 10% V, 250 A, For use with: DA1, DG1

Radio interference suppression filter, Description: three-phase, low leakage current, Mains voltage (50/60Hz): ULN= max. 520 + 10% V, Rated operational current: Ie= 250 A, For use with: DA1, DG1, Degree of Protection: IP20, Connection type: Screw terminal, PE stud, Weight: m 12,2 kg, Notes: Separate mounting, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $965.61
Unit price: $965.61
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Radio interference suppression filter, three-phase, low leakage current, ULN= max. 520 + 10% V, 250 A, For use with: DA1, DG1
Radio interference suppression filter, Description: three-phase, low leakage current, Mains voltage (50/60Hz): ULN= max. 520 + 10% V, Rated operational current: Ie= 250 A, For use with: DA1, DG1, Degree of Protection: IP20, Connection type: Screw terminal, PE stud, Weight: m 12,2 kg, Notes: Separate mounting, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

General specifications
Product name
Eaton DX Radio interference suppression filter - low
Part no.
DX-EMC34-250-L
EAN
4015081710690
Product Length/Depth
220 millimetre
Product height
525 millimetre
Product width
155 millimetre
Product weight
13.2 kilogram
Certifications
Certified by UL for use in Canada
EN 50178
UL 1283
UL File No.: E192040
UL
IEC/EN 61800-3
UL
Product Tradename
DX
Product Type
Accessory
Product Sub Type
Radio interference suppression filter - low
Catalog Notes
low leakage current
Features & Functions
Number of phases
3
General information
Accessory/spare part type
Filter
Degree of protection
IP20
Product Category
Accessories
Used with
DA1
DG2
Climatic environmental conditions
Altitude
Max. 2000 m
At higher altitudes observe derating
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Connection
Connection type
Screw terminal, PE stud
Electrical rating
Rated operational current (Ie) - max
250 A
Design verification
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
250 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter (accessories) (ecl@ss13-27-02-31-92 [AFR303008])
Type of accessory/spare part
Filter
Accessory
Yes
Spare part
No

ETIM for 174614 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Filter
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-EMC34-250-L Y7-174614 174614 EN_174614.pdf 111 Kbytes DX-EMC34-250-L Y7-174614 174614 EN_174614.pdf
