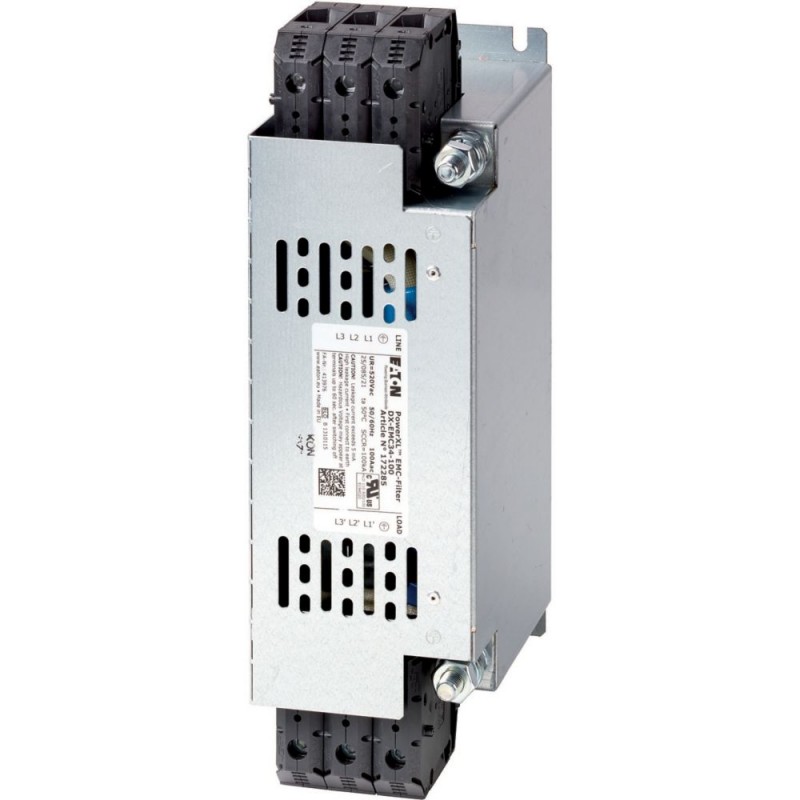

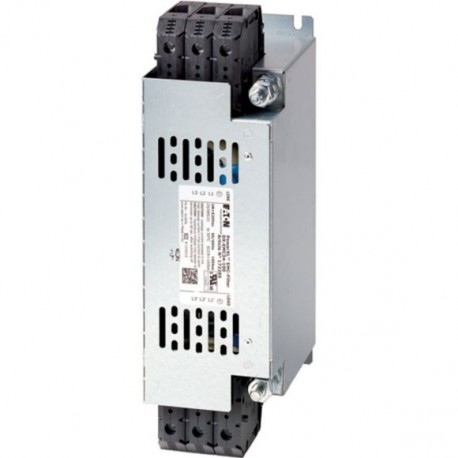

DX-EMC34-130 172286 Y7-172286 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 130A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-EMC34-130 172286 Y7-172286 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 130A

DX-EMC34-130

172286

Y7-172286

EATON-MOELLER

EMC filter for Frequency Converter; three-Phase; 520V; 130A

DX-EMC34-130

Eaton DX Radio interference suppression filter, three-phase, ULN= max. 520 + 10% V, 130 A, For use with: DA1

Radio interference suppression filter, Description: three-phase, Mains voltage (50/60Hz): ULN= max. 520 + 10% V, Rated operational current: Ie= 130 A, For use with: DA1, Degree of Protection: IP20, Connection type: Screw terminal, PE stud, Weight: m 5,6 kg, Notes: Separate mounting, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $479.61
Unit price: $479.61
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton DX Radio interference suppression filter
Catalog Number
172286
Model Code
DX-EMC34-130
EAN
4015081688463
Product Length/Depth
151 mm
Product Height
323 mm
Product Width
97 mm
Product Weight
5.6 kg
Certifications
Certified by UL for use in Canada
UL 1283
EN 50178
UL File No.: E192040
IEC/EN 61800-3
UL

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DA1
DG1
Accessory/spare part type
Filter
Altitude
At higher altitudes observe derating
Max. 2000 m
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
90 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of phases
3
Mains voltage tolerance
Max. 520 V (+10 %)
Connection type
Screw terminal, PE stud
Degree of protection
IP20
Mounting method
Separate mounting
Rated operational current (Ie) - max
130 A
Rated operational current for specified heat dissipation (In)
130 A
Static heat dissipation, non-current-dependent Pvs
0 W

ETIM for 172286 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Filter
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-EMC34-130 Y7-172286 172286 EN_184503.pdf 2 Mbytes DX-EMC34-130 Y7-172286 172286 EN_184503.pdf
