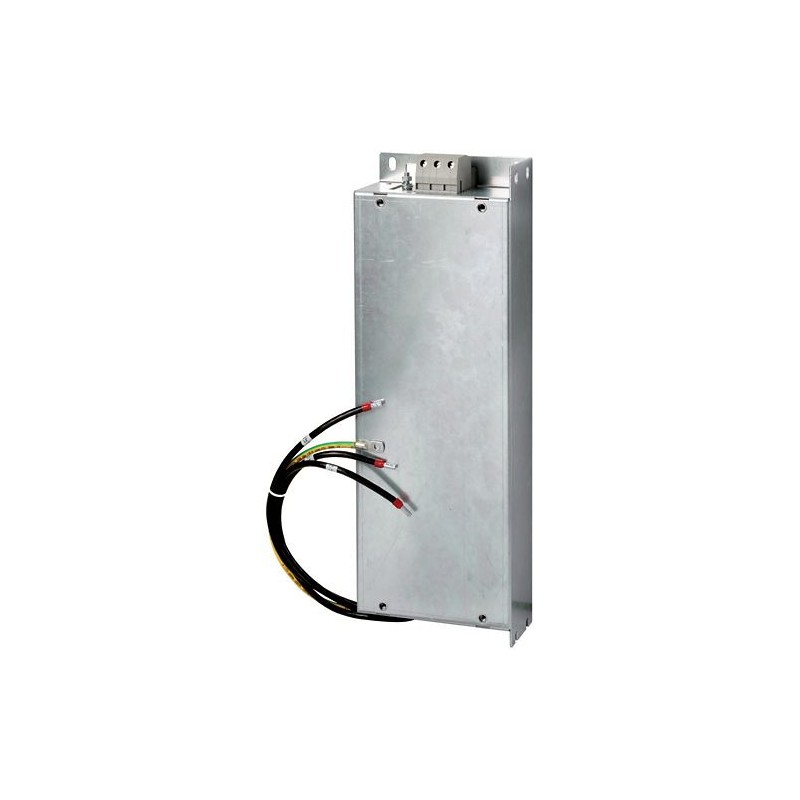

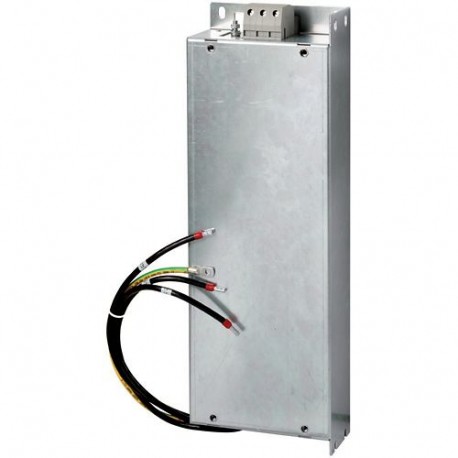

DX-EMC34-075-FS5-L 174610 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 75A
DX-EMC34-075-FS5-L
174610
EATON-MOELLER
EMC filter for Frequency Converter; three-Phase; 520V; 75A
DX-EMC34-075-FS5-L
EMC filter for frequency converter, 3-phase 520 V, 75 A
Power XL Frequency Converters
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲EL-Nummer (Norway)
4110111
EMC filter for frequency converter, 3-phase 520 V, 75 A
Radio-frequency interference filter, Description: three-phase, low leakage current, Mains voltage (50/60 Hz): ULN= max. 520 + 10 % V, Rated operating current: Ie= 75 A, For use with: DA1, IP rating: IP00, IP20 when connected, Connection type: connection terminal, PE stud, prefabricated cables, weight: m 10 kg, Notes: base-mounted filter, side-mounting filter, Standards and regulations: EN 50178, IEC 61800-3, EN 61800-3 incl. A11
Delivery program
Description
three-phase
low leakage current
low leakage current
Mains voltage (50/60Hz) [ULN]
max. 520 + 10% V
Rated operational current [Ie]
75 A
For use with
DA1
Degree of Protection
IP00
IP20 when connected
IP20 when connected
Connection type
Connection terminal, PE stud, prefabricated cables
Weight [m]
10 kg
Notes
Base-mounted filter, side-mounting filter
Technical data
General
Standards
EN 50178, IEC 61800-3, EN 61800-3 incl. A11
Environmental conditionsAltitude
Up to 2000 m a.s.l.; observe derating at higher altitudes m
Degree of Protection
IP00
IP20 when connected
IP20 when connected
Design verification as per IEC/EN 61439
Technical data for design verification
Degree of Protection
IP20
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Dimensions
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| DX-EMC34-075-FS5-L DX-EMC34-075-FS5-L 174610 EN_174610.pdf | 183 Kbytes |
|
