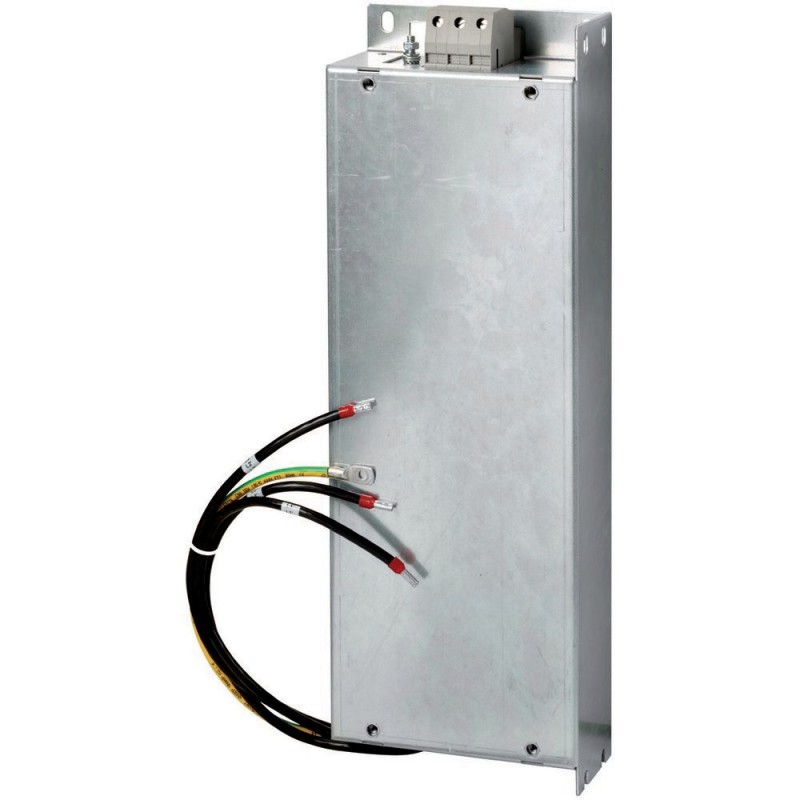

DX-EMC34-048-FS4 172283 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 48A View larger
