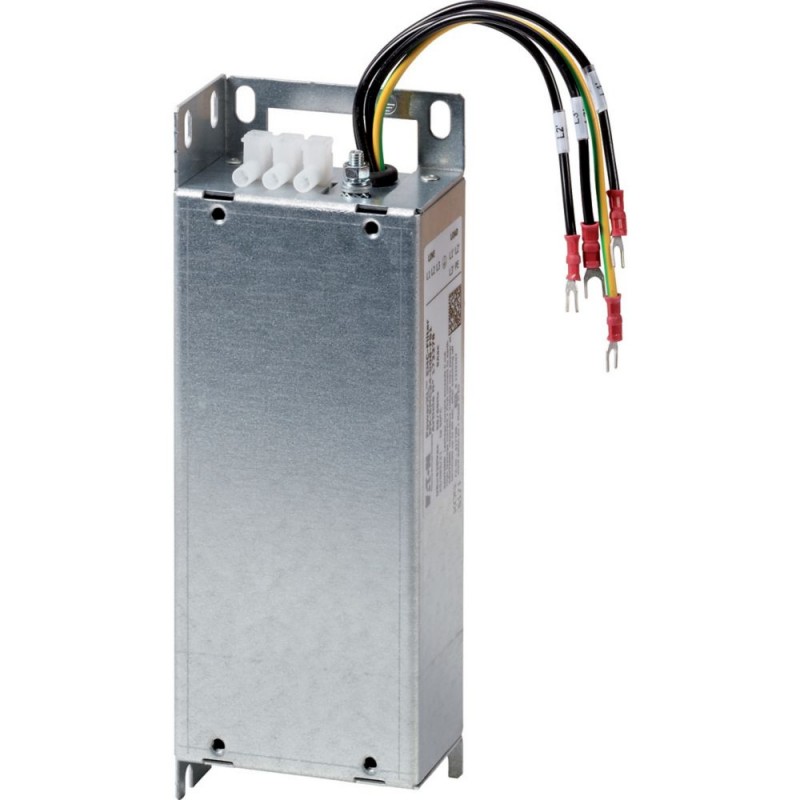

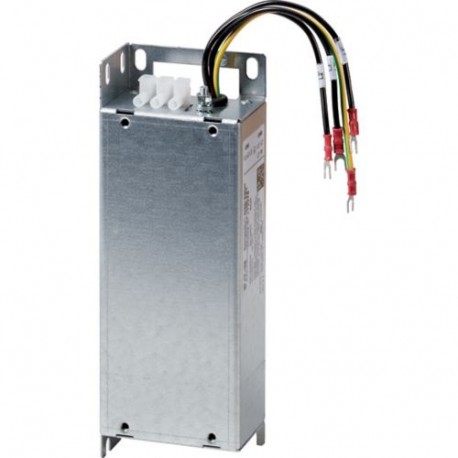

DX-EMC34-011-FS2 172279 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 12A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-EMC34-011-FS2 172279 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 12A

DX-EMC34-011-FS2

172279

EATON-MOELLER

EMC filter for Frequency Converter; three-Phase; 520V; 12A

DX-EMC34-011-FS2

Radio interference suppression filter, three-phase, ULN= max. 520 + 10% V, 11 A, For use with: DC1, DA1

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $140.77
Unit price: $140.77

Quantity Price
1+$140.77
2+$122.34
3+$118.37
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Radio interference suppression filter, three-phase, ULN= max. 520 + 10% V, 11 A, For use with: DC1, DA1
Radio interference suppression filter, Description: three-phase, Mains voltage (50/60Hz): ULN= max. 520 + 10% V, Rated operational current: Ie= 11 A, For use with: DC1, DA1, Degree of Protection: IP00, IP20 when connected, Connection type: Connection terminal, PE stud, prefabricated cables, Weight: m 1,5 kg, Notes: Base-mounted filter, side-mounting filter, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

General specifications
Product name
Eaton DX Radio interference suppression filter
Part no.
DX-EMC34-011-FS2
EAN
4015081688401
Product Length/Depth
122 millimetre
Product height
285 millimetre
Product width
70 millimetre
Product weight
1.8 kilogram
Certifications
EN 50178
IEC/EN 61800-3
Product Tradename
DX
Product Type
Accessory
Product Sub Type
Radio interference suppression filter
Features & Functions
Number of phases
3
General information
Accessory/spare part type
Filter
Degree of protection
IP20
IP00
IP20, when connected
Product Category
Accessories
Climatic environmental conditions
Altitude
Max. 2000 m
At higher altitudes observe derating
Connection
Connection type
Connection terminal, PE stud, prefabricated cables
Electrical rating
Rated operational current (Ie) - max
11 A
Design verification
Rated operational current for specified heat dissipation (In)
11 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter (accessories) (ecl@ss13-27-02-31-92 [AFR303008])
Type of accessory/spare part
Filter
Accessory
Yes
Spare part
No
