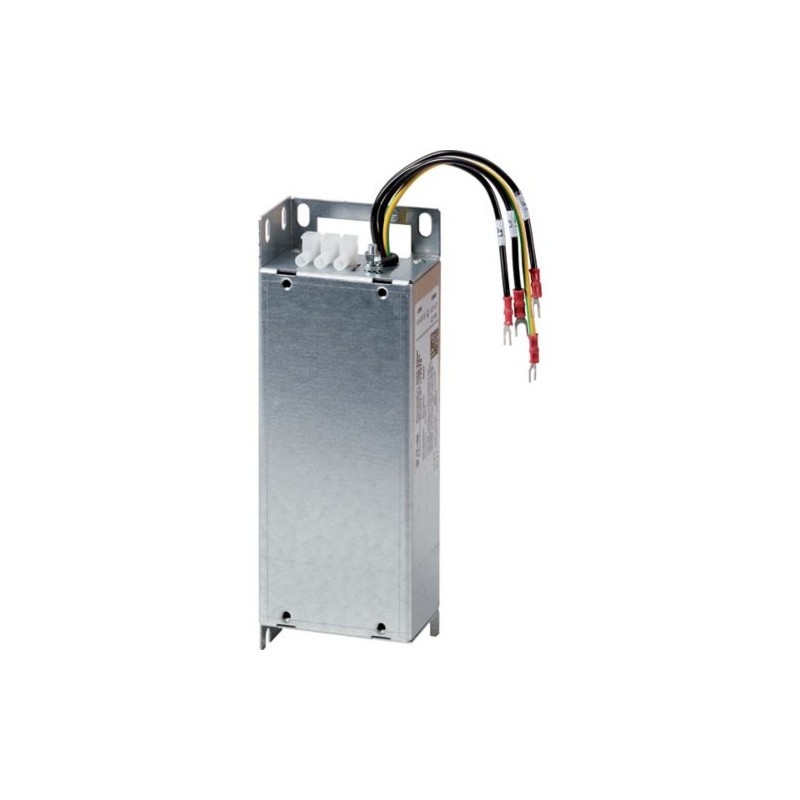

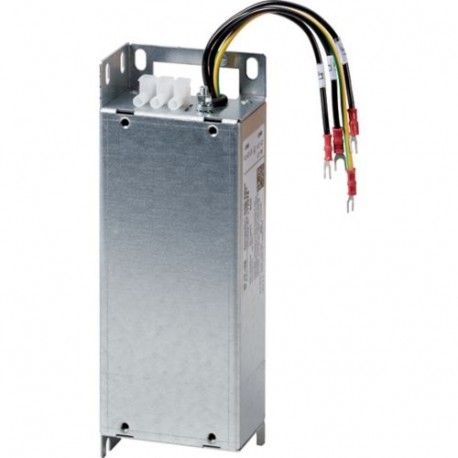

DX-EMC34-008-FS1-L 174604 Y7-174604 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 8A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-EMC34-008-FS1-L 174604 Y7-174604 EATON ELECTRIC EMC filter for Frequency Converter three-Phase 520V 8A

DX-EMC34-008-FS1-L

174604

Y7-174604

EATON-MOELLER

EMC filter for Frequency Converter; three-Phase; 520V; 8A

DX-EMC34-008-FS1-L

Eaton DX EMC filter for frequency converter, 3-phase 520 V, 8 A

Radio-frequency interference filter, Description: three-phase, low leakage current, Mains voltage (50/60 Hz): ULN= max. 520 + 10 % V, Rated operating current: Ie= 8 A, For use with: DE1, DE11, DC1, IP rating: IP00, IP20 when connected, Connection type: connection terminal, PE stud, prefabricated cables, weight: m 1.3 kg, Notes: base-mounted filter, side-mounting filter, Standards and regulations: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $163.40
Unit price: $163.40
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton DX Radio interference suppression filter - low
Catalog Number
174604
Model Code
DX-EMC34-008-FS1-L
EAN
4015081710591
Product Length/Depth
122 mm
Product Height
285 mm
Product Width
70 mm
Product Weight
1.3 kg
Certifications
EN 50178
IEC/EN 61800-3
Catalog Notes
low leakage current

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DA1
DC1
DB1
DE1
DG1
DM1
Accessory/spare part type
Filter
Altitude
At higher altitudes observe derating
Max. 2000 m
Number of phases
3
Mains voltage tolerance
Max. 520 V (+10 %)
Connection type
Connection terminal, PE stud, prefabricated cables
Degree of protection
IP20
IP00
IP20, when connected
Mounting method
Side mounting
Base mounting
Rated operational current (Ie) - max
8 A
Rated operational current for specified heat dissipation (In)
8 A
Static heat dissipation, non-current-dependent Pvs
0 W

ETIM for 174604 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Filter
Accessory (EF013236) Yes
Spare part (EF013237) No
