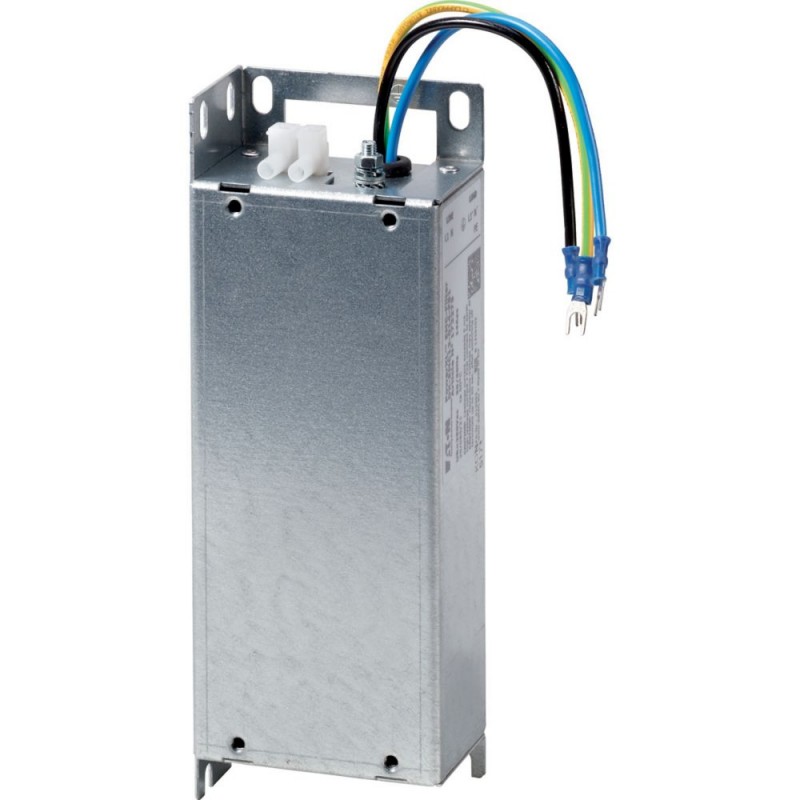

DX-EMC12-031-FS3 172277 Y7-172277 EATON ELECTRIC EMC filter for Frequency Converter single Phase 230V 31A

DX-EMC12-031-FS3

172277

Y7-172277

EATON-MOELLER

EMC filter for Frequency Converter; single Phase; 230V; 31A

DX-EMC12-031-FS3

Eaton DX Radio interference suppression filter, Single-phase, ULN= max. 250 + 10% V, 31 A, For use with: DC1

Radio interference suppression filter, Description: Single-phase, Mains voltage (50/60Hz): ULN= max. 250 + 10% V, Rated operational current: Ie= 31 A, For use with: DC1, Degree of Protection: IP00, IP20 when connected, Connection type: Connection terminal, PE stud, prefabricated cables, Weight: m 2,5 kg, Notes: Base-mounted filter, side-mounting filter, Standards: EN 50178, IEC 61800-3, EN 61800-3 incl. A11

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton DX Radio interference suppression filter
Catalog Number
172277
Model Code
DX-EMC12-031-FS3
EAN
4015081688395
Product Length/Depth
155 mm
Product Height
310 mm
Product Width
60 mm
Product Weight
2.5 kg
Certifications
EN 50178
IEC/EN 61800-3

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DC1
DE1
DM1
Accessory/spare part type
Filter
Altitude
Max. 2000 m
At higher altitudes observe derating
Number of phases
1
Mains voltage tolerance
Max. 250 V (+10 %)
Connection type
Connection terminal, PE stud, prefabricated cables
Degree of protection
IP20
IP00
IP20, when connected
Mounting method
Base mounting
Side mounting
Rated operational current (Ie) - max
31 A
Rated operational current for specified heat dissipation (In)
31 A
Static heat dissipation, non-current-dependent Pvs
0 W

ETIM for 172277 Low-voltage industrial controls and switchgear (EC002025)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Filter
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-EMC12-031-FS3 Y7-172277 172277 DE_172284.pdf 2 Mbytes DX-EMC12-031-FS3 Y7-172277 172277 DE_172284.pdf
