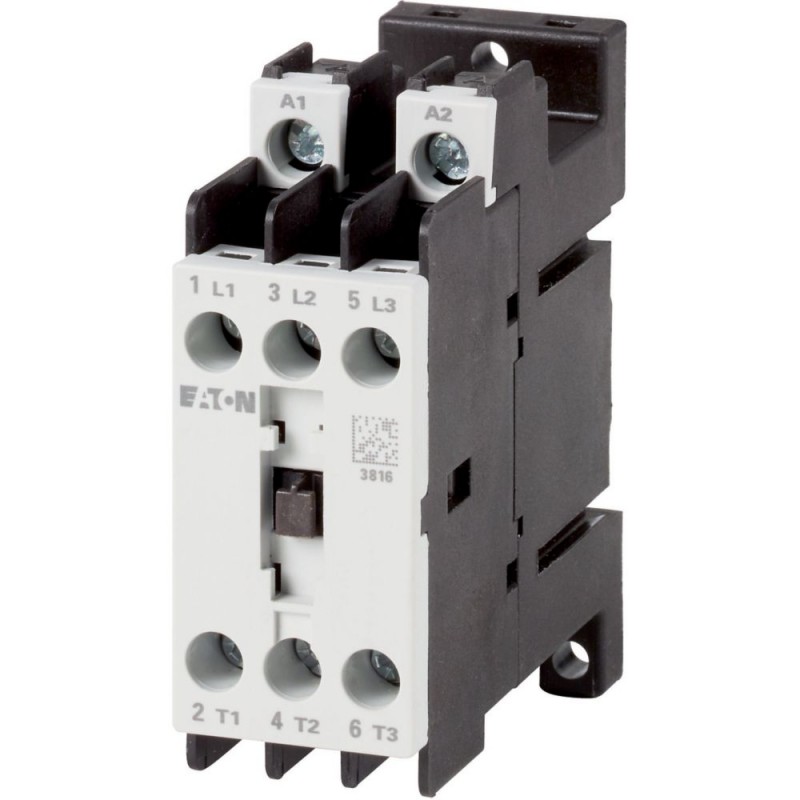

DILMT7(RDC24) 190977 Y7-190977 EATON ELECTRIC Power Contactor close Connection screw 3-pole 7 AC-3 RDC24
DILMT7(RDC24)
190977
Y7-190977
EATON-MOELLER
Power Contactor close; Connection screw; 3-pole; 7; AC-3; RDC24
DILMT7(RDC24)
Eaton Moeller® series DILMT Contactor, 3 pole, 380 V 400 V: 3 kW, 24 V DC, DC operation, Screw terminals
Contactor, Application: Contactors for Motors, Contactors up to 95 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 7 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 20 A, Max. rating for three-phase motors , 50 - 60 Hz AC-3 220 V 230 V: P= 2.2 kW, 380 V 400 V: P= 3 kW, Can be combined with auxiliary contact: DILT-XHI.., Voltage AC/DC: DC operation
Low-voltage industrial components > Power contactor, AC switching
Contactors up to 170A
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
GB14048
IEC/EN 60947
Features & Functions
General
AC-3: Normal AC induction motors: starting, switch off during running
AC-4: Normal AC induction motors: starting, plugging, reversing, inching
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
2, Terminal screw, Control circuit cables, Pozidriv screwdriver
Electrical rating
Magnet system
Contacts
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 7 A |
| Rated operation power at AC-3, 400 V (EF001364) | 3 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 0 A |
| Rated operation power at AC-4, 400 V (EF008496) | 0 kW |
| Rated operation power NEMA (EF011960) | 0 kW |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Modular version (EF001126) | No |
| Width (EF000008) | 27 mm |
| Height (EF000040) | 70.1 mm |
| Depth (EF000049) | 77.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DILMT7(RDC24) Y7-190977 190977 ES_190993.pdf | 1 Mbytes |
|
