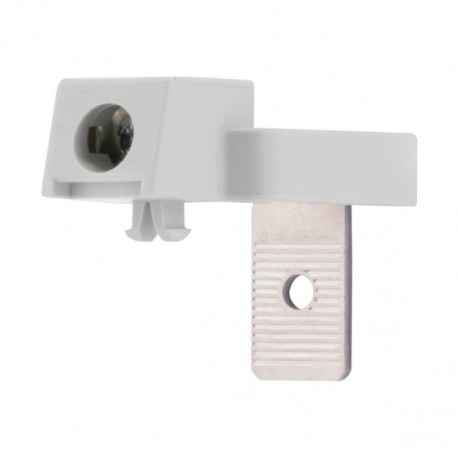

DILM150-XZK 104486 Y7-104486 EATON ELECTRIC Additional terminal, for DILM80-150 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DILM150-XZK 104486 Y7-104486 EATON ELECTRIC Additional terminal, for DILM80-150

DILM150-XZK

104486

Y7-104486

EATON-MOELLER

10

Additional terminal, for DILM80-150

DILM150-XZK

Eaton Moeller® series DILM Additional terminal, for DILM80-150

Voltage indication ledge simply implemented

More details


Low-voltage industrial components > Distribution terminal block

Contactors up to 170A

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $57.71
Unit price: $5.77
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series DILM additional terminal
Catalog Number
104486
Model Code
DILM150-XZK
EAN
4015081043033
Product Length/Depth
19 mm
Product Height
12 mm
Product Width
14 mm
Product Weight
0.008 kg
Certifications
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
CE
CSA
CSA Class No.: 2411-03, 2411-04
UL 508
CSA-C22.2 No. 14-05
UL
IEC/EN 60947-4-1
Catalog Notes
Can be retrofitted on every main terminal of the contactor.

Features & Functions

Number Of Poles
Two-pole

General

Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection
Connection option: maximum 2 x 4 mm² solid maximum 2 x 2.5 mm² flexible with ferrule

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
4 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 104486 Low-voltage industrial controls and switchgear (EC000276)
Feature Name Feature Value
Core cross section (EF000018) 4 mm²
Number of poles (EF001391) 2
With seal head (EF000277) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM150-XZK Y7-104486 104486 EN_104486.pdf 109 Kbytes DILM150-XZK Y7-104486 104486 EN_104486.pdf
