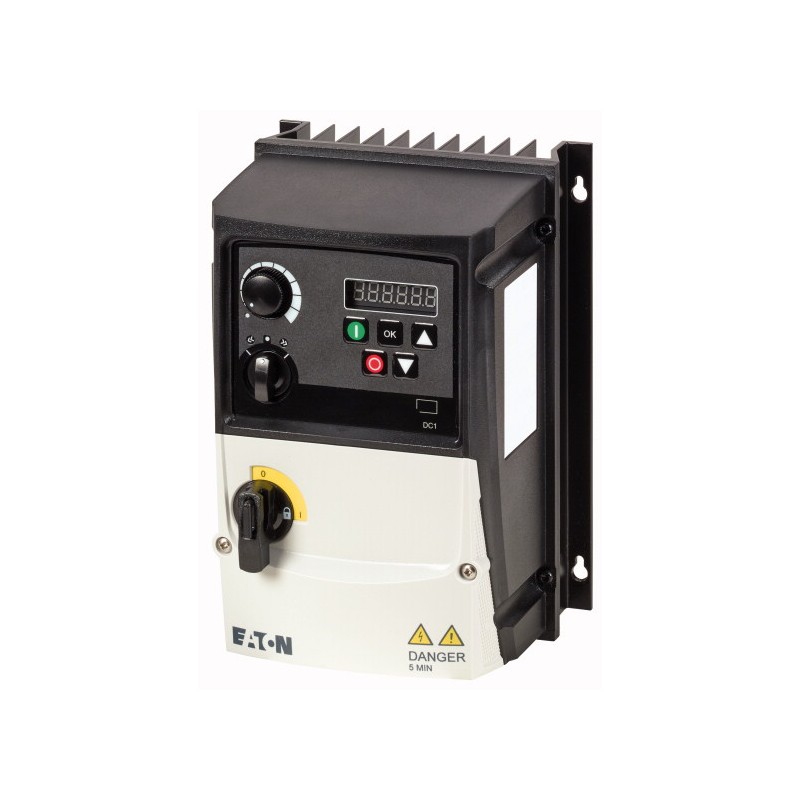

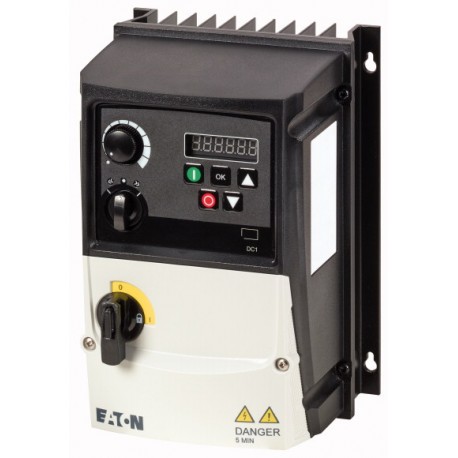

DC1-S17D0NN-A6SOE1 199384 EATON ELECTRIC Variable frequency drive, 115 V AC, single-phase, 7 A, 0.37 kW, IP6..
DC1-S17D0NN-A6SOE1
199384
EATON-MOELLER
Variable frequency drive, 115 V AC, single-phase, 7 A, 0.37 kW, IP66/NEMA 4X, 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, FS1
Power XL Frequency Converters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Variable frequency drive, 115 V AC, single-phase, 7 A, 0.37 kW, IP66/NEMA 4X, 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, FS1
Variable frequency drive, Part group reference (e.g. DIL): DC1, Rated operational voltage: Ue = 115 V AC, single-phase, Output voltage with Ve: U2 = 115 V AC, single-phase, Mains voltage (50/60Hz): ULN = 110 (-10%) - 115 (+10%) V, Rated operational current At 150% overload: Ie = 7 A, Note: Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C, Note: Overload cycle for 60 s every 600 s, Assigned motor rating Note: For AC motors with internal and external ventilation with 50/60 Hz without additional start capacitor, Overload cycle for 60 s every 600 s, at 115 V, 50 Hz, Assigned motor rating 150 % Overload: P = 0.37 kW, 150 % Overload: IM = 7 A, Assigned motor rating Note: at 110 - 120 V, 60 Hz, Assigned motor rating 150 % Overload: P = 0.5 HP, Assigned motor rating 150 % Overload: IM = 5.8 A, Degree of Protection: IP66/NEMA 4X, Interface/field bus (built-in): OP-Bus (RS485)/Modbus RTU, CANopen®, Fieldbus connection (optional): SmartWire-DT, Fitted with: 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, Frame size: FS1, Standards: General requirements: IEC/EN 61800-2, EMV requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
Delivery program
Product range
Variable frequency drives
Part group reference (e.g. DIL)
DC1
Rated operational voltage [Ue]
115 V AC, single-phase
Output voltage with Ve[U2]
115 V AC, single-phase
Mains voltage (50/60Hz) [ULN]
110 (-10%) - 115 (+10%) V
Rated operational current [Ie]
At 150% overload [Ie]
7 A
Note
Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C
Assigned motor rating
Note
For AC motors with internal and external ventilation with 50/60 Hz without additional start capacitor
Note
Overload cycle for 60 s every 600 s
Note
at 115 V, 50 Hz
150 % Overload [P]
0.37 kW
150 % Overload [IM]
7 A
Note
at 110 - 120 V, 60 Hz
150 % Overload [P]
0.5 HP
150 % Overload [IM]
5.8 A
Degree of Protection
IP66/NEMA 4X
Interface/field bus (built-in)
OP-Bus (RS485)/Modbus RTU, CANopen®
Fieldbus connection (optional)
SmartWire-DT
Fitted with
7-digital display assembly
Local controls
Additional PCB protection
UV resistant
Local controls
Additional PCB protection
UV resistant
Parameterization
Keypad
Fieldbus
drivesConnect
drivesConnect mobile (App)
Fieldbus
drivesConnect
drivesConnect mobile (App)
Frame size
FS1
Connection to SmartWire-DT
no
Technical data
General
Standards
General requirements: IEC/EN 61800-2
EMV requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
EMV requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
Certifications
CE, UL, cUL, RCM, Ukr SEPRO, EAC
Production quality
RoHS, ISO 9001
Climatic proofing [ρw]
< 95%, average relative humidity (RH), non-condensing, non-corrosive %
Air quality
3C3, 3S3
Ambient temperatureOperating ambient temperature min.
-20 °C
Ambient temperatureOperating ambient temperature max.
+40 °C
Ambient temperature
operation (with 150 % overload)
Ambient temperatureStorage [ϑ]
-40 - +60 °C
Mounting position
Vertical
Altitude
0–2000 m above sea level
Above 1000 m: 1% derating for every 100 m
max. 4000 m without UL m
Above 1000 m: 1% derating for every 100 m
max. 4000 m without UL m
Degree of Protection
IP66/NEMA 4X
Protection against direct contact
BGV A3 (VBG4, finger- and back-of-hand proof)
Main circuit
SupplyRated operational voltage [Ue]
115 V AC, single-phase
SupplyMains voltage (50/60Hz) [ULN]
110 (-10%) - 115 (+10%) V
SupplyInput current (150% overload) [ILN]
8.5 A
SupplySystem configuration
AC supply systems with earthed center point
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
48 - 62 Hz
SupplyMains switch-on frequency
Maximum of one time every 30 seconds
Power sectionFunction
Variable frequency drive with internal DC link and IGBT inverter
Power sectionOverload current (150% overload) [IL]
10.5 A
Power sectionmax. starting current (High Overload) [IH]
175 %
Power sectionOutput voltage with Ve[U2]
115 V AC, single-phase
Power sectionOutput Frequency [f2]
0 - 50/60 (max. 500) Hz
Power sectionSwitching frequency [fPWM]
8
adjustable 4 - 32 (audible) kHz
adjustable 4 - 32 (audible) kHz
Power sectionOperation Mode
U/f control
Speed control with slip compensation
sensorless vector control (SLV)
PM motors
Synchronous reluctance motors
BLDC motors
Speed control with slip compensation
sensorless vector control (SLV)
PM motors
Synchronous reluctance motors
BLDC motors
Power sectionFrequency resolution (setpoint value) [Δf]
0.1 Hz
Power sectionRated operational currentAt 150% overload [Ie]
7 A
Power sectionNote
Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C
Power sectionPower lossHeat dissipation at rated operational current Ie=150 % [PV]
11.1 W
Power sectionEfficiency [η]
97 %
Power sectionMaximum leakage current to ground (PE) without motor [IPE]
2.49 mA
Power sectionFitted with
7-digital display assembly
Local controls
Additional PCB protection
UV resistant
Local controls
Additional PCB protection
UV resistant
Power sectionFrame size
FS1
Motor feederNote
For AC motors with internal and external ventilation with 50/60 Hz without additional start capacitor
Motor feederNote
Overload cycle for 60 s every 600 s
Motor feederNote
at 115 V, 50 Hz
Motor feeder150 % Overload [P]
0.37 kW
Motor feederNote
at 110 - 120 V, 60 Hz
Motor feeder150 % Overload [P]
0.5 HP
Motor feedermaximum permissible cable length [I]
screened: 50
screened, with motor choke: 100
unscreened: 75
unscreened, with motor choke: 150 m
screened, with motor choke: 100
unscreened: 75
unscreened, with motor choke: 150 m
Motor feederBraking functionDC braking torque
Max. 100% of rated operational current Ie, variable
Control section
Reference voltage [Us]
10 V DC (max. 10 mA) V
Analog inputs
2, parameterizable, 0 - 10 V DC, 0/4 - 20 mA
Analog outputs
1, parameterizable, 0 - 10 V
Digital inputs
4, parameterizable, max. 30 V DC
Digital outputs
1, parameterizable, 24 V DC
Relay outputs
1, parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1)
Interface/field bus (built-in)
OP-Bus (RS485)/Modbus RTU, CANopen®
Assigned switching and protective elements
Power WiringSafety device (fuse or miniature circuit-breaker)IEC (Type B, gG), 150 %
FAZ-B16/1N
Power WiringSafety device (fuse or miniature circuit-breaker)UL (Class CC or J)
15 A
Power WiringMains contactor150 % overload (CT/IH, at 50 °C)
DILEM-… + P1DILEM
Power WiringMain choke150 % overload (CT/IH, at 50 °C)
DX-LN1-018
Power WiringRadio interference suppression filter (external, 150 %)
DX-EMC12-014-FS1
Power WiringNote regarding radio interference suppression filter
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+40 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Frequency converter =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kV ([email protected] [AKE177014])
Mains voltage
99 - 126 V
Mains frequency
50/60 Hz
Number of phases input
1
Number of phases output
1
Max. output frequency
500 Hz
Max. output voltage
125 V
Nominal output current I2N
7 A
Max. output at quadratic load at rated output voltage
0.37 kW
Max. output at linear load at rated output voltage
0.37 kW
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Number of analogue outputs
1
Number of analogue inputs
2
Number of digital outputs
1
Number of digital inputs
4
With control unit
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for BACnet
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
No
4-quadrant operation possible
No
Type of converter
U converter
Degree of protection (IP)
IP66
Degree of protection (NEMA)
4X
Height
232 mm
Width
161 mm
Depth
162 mm
Approvals
Product Standards
UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.
E172143
UL Category Control No.
NMMS, NMMS7
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, certified by UL for use in Canada
Specially designed for North America
No
Suitable for
Branch circuits
Max. Voltage Rating
1~ 120 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)
Degree of Protection
IEC: IP66
Dimensions
