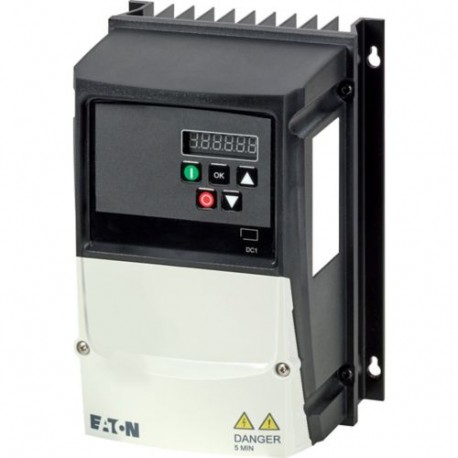

DC1-1D4D3NN-A66OE1 199395 EATON ELECTRIC DC1-1D4D3NN-A66OE1
DC1-1D4D3NN-A66OE1
199395
EATON-MOELLER
DC1-1D4D3NN-A66OE1

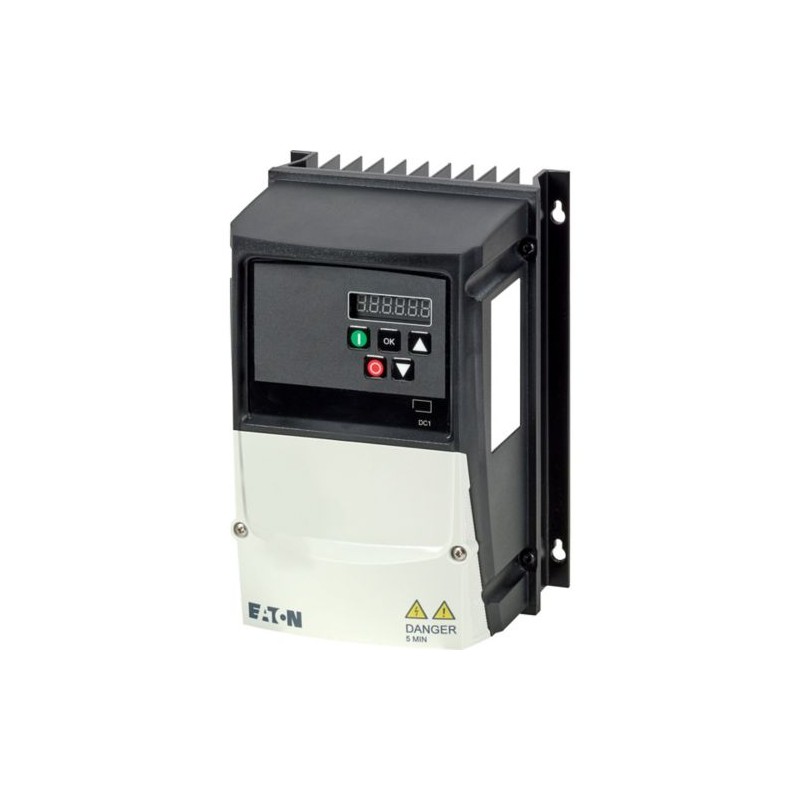

Eaton DC1 Variable frequency drive, 115 V AC, single-phase, 4.3 A, 0.75 kW, IP66/NEMA 4X, 7-digital display assembly, Additional PCB protection, UV resistant, FS1
Power XL Frequency Converters
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲General specifications
Product Name
Eaton DC1 Variable frequency drive
Catalog Number
199395
Model Code
DC1-1D4D3NN-A66OE1
EAN
4015081977840
Product Length/Depth
162 mm
Product Height
232 mm
Product Width
161 mm
Product Weight
2.5 kg
Certifications
Certified by UL for use in Canada
UL File No.: E172143
RoHS, ISO 9001
CSA-C22.2 No. 14
UL report applies to both US and Canada
UL
RCM
EAC
UL 508C
IEC/EN 61800-2
CE
IEC/EN 61800-3
IEC/EN61800-5
UL Listed
CE marking
CUL
UL Category Control No.: NMMS, NMMS7
UkrSEPRO
IEC/EN 61800-5-1
UL File No.: E172143
RoHS, ISO 9001
CSA-C22.2 No. 14
UL report applies to both US and Canada
UL
RCM
EAC
UL 508C
IEC/EN 61800-2
CE
IEC/EN 61800-3
IEC/EN61800-5
UL Listed
CE marking
CUL
UL Category Control No.: NMMS, NMMS7
UkrSEPRO
IEC/EN 61800-5-1
Features & Functions
Features
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
Fitted with:
Control unit
IGBT inverter
7-digital display assembly
Additional PCB protection
UV resistance
Internal DC link
PC connection
IGBT inverter
7-digital display assembly
Additional PCB protection
UV resistance
Internal DC link
PC connection
General
Cable length
150 m, unscreened, with motor choke, maximum permissible, Motor feeder
100 m, screened, with motor choke, maximum permissible, Motor feeder
75 m, unscreened, maximum permissible, Motor feeder
50 m, screened, maximum permissible, Motor feeder
100 m, screened, with motor choke, maximum permissible, Motor feeder
75 m, unscreened, maximum permissible, Motor feeder
50 m, screened, maximum permissible, Motor feeder
Communication interface
Modbus RTU, built in
SmartWire-DT, optional
OP-Bus (RS485), built in
CANopen®, built in
SmartWire-DT, optional
OP-Bus (RS485), built in
CANopen®, built in
Connection to SmartWire-DT
No
Degree of protection
NEMA 4X
IP66
IP66
Frame size
FS1
Mounting position
Vertical
Product category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Protocol
MODBUS
Other bus systems
CAN
EtherNet/IP
Other bus systems
CAN
EtherNet/IP
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Suitable for
Branch circuits, (UL/CSA)
Climatic environmental conditions
Altitude
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Above 1000 m with 1 % derating per 100 m
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
60 °C
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Main circuit
Efficiency
97 % (η)
Input current ILN at 150% overload
15.8 A
Leakage current at ground IPE - max
4.8 mA
Mains switch-on frequency
Maximum of one time every 30 seconds
Mains voltage - min
110 V
Mains voltage - max
115 V
Operating mode
U/f control
Speed control with slip compensation
PM motors
Sensorless vector control (SLV)
Synchronous reluctance motors
BLDC motors
Speed control with slip compensation
PM motors
Sensorless vector control (SLV)
Synchronous reluctance motors
BLDC motors
Output frequency - min
0 Hz
Output frequency - max
500 Hz
Output voltage (U2)
230 V AC, 3-phase
Overload current IL at 150% overload
6.45 A
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
48 Hz
Rated frequency - max
62 Hz
Rated operational current (Ie)
4.3 A at 150% overload (at an operating frequency of 6 kHz and an ambient air temperature of +40 °C)
Rated operational voltage
115 V AC, 1-phase
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Short-circuit protection rating
25 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Starting current - max
175 % IH
Supply frequency
50/60 Hz
Switching frequency
8 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
120 V
Motor rating
Assigned motor current IM at 220 - 240 V, 60 Hz, 150% overload
4.2 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
3.2 A
Assigned motor power at 230/240 V, 60 Hz, 1-phase
1 HP
Braking function
Braking torque
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 30 % MN, Standard - Main circuit
Max. 30 % MN, Standard - Main circuit
Control circuit
Number of inputs (analog)
2
Number of inputs (digital)
4
Number of outputs (analog)
1
Number of outputs (digital)
1
Number of relay outputs
1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| DC1-1D4D3NN-A66OE1 199395 EN_199395.pdf | 228 Kbytes |
|
