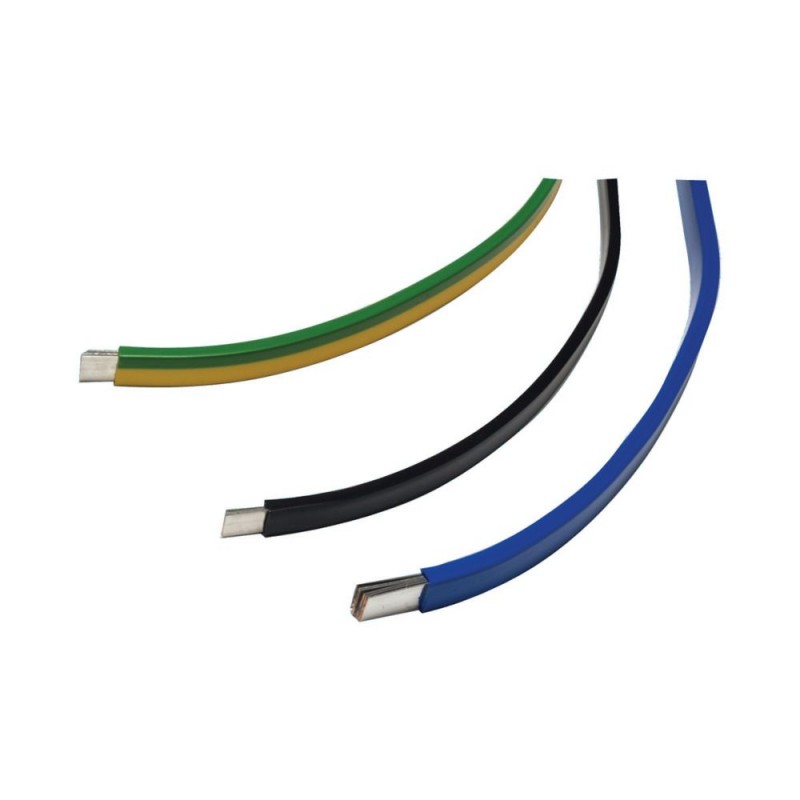

CU-BAND5X32X1-BK 119035 EATON ELECTRIC Copper band 630A, 5x32x1mm, black
CU-BAND5X32X1-BK
119035
EATON-MOELLER
Copper band 630A, 5x32x1mm, black
CU-BAND5X32X1-BK
Energy distribution systems > Wiring band
Connection Accessories for Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Copper band 630A, 5x32x1mm, black
Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=5x32x1mm, color black, rated operational current Ie=630 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC
General specifications
Product name
Eaton xEffect Multi-Layer Copper Band Enclosures Switch- & Controlgear Enclosure
Part no.
CU-BAND5X32X1-BK
EAN
4015081171729
Product Length/Depth
2000 millimetre
Product height
5 millimetre
Product width
32 millimetre
Product weight
2.95 kilogram
Compliances
CE marking
UL 758
EN 60439-1
UL CSA09 (max. 105 °C)
EN 60439-3
RoHS conform
UL 758
EN 60439-1
UL CSA09 (max. 105 °C)
EN 60439-3
RoHS conform
Certifications
UL (File No. E248096)
UL (Category Control Number AVLV2)
North America (UL listed, certified by UL for use in Canada)
UL (Category Control Number AVLV2)
North America (UL listed, certified by UL for use in Canada)
Product Tradename
xEffect Multi-Layer Copper Band
Product Type
Enclosures
Product Sub Type
Switch- & Controlgear Enclosure
Delivery program
Type
General switchboard accessory
Accessory/spare part type
Copper band insulated
Color
Black, similar to RAL 9005
Amperage rating
630 A
Technical Data - Electrical
Voltage rating
1000 V AC, 1500 V DC
Voltage rating (UL CSA 13)
Max. 600 V AC, 750 V DC
Rated operation current (Ie)
630 A
Dielectric strength
20 kV/mm
Technical Data - Mechanical
Cross section
160 mm²
Number of fuse holders (knife blade)
5
Busbar thickness
9 mm
Dimensions - band specification
5 mm x 32 mm x 1 mm
Lamella thickness
1 mm
Additional information
Features
Self-extinguishing acc. UL 94 V0
Laminated
Laminated
Special features
E‐Cu laminated conductor, tin-plated
UL approved up to max. 600 V AC
Insulating material heat resistant up to +105 °C
UL approved up to max. 600 V AC
Insulating material heat resistant up to +105 °C
Used with
Copper band isolated
Appliance wiring material
Appliance wiring material
Technical data ETIM 9.0
Energy distribution systems (EG000015) / Wiring band (EC001898)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Wiring band (ecl@ss13-27-40-06-12 [ACO387016])
Rated operation current
630 A
Length
2000 mm
Width
32 mm
Thickness
9 mm
Laminated
Yes
Lamella thickness
1 mm
Number of lamellas
5
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| CU-BAND5X32X1-BK 119035 EN_119035.pdf | 108 Kbytes |
 |
