> EATON - MOELLER>Connection Accessories for Enclosures>CU-BAND10X32X1-BK 119036 Y7-119036 ELECTRIC Copper band 800A, 10x32x1mm, black
Previous Product Next Product

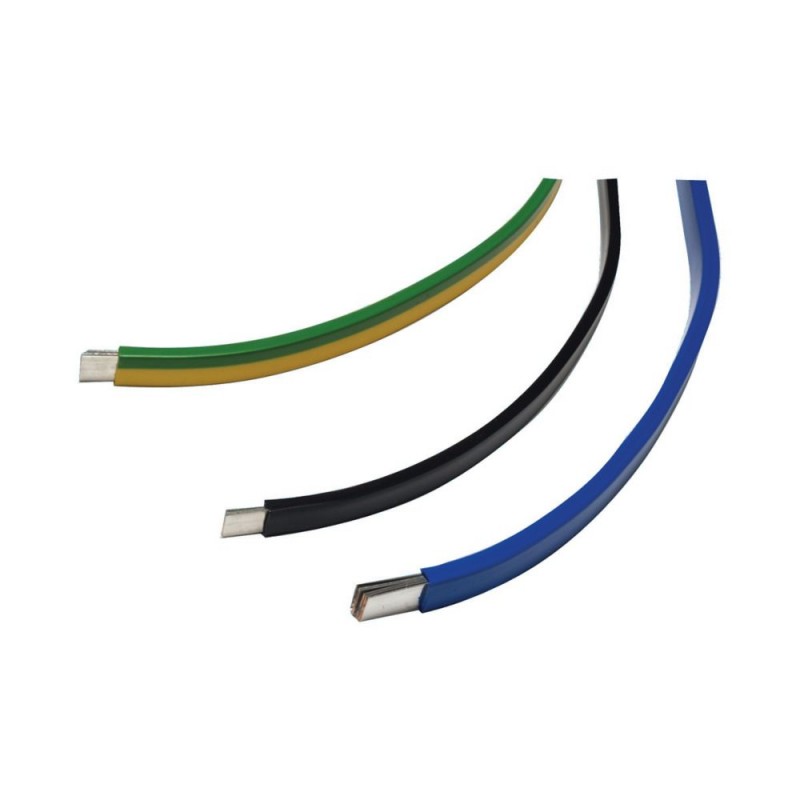

CU-BAND10X32X1-BK 119036 Y7-119036 EATON ELECTRIC Copper band 800A, 10x32x1mm, black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CU-BAND10X32X1-BK 119036 Y7-119036 EATON ELECTRIC Copper band 800A, 10x32x1mm, black

CU-BAND10X32X1-BK

119036

Y7-119036

EATON-MOELLER

3

Copper band 800A, 10x32x1mm, black

CU-BAND10X32X1-BK

Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=10x32x1mm, color black, rated operational current Ie=800 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC

More details


Energy distribution systems > Wiring band

Connection Accessories for Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $1,700.18
Unit price: $566.73
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Copper band 800A, 10x32x1mm, black
Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=10x32x1mm, color black, rated operational current Ie=800 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC

Delivery program

Product range
General switchboard accessories
Accessories
Copper band insulated
Accessories
Copper band insulated
Description
E‐Cu laminated conductor, tin-plated
UL approved up to max. 600 V AC
Insulating material heat resistant up to +105 °C
Rated voltage [Ue]
1000 V AC
Rated voltage [Ue]
1500 V DC
Insulation resistance
20 kV/mm
Self-extinguishing
to UL 94 V0
Length
2000 mm
Rated operational current [Ie]
800 A
Dimensions (W x H x D)
10 x 32 x 1 mm
Cross-section
320 mm2
Cu factor
5,70 kg
Colour
Black, similar to RAL 9005
Notes

1)Rated operational current: conform to VDE 0281

2)Cross-section: Wiring instructions for devices (e.g. terminal capacity at least ... mm2) are to be strictly observed

3)Cu factor: Calculating extra material cost Chapter General

Approvals

Product Standards
UL 758; EN 60439-1, -3; CE marking
UL File No.
E248096
UL Category Control No.
AVLV2
CSA File No.
UL report applies to both US and Canada
CSA Class No.
–
North America Certification
UL listed, certified by UL for use in Canada
Conditions of Acceptability
max. 105 ºC
Specially designed for North America
No
Suitable for
Appliance Wiring Material - Component
Max. Voltage Rating
600 V AC, 750 V DC

ETIM for 119036 Power distribution systems (EC001898)
Feature Name Feature Value
Rated operation current (EF007679) 800 A
Length (EF001438) 2000 mm
Width (EF000008) 32 mm
Thickness (EF000125) 14 mm
Laminated (EF005508) Yes
Lamella thickness (EF006537) 1 mm
Number of lamellas (EF006538) 10

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CU-BAND10X32X1-BK Y7-119036 119036 EN_119036.pdf 140 Kbytes CU-BAND10X32X1-BK Y7-119036 119036 EN_119036.pdf
