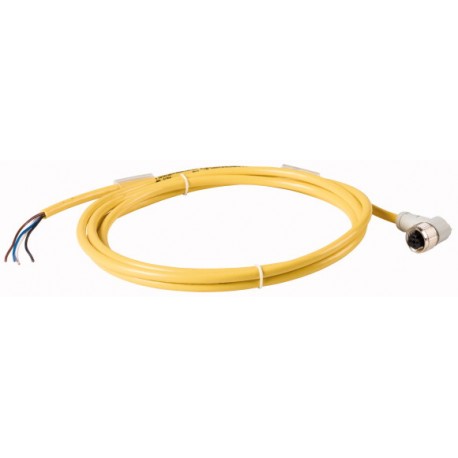

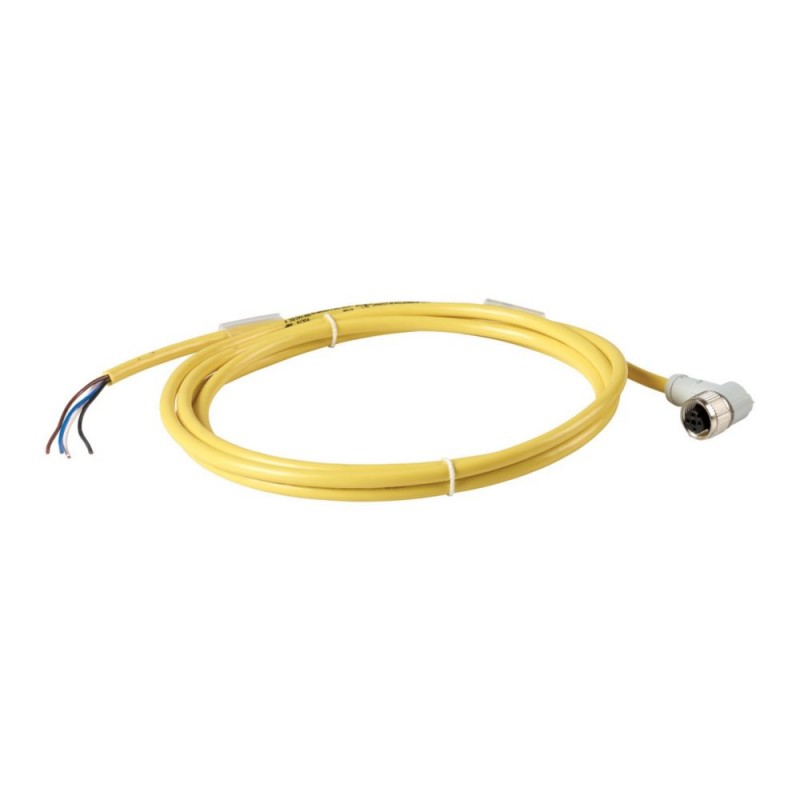

CSDR5A5CY2202 166983 EATON ELECTRIC Connection Cable 5-pole/5-wire DC Connector M12 female right Angle/open .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CSDR5A5CY2202 166983 EATON ELECTRIC Connection Cable 5-pole/5-wire DC Connector M12 female right Angle/open ..

CSDR5A5CY2202

166983

EATON-MOELLER

10

Connection Cable; 5-pole/5-wire; DC; Connector M12 female right Angle/open; L=2m

Connection cable, 5p/5Ltg, DC current, coupling m12 angled, open end, 2m

More details


Sensors > Sensor-actuator patch cord

Home > EATON - MOELLER

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Connection cable, 5p/5Ltg, DC current, coupling m12 angled, open end, 2m
Connecting cable, Basic function: Accessories, Length: 2000 mm, Voltage type: DC, 5 pole, Style output side: Cable end, open, Style input side: Coupling, angled, For use with: DC sensors, IntelliView E75-DST4…, 5 pole, M12

Delivery program

Basic function
Accessories
Accessories
Connecting cables
Length
2000 mm
Pin assignment
1360SWI-149
Voltage type
DC
Number of poles
5 pole
Style output side
Cable end, open
Style input side
Coupling, angled
For use with
For use with
DC sensors, IntelliView E75-DST4…, 5 pole, M12

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Sensor-actuator patch cord (EC001855)
Electric engineering, automation, process control engineering / Cable, wire / Ready-made data cable / Assembled sensor actuator-line ([email protected] [AFR601003])
Number of poles
5
Type of electrical connection, field-sided
M12
Type of plug-in contact, field sided
Female (bus)
Positioning cable feed, field-sided
Angled
Type of electrical connection, box-sided
Other
Type of plug-in contact, box-sided
Positioning cable feed, box-sided
Other
Cable length
2 m
Material of cable sheath
Other
Halogen free
No
Colour cable sheath
Other
With LED indication
No
Screened
No
Type of cable
Multi-core
Vulcanize
No
Material contact body
Other
Material of contact surface
Other
Permitted cable outer temperature after assembling without vibration
40 - 70 °C
Permitted cable outer temperature during assembling/handling
40 - 70 °C
Rated current In
0 A
Rated voltage
0 V
Continuity resistor
0 mOhm
Degree of protection (IP)
Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
CSDR5A5CY2202 CSDR5A5CY2202 166983 EN_166983.pdf 164 Kbytes CSDR5A5CY2202 CSDR5A5CY2202 166983 EN_166983.pdf
