Product name

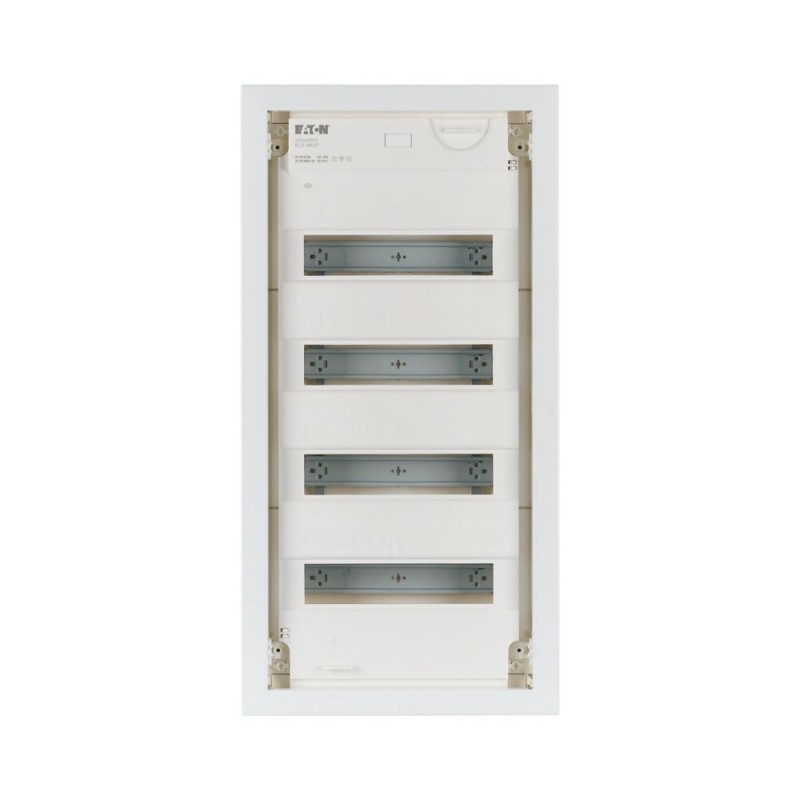

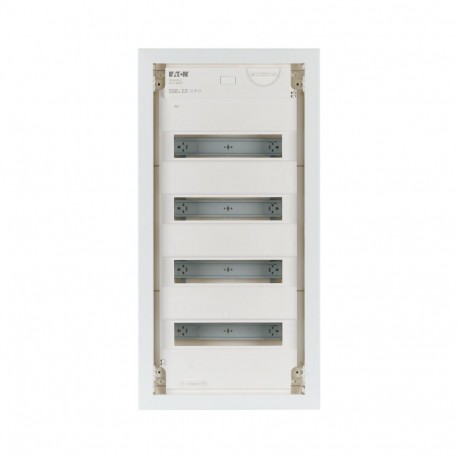

Eaton xComfort KLV energy distribution board
Product Length/Depth
100 millimetre
Product height
715 millimetre
Product width
360 millimetre
Product weight
4.98 kilogram
Certifications
IEC/EN 60670-24 (PD)
IEC/EN 62208
Product Tradename
xComfort KLV
Product Type
Energy distribution board
Type
Basic deviceInstallation distribution boardKLV energy
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Enclosure material
Plastic
Width in number of modular spacings
12
Mounting method
Flush mounted (plaster)
DIN-rail
Flush mounting
Material
Sheet steel, powder-coated
Polystyren (plastic)
Degree of protection
IP30
IK05 (impact resistance)
Number of module space units per row
12
Terminal type
Plug-in terminals
PE and N terminal number and cross section
PE: 4 x (2.5 mm² - 25 mm²) + 28 x (0.5 mm² - 4 mm²)
N: 4 x (2.5 mm² - 25 mm²) + 28 x (0.5 mm² - 4 mm²)
Cover/door model
With notch
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Plastic
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
24 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-5 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Fitted with:
Wall trough
Device support rails
Neutral and protective conductor terminals with KSK plug-in terminal technology
Front cover
Nail lugs
Door/Frame
Imprintable sheet
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Cable retainer
Installation instructions
Spirit level for leveling
Functions
Extension possible
Basic device
Protection class
II (totally insulated)
Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)
Used with
KLV energy
Basic device
Installation distribution board
