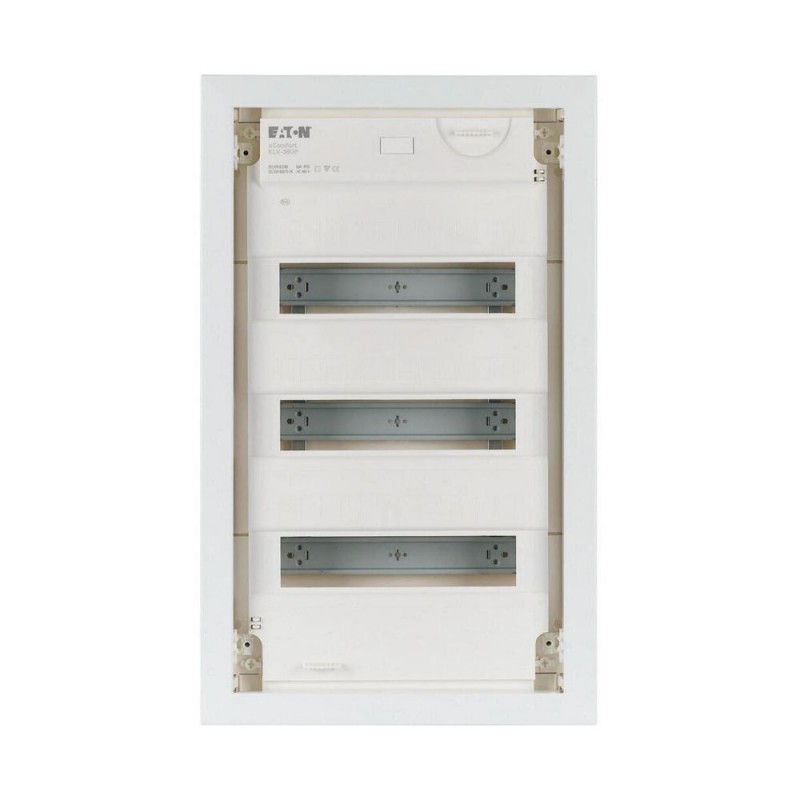

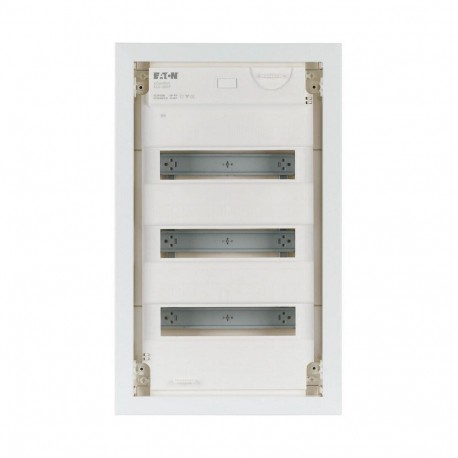

KLV-36UPP-F 178802 Y7-178802 EATON ELECTRIC Compact distribution board-flush mounting 3-rows flush sheet ste..
KLV-36UPP-F
178802
Y7-178802
EATON-MOELLER
Compact distribution board-flush mounting; 3-rows; flush sheet steel door
KLV-36UPP-F
Eaton xComfort KLV LV systems Final Distribution Boards. Compact distribution board-flush mounting, 3-rows, flush sheet steel door, 36UPP-F
Second generation KLV flush mounting compact distribution boards, protection Class II, plastic enclosure with sheet steel door, front cover, sealable and laser-inscribed in accordance with IEC/EN 60670-24, plus 2-space-unit reserve per row, marking slot in wall box, slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat wiring, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, device carrier, front cover , neutral and protective conductor terminals with KSK plug-in terminal technology, spirit level for leveling, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable r
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60670-24 (PD)
Delivery program
Traffic white (RAL 9016)
Technical data - electrical
Technical data - mechanical
Flush mounted (plaster)
DIN-rail
Polystyren (plastic)
N: 4 x (2.5 mm² - 25 mm²) + 28 x (0.5 mm² - 4 mm²)
Single
Temperature-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Wall trough
Cable retainer
Nail lugs
Door/Frame
Spirit level for leveling
Front cover
Imprintable sheet
Device support rails
Installation instructions
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Basic device
- IP30
- Protection Class II
- Plastic enclosure with sheet steel door, white (RAL 9016)
KLV energy
Basic device
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 3 |
| Width in number of modular spacings (EF002950) | 12 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | With notch |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | No |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Built-in depth (EF000218) | 88 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 75 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 590 mm |
| Width (EF000008) | 360 mm |
| Depth (EF000049) | 100 mm |
