Product name

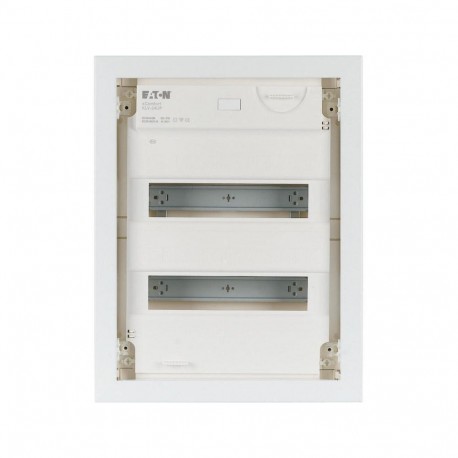

Eaton xComfort KLV energy distribution board
Product Length/Depth
100 millimetre
Product height
465 millimetre
Product width
360 millimetre
Product weight
3.41 kilogram
Certifications
IEC/EN 60670-24 (PD)
IEC/EN 62208
Product Tradename
xComfort KLV
Product Type
Energy distribution board
Type
Basic deviceInstallation distribution boardKLV energy
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Enclosure material
Plastic
Width in number of modular spacings
12
Mounting method
DIN-rail
Flush mounting
Flush mounted (plaster)
Material
Polystyren (plastic)
Sheet steel, powder-coated
Degree of protection
IP30
IK05 (impact resistance)
Number of module space units per row
12
Terminal type
Screw terminals
PE and N terminal number and cross section
N - Fi: 4x (0.75 mm² - 16 mm²)
N: 16 x (0.75 mm² - 16 mm²)
PE: 13 x (0.75 mm² - 16 mm²)
Cover/door model
With notch
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Plastic
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
16 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-5 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Fitted with:
Imprintable sheet
Device support rails
Wall trough
Door/Frame
Installation instructions
Front cover
Neutral and protective conductor terminals with SK screw terminal technology
Cable retainer
Nail lugs
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Spirit level for leveling
Functions
Basic device
Extension possible
Protection class
II (totally insulated)
Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)
