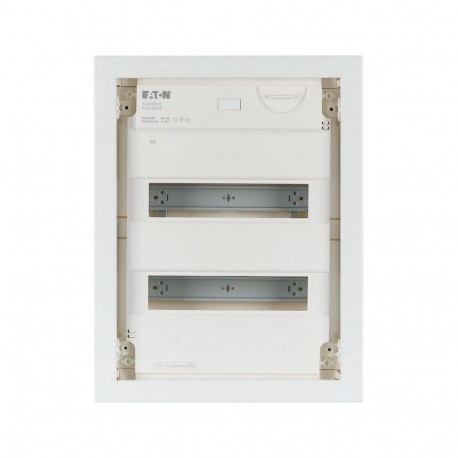

KLV-24UPP-F 178800 EATON ELECTRIC Compact distribution board-flush mounting 2-rows flush sheet steel door
KLV-24UPP-F
178800
EATON-MOELLER
Compact distribution board-flush mounting; 2-rows; flush sheet steel door
KLV-24UPP-F
Distribution boards > Small distribution board
Compact Distribution Boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Compact distribution board-flush mounting; 2-rows; flush sheet steel door
Second generation KLV flush mounting compact distribution boards, protection Class II, plastic enclosure with sheet steel door, front cover, sealable and laser-inscribed in accordance with IEC/EN 60670-24, plus 2-space-unit reserve per row, marking slot in wall box, slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat wiring, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, device carrier, front cover , neutral and protective conductor terminals with KSK plug-in terminal technology, spirit level for leveling, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs, installation instructions, imprintable sheet, special packaging designed to meet real-life application requirements. Standards: In accordance with IEC/EN 60670-24, DIN 43871, IEC/EN 62208 and, accordingly, approved for distribution boards as defined in IEC/EN 61439-3.
General specifications
Product name
Eaton xComfort KLV energy distribution board
Part no.
KLV-24UPP-F
EAN
4015081741298
Product Length/Depth
100 millimetre
Product height
465 millimetre
Product width
360 millimetre
Product weight
3.41 kilogram
Compliances
RoHS conform
Certifications
IEC/EN 60670-24 (PD)
IEC/EN 62208
IEC/EN 62208
Product Tradename
xComfort KLV
Product Type
Energy distribution board
Product Sub Type
None
Delivery program
Type
Basic deviceInstallation distribution boardKLV energy
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White
White
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
12
Mounting method
DIN-rail
Flush mounted (plaster)
Flush mounting
Flush mounted (plaster)
Flush mounting
Material
Sheet steel, powder-coated
Polystyren (plastic)
Polystyren (plastic)
Degree of protection
IK05 (impact resistance)
IP30
IP30
Number of module space units per row
12
Number of rows
2
Terminal type
Plug-in terminals
PE and N terminal number and cross section
PE: 2 x (2.5 mm² - 25 mm²) + 14 x (0.5 mm² - 4 mm²)
N: 2 x (2.5 mm² - 25mm²) + 14 x (0.5 mm² - 4 mm²)
N - Fi: 1 x (2.5 mm² - 25 mm²) + 7 x (0.5 mm² - 4 mm²)
N: 2 x (2.5 mm² - 25mm²) + 14 x (0.5 mm² - 4 mm²)
N - Fi: 1 x (2.5 mm² - 25 mm²) + 7 x (0.5 mm² - 4 mm²)
Built-in depth
88 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
75 mm
Cover/door color
White
Cover/door model
With notch
Cover/door type
Door
Single
Single
Module rack type
Rail frame
Protective shrouding material
Plastic
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
16 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-5 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Features
EMC-version
Fitted with:
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Wall trough
Spirit level for leveling
Cable retainer
Door/Frame
Nail lugs
Imprintable sheet
Neutral and protective conductor terminals with KSK plug-in terminal technology
Front cover
Installation instructions
Device support rails
Wall trough
Spirit level for leveling
Cable retainer
Door/Frame
Nail lugs
Imprintable sheet
Neutral and protective conductor terminals with KSK plug-in terminal technology
Front cover
Installation instructions
Device support rails
Functions
Basic device
Extension possible
Extension possible
Protection class
II (totally insulated)
RAL-number
9016
Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)
Used with
KLV energy
Basic device
Installation distribution board
Basic device
Installation distribution board
Technical data ETIM 9.0
Distribution boards (EG000023) / Small distribution board (EC000214)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (including small distribution board) / Small distribution board (ecl@ss13-27-14-24-09 [ACN387016])
Mounting method
Flush-mounted
Number of rows
2
Width in number of modular spacings
12
Type of covering
Door
Cover model
With notch
Type of door
Single
Transparent cover/door
No
Signal passing door
No
With lock
No
Type of closure
Other
Housing material
Plastic
Built-in depth
88 mm
Built-in height
0 mm
Built-in width
0 mm
Inner depth
75 mm
Earthing terminal block
No
Neutral terminal block
No
DIN-rail
Yes
With mounting plate
No
Extension possible
Yes
EMC-version
Yes
UV resistant
No
Colour
White
RAL-number
9016
Degree of protection (IP)
IP30
Height
465 mm
Width
360 mm
Depth
100 mm
