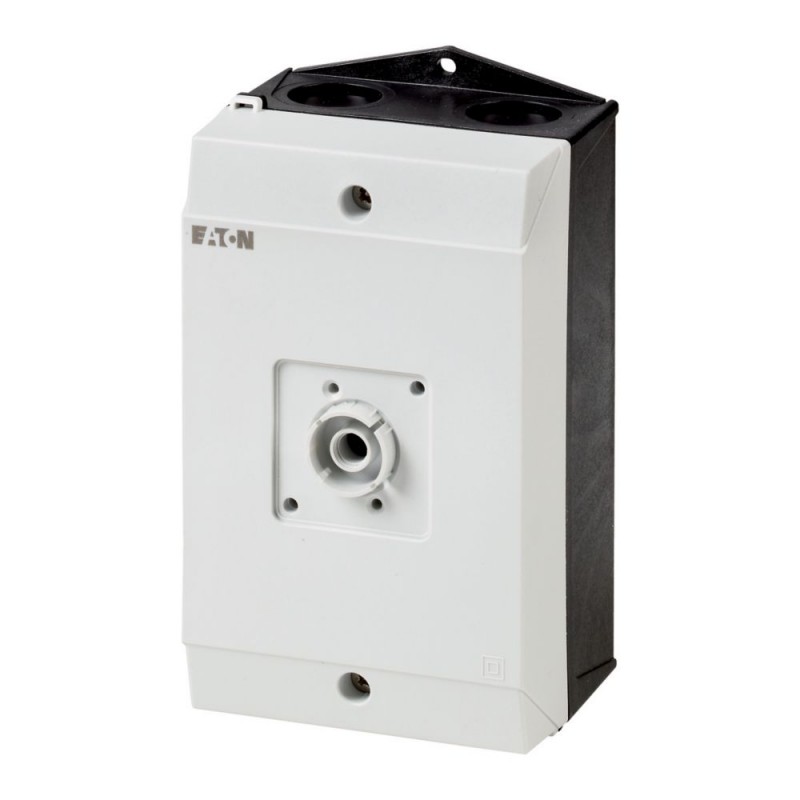

CI-K2-T0-2-NA 255918 Y7-255918 EATON ELECTRIC Box of insulating material HxWxD 160x100x100mm For T0-2 For No.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CI-K2-T0-2-NA 255918 Y7-255918 EATON ELECTRIC Box of insulating material HxWxD 160x100x100mm For T0-2 For No..

CI-K2-T0-2-NA

255918

Y7-255918

EATON-MOELLER

Box of insulating material; HxWxD=160x100x100mm;; For T0-2; For North America

CI-K2-T0-2-NA

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=160x100x100mm, for T0-2, NA type

Small enclosure, degree of protection IP65, glass-fiber reinforced polycarbonate, enclosure base RAL 9005, black/operator only RAL 7035, light gray, with hard 1/2 inch knockouts, for T0-2 switch

More details


Low-voltage industrial components > Empty enclosure for switchgear

Insulating Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $30.39
Unit price: $30.39
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
255918
Model Code
CI-K2-T0-2-NA
EAN
4015082559182
Product Length/Depth
181 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.3 kg
Compliances
CE
Catalog Notes
1 contact unit = 2 contacts

Product specifications

Type
Insulated enclosure
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
1 - 2 contact units and with an additional PE clamp
Enclosure material
Plastic
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
IP65
NEMA 12
Model
Surface mounting

ETIM for 255918 Low-voltage industrial controls and switchgear (EC000712)
Feature Name Feature Value
Housing material (EF001596) Plastic
Width (EF000008) 100 mm
Height (EF000040) 100 mm
Depth (EF000049) 181 mm
With transparent cover (EF001094) No
Suitable for emergency stop (EF001433) No
Model (EF000010) Surface mounting
Degree of protection (IP) (EF005474) IP65
Degree of protection (NEMA) (EF011959) 12

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-K2-T0-2-NA Y7-255918 255918 ES_255918.pdf 1 Mbytes CI-K2-T0-2-NA Y7-255918 255918 ES_255918.pdf
