CI/E-PKZ01-XPVS 289938 Y7-289938 EATON ELECTRIC Emergency-stop button, key unlocking, for expansion/installa.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CI/E-PKZ01-XPVS 289938 Y7-289938 EATON ELECTRIC Emergency-stop button, key unlocking, for expansion/installa..

CI/E-PKZ01-XPVS

289938

Y7-289938

EATON-MOELLER

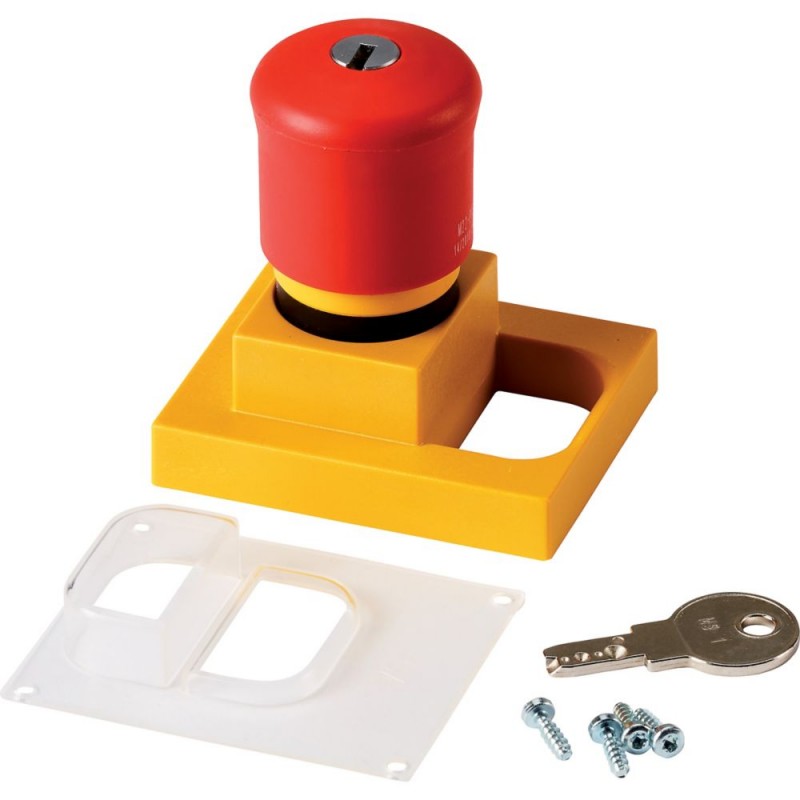

Emergency-stop button, key unlocking, for expansion/installation housing

CI/E-PKZ01-XPVS

Eaton Moeller® series CI Emergency-stop button, key unlocking, for expansion/installation housing

Units for insulated enclosure for PKZ01, can be combined with CI‐PKZ01‐X and E‐PKZ01‐X. IP65_x

More details


Low-voltage industrial components > Empty enclosure for switchgear

Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $68.06
Unit price: $68.06
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series CI Accessory Insulated enclosure
Catalog Number
289938
Model Code
CI/E-PKZ01-XPVS
EAN
4015082899387
Product Length/Depth
158 mm
Product Height
80 mm
Product Width
117 mm
Product Weight
0.1 kg
Compliances
CE
Catalog Notes
Combinable with CI‐PKZ01‐X and E‐PKZ01‐X.

Product specifications

10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Key-release
Emergency switching off mushroom push-button
Enclosure material
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories
Degree of protection
IP65
NEMA Other
Model
Surface mounting
Degree of protection (front side)
IP65
Suitable for
Emergency stop

ETIM for 289938 Low-voltage industrial controls and switchgear (EC000712)
Feature Name Feature Value
Housing material (EF001596) Plastic
Width (EF000008) 117 mm
Height (EF000040) 80 mm
Depth (EF000049) 158 mm
With transparent cover (EF001094) No
Suitable for emergency stop (EF001433) Yes
Model (EF000010) Surface mounting
Degree of protection (IP) (EF005474) IP65
Degree of protection (NEMA) (EF011959) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI/E-PKZ01-XPVS Y7-289938 289938 ES_289938.pdf 971 Kbytes CI/E-PKZ01-XPVS Y7-289938 289938 ES_289938.pdf
