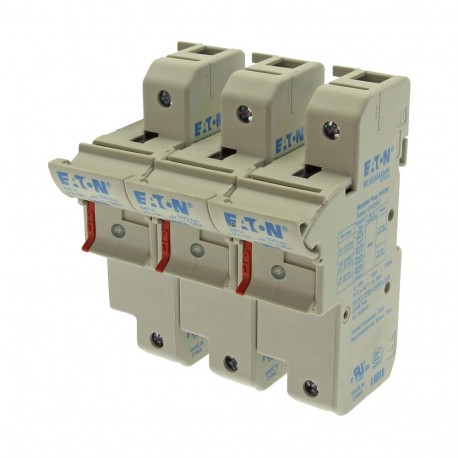

CH223DIU EATON ELECTRIC Fuse-holder, low voltage, 125 A, AC 690 V, 22 x 58 mm, 3P, IEC, With indicator
CH223DIU
EATON-MOELLER
2
3P 22x58 Neon Indicator Fuse Holder
Eaton's Bussmann series 3-Pole modular fuse holder, rated at 690 V a.c./1000 V d.c. (IEC), 700 V a.c. (UL) , 125 Amps (IEC), 100 A (UL), fitted with a neon indicator, suitable for 22 x 58 mm Cylindrical fuses
Circuit breakers and fuses > Holder for cylindrical fuse
Bussmann Series Low Voltage fuses and accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
RoHS Compliant
EAC
IEC 60269-1
UL Listed File E14853
Electrical data
Product specification
2 x M4 Panel mounting screws
Compatible fuse
C22M
Accessories
| Feature Name | Feature Value |
|---|---|
| Nominal voltage (EF000002) | 690 V |
| Mounting method (EF000003) | DIN rail |
| For fuse size (EF008316) | 22x58 mm |
| Number of poles (EF001391) | 3 |
| Concurrently switching neutral conductor (EF005997) | No |
| Lockable (EF000113) | Yes |
| With optical defect indication (EF008181) | Yes |
| Width in number of modular spacings (EF002950) | 6 |
| Built-in depth (EF000218) | 51.5 mm |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON CIRCUIT PROTECTION BUSSMANN EN .pdf | 23 Mbytes |
|
| PDF EATON CIRCUIT PROTECTION NH FUSE EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| CH223DIU CH223DIU CH223DIU EN_CH223DIU.pdf | 160 Kbytes |
|
