> >>C445MA-032V 181559 ELECTRIC Measuring module, 45mm, 4-32 A, for voltage measurement
Previous Product Next Product

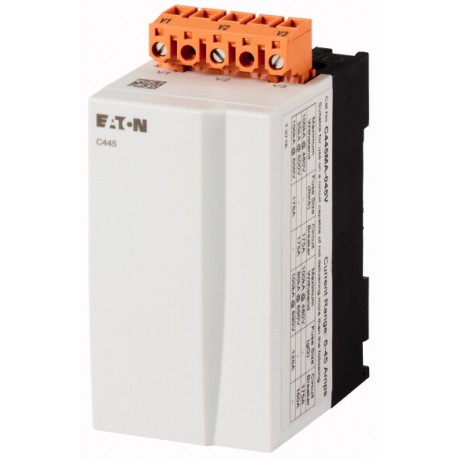

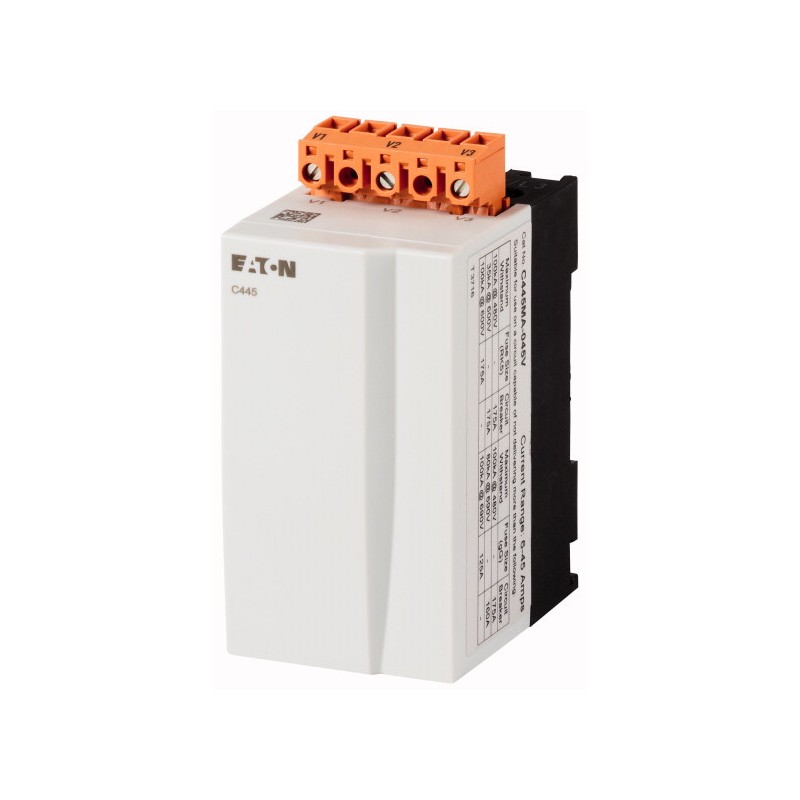

C445MA-032V 181559 EATON ELECTRIC Measuring module, 45mm, 4-32 A, for voltage measurement View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C445MA-032V 181559 EATON ELECTRIC Measuring module, 45mm, 4-32 A, for voltage measurement

C445MA-032V

181559

EATON-MOELLER

Measuring module, 45mm, 4-32 A, for voltage measurement

Module measurement; 45 mm; 4-32 To; For voltage measurement

More details


Thermal Relays

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Measuring module, 45mm, 4-32A, for voltage measurement
Intelligent motor management system C445 measuring module, 45mm, 4-32 A, for voltage measurement

Delivery program

Product range
Measurement modules
Basic function
Current measurement
Voltage measurement
Current range
4 - 32 A
Mounting width
45 mm

Technical data

General
Standards
IEC/EN 60947-4-1, UL 60947-4-1
Ambient temperatureOpen
-40 - +60 °C
Mounting position
As required
Mechanical shock resistance
15
Shock duration 11 ms
non-operating g
Degree of Protection
IP20
Main conducting paths
Rated insulation voltage [Ui]
110 - 690 V AC
Short-circuit protection max. fuse gL-characteristic
125 A gL
Current heat loss (3 conductors)Maximum setting
5 W
Push-through opening [⌀]
7.8 mm
Rating data for approved types
Short Circuit Current RatingBasic RatingSCCR
5 kA
Short Circuit Current RatingBasic Ratingmax. Fuse
125 A
Short Circuit Current RatingBasic Ratingmax. CB
125 A
Short Circuit Current Rating480 V High FaultSCCR (fuse)
100 kA
Short Circuit Current Rating480 V High Faultmax. Fuse
125 A
Short Circuit Current Rating480 V High FaultSCCR (CB)
100 kA
Short Circuit Current Rating480 V High Faultmax. CB
125 A
Short Circuit Current Rating600 V High FaultSCCR (fuse)
100 kA
Short Circuit Current Rating600 V High Faultmax. Fuse
125 A
Short Circuit Current Rating600 V High FaultSCCR (CB)
35 kA
Short Circuit Current Rating600 V High Faultmax. CB
125 A

Design verification as per IEC/EN 61439

Static heat dissipation, non-current-dependent [Pvs]
5 W
Operating ambient temperature min.
-40 °C
Operating ambient temperature max.
+60 °C

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.
E1230
UL Category Control No.
NKCR
North America Certification
UL listed, CSA certified
Specially designed for North America
No

Dimensions

2326DIM-2

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 34 Mbytes
C445MA-032V C445MA-032V 181559 EN_181559.pdf 198 Kbytes C445MA-032V C445MA-032V 181559 EN_181559.pdf
