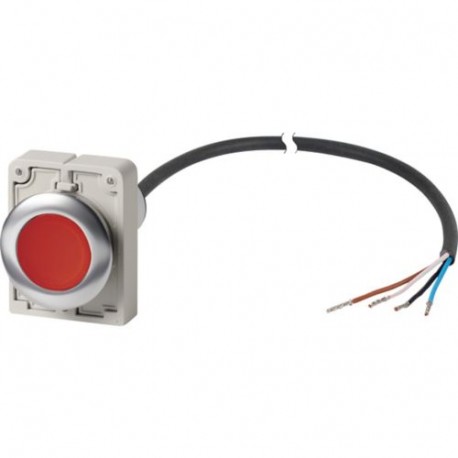

C30C-FDL-R-K01-24-P65 185977 Y7-185977 EATON ELECTRIC C30C-FDL-R-K01-24-P65
C30C-FDL-R-K01-24-P65
185977
Y7-185977
EATON-MOELLER
C30C-FDL-R-K01-24-P65

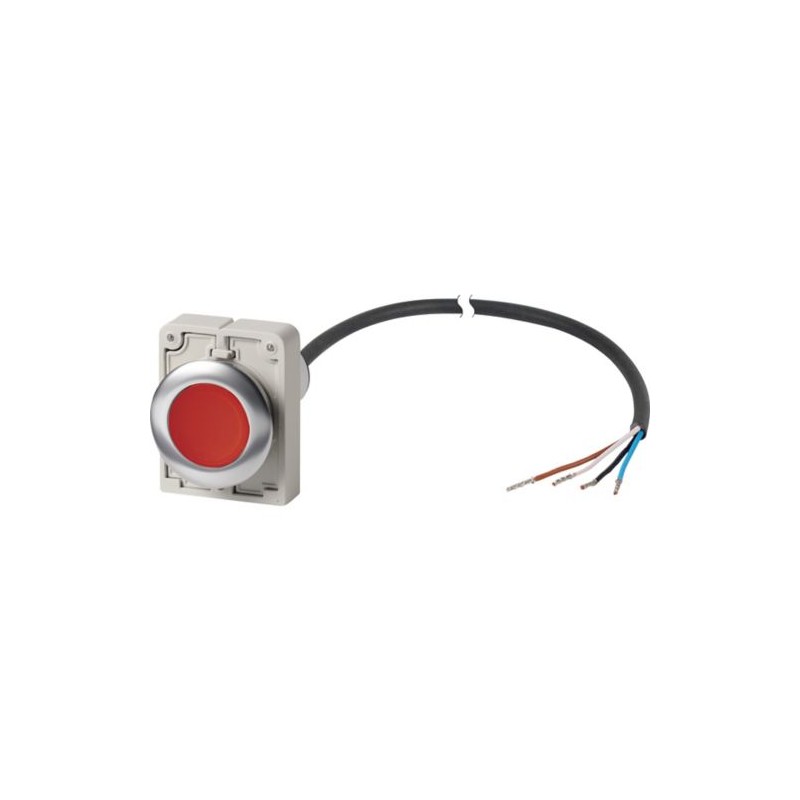

Illuminated pushbutton actuator, Flat, momentary, 1 NC, Cable (black) with non-terminated end, 4 pole, 3.5 m, LED Red, red, Blank, 24 V AC/DC, Metal bezel
Illuminated pushbutton actuator, RMQ compact solution, Complete unit, Design: Flat, momentary, Connection type: Cable (black) with non-terminated end, 4 pole, Cable Length: 3.5 m, Color LED: Red, button plate: red, Button plate Blank, Rated operational voltage LED: 24 V AC/DC, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Metal bezel, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7 , Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
Low-voltage industrial components > Push button, complete
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
VDE 0660
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA
Features & Functions
Flat
General
IP67/IP69K
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Spring-return
Contacts
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Red |
| Transparent (EF006243) | No |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Suitable for lighting (EF001142) | Yes |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| Supply voltage lamp (EF006522) | 24 V |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of electric connection (EF003961) | Cable |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| C30C-FDL-R-K01-24-P65 Y7-185977 185977 EN_185977.pdf | 237 Kbytes |
|
