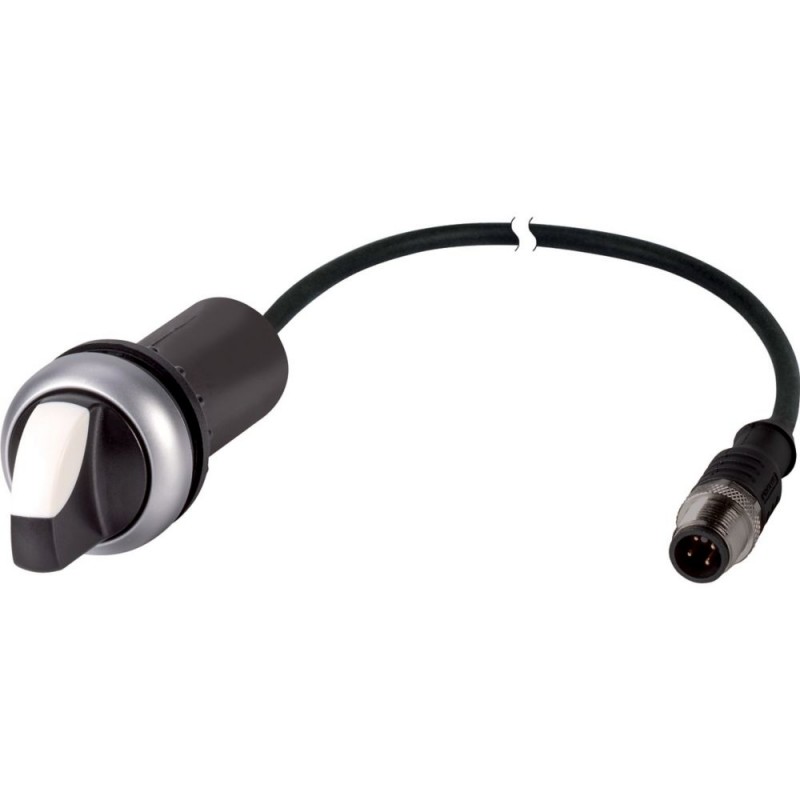

C22-WK-K10-P1 186098 Y7-186098 EATON ELECTRIC Changeover selector switch, classic, with thumb-grip, momentar..
C22-WK-K10-P1
186098
Y7-186098
EATON-MOELLER
Changeover selector switch, classic, with thumb-grip, momentary, 2 positions, 1 N/O, cable (black) with m12a plug, 4 pole, 0.2 m
C22-WK-K10-P1
Eaton Moeller® series C22 Changeover switch, With thumb-grip, momentary, 1 N/O, Cable (black) with M12A plug, 4 pole, 0.2 m, 2 positions, Bezel: titanium
Changeover switch, Product range: RMQ compact solution, Complete unit, Design: With thumb-grip, momentary, Cable (black) with M12A plug, 4 pole, Cable Length: 0.2 m, 2 positions, Degree of Protection: IP66 (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660, Degree of Protection: IP66 (front), IP65 (on rear)
Low-voltage industrial components > Selector switch, complete
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
CE
VDE 0660
UL
IEC/EN 60947-5-1
CSA File No.: 165628
CSA Class No.: 321103
UL File No.: E29184
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL listed, CSA certified
Features & Functions
With thumb-grip
Classical
General
IP65, rear
NEMA Other
1 Nm, Plug
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Momentary
Contacts
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 2 |
| Type of control element (EF006976) | Toggle |
| Suitable for lighting (EF001142) | No |
| With light source (EF005905) | No |
| Colour button (EF000190) | Black |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | Other |
| Supply voltage (EF004127) | 0 V |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of electric connection (EF003961) | Other |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| C22-WK-K10-P1 Y7-186098 186098 ES_181628.pdf | 2 Mbytes |
|
