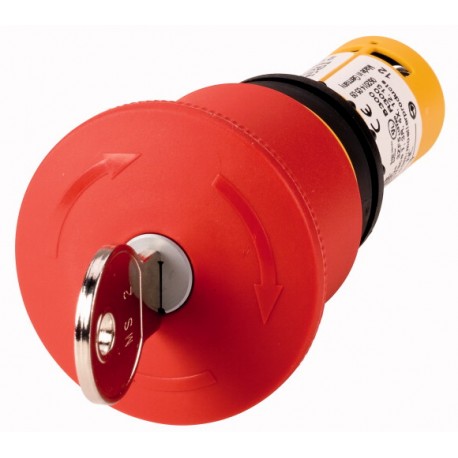

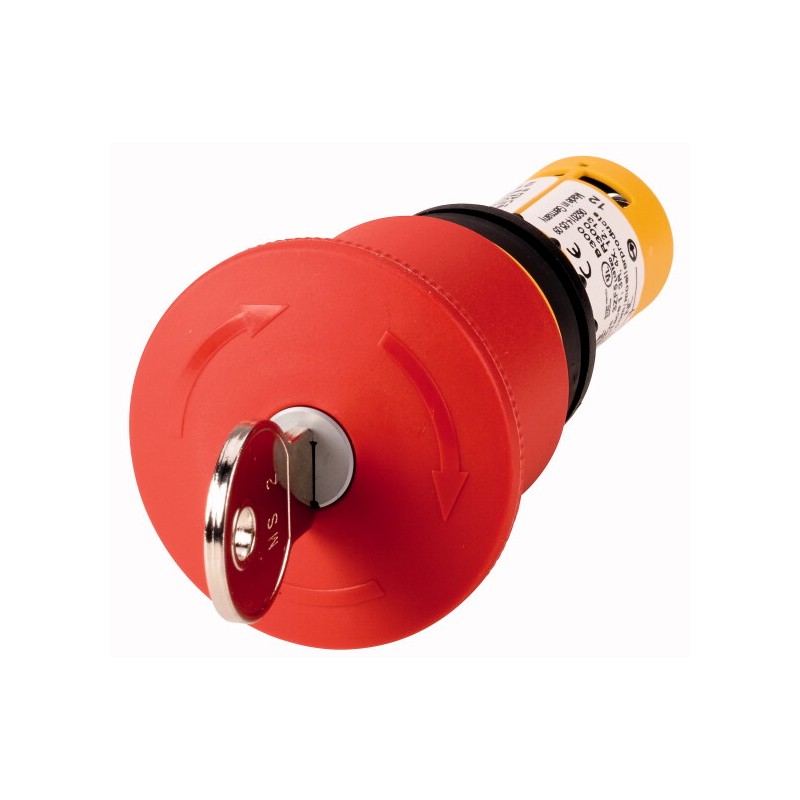

Emergency-stop, Palm-tree shape, 45 mm, Key-release, MS2, 1 NC, 1 N/O, Screw connection, Not suitable for master key systems
Emergency-stop, Product range: RMQ Compact, Complete unit, Design: Palm-tree shape, Diameter: 45 mm, Illumination: Non-illuminated, Key-release, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: MS2, Colour Mushroom head: Red, Colour Base: yellow, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947-5-5, VDE 0660
Delivery program
Basic function
Controlled stop pushbuttons/emergency-stop buttons
Single unit/Complete unit
Complete unit
Illumination
Non-illuminated
Connection type
Screw connection
Description
Tamper-proof according to ISO 13850/EN 418
Not suitable for master key systems
Degree of Protection
IP66, IP67, IP69
Connection to SmartWire-DT
no
N/C = Normally closed
1 NC
Notes
= safety function, by positive opening to IEC/EN 60947-5-1
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
Minimum force for positive opening [ N]
20
Contact travel■ = Contact closed□ = Contact open
Information about equipment supplied
1 key included as standard
Technical data
Standards
IEC/EN 60947-5-5
VDE 0660
Lifespan, mechanical [Operations]
> 0.05 x 106
Operating frequency [Operations/h]
≦ 300
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Mounting position
As required
Terminal capacitiesSolid
2 x 0.5 - 1.5 mm2
Terminal capacitiesFlexible with ferrule
2 x 0.5 - 1.5 mm2
Tightening torque for terminal screw
0.8 Nm
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Rated conditional short-circuit current [Iq]
1 kA
Overvoltage category/pollution degree
III/3
Control circuit reliabilityat 24 V DC/5 mA [HF]
values follow Fault probability
Control circuit reliabilityat 5 V DC/1 mA [HF]
values follow Fault probability
Max. short-circuit protective deviceFuse [gG/gL]
10 A
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Emergency stop complete (EC002034)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / EMERGENCY-STOP pushbutton, complete device (
[email protected] [ACN986011])
Unlocking method
Key-release
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Degree of protection (IP)
Other
Connection type auxiliary circuit
Screw connection
Approvals
Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-05 und 94-M91; CE marking
UL Category Control No.
NKCR
North America Certification
UL listed, CSA certified
Degree of Protection
1,3R,4X,12,13
