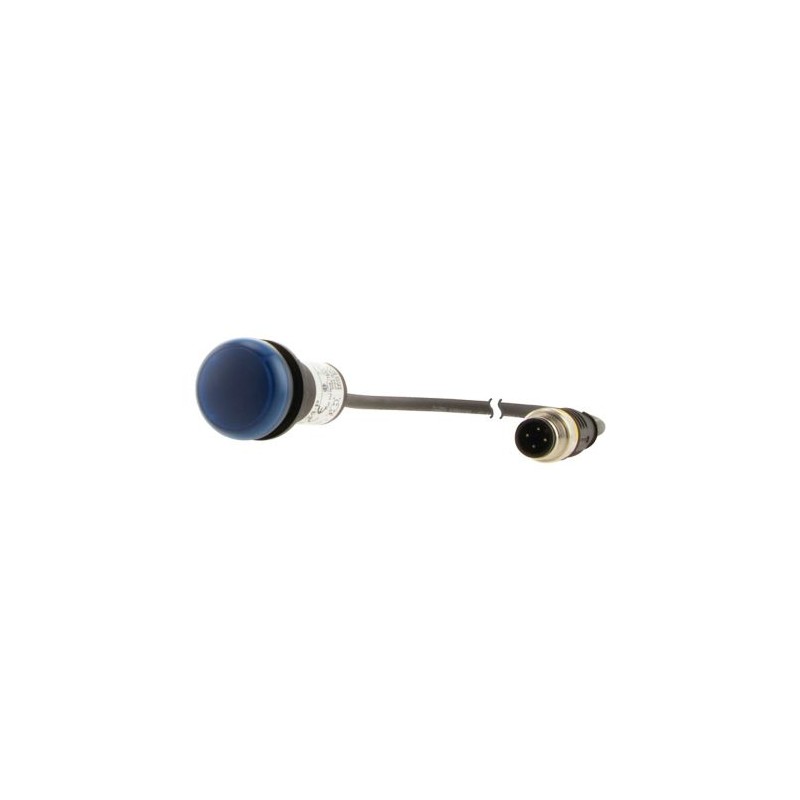

C22-L-B-24-P3 181619 EATON ELECTRIC Indicator light blue 24v with cable 0.5m and M12A plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C22-L-B-24-P3 181619 EATON ELECTRIC Indicator light blue 24v with cable 0.5m and M12A plug

C22-L-B-24-P3

181619

EATON-MOELLER

Indicator light; blue; 24v; with cable 0.5m and M12A plug

C22-L-B-24-P3

Eaton Moeller® series C22 Indicator light, Flat, Cable (black) with M12A plug, 4 pole, 0.5 m, Lens Blue, LED Blue, 24 V AC/DC

More details


Low-voltage industrial components > Indicator light complete

Auxiliary Control and Signalling Elements

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $38.51
Unit price: $38.51

Quantity Price
1+$38.51
2+$38.51
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
181619
Model Code
C22-L-B-24-P3
EAN
4015081764860
Product Length/Depth
561 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.043 kg
Certifications
UL File No.: E29184
CSA Class No.: 321103
IEC/EN 60947-5-1
UL 508
CE
CSA
UL
CSA-C22.2 No. 14-05 and 94-M91
UL Category Control No.: NKCR
VDE 0660
CSA File No.: 165628

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
M12A
Flat
Electric connection type
Other
Fitted with:
Front ring
Light source
Lens color
Blue
Light color
Blue

General

Cable length
0.5 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
IP Other
NEMA Other
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
1 Nm, Plug
2 Nm, Threaded ring
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
30 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts

Actuator

Actuator diameter
4.7 mm

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
C22-L-B-24-P3 181619 ES_181628.pdf 2 Mbytes C22-L-B-24-P3 181619 ES_181628.pdf
