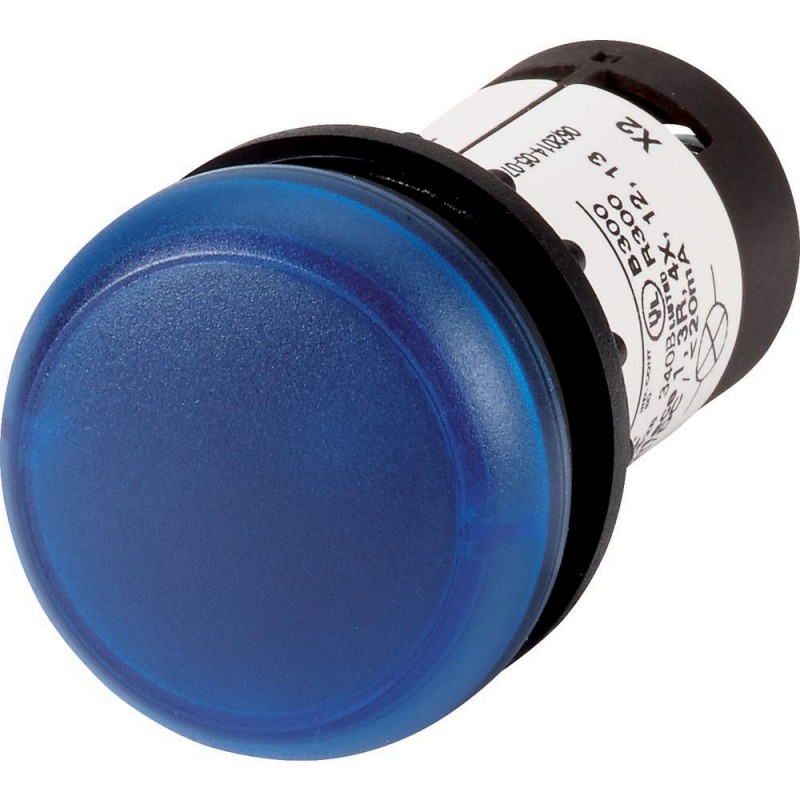

C22-L-B-24 121630 Y7-121630 EATON ELECTRIC C22-L-B-24 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C22-L-B-24 121630 Y7-121630 EATON ELECTRIC C22-L-B-24

C22-L-B-24

121630

Y7-121630

EATON-MOELLER

C22-L-B-24

Eaton Moeller® series C22 Indicator light, Flat, Screw connection, Lens Blue, LED Blue, 24 V AC/DC

Indicator light, Product range: RMQ Compact, Complete unit, Design: Flat, Connection type: Screw connection, Color Lens: Blue, Color LED: Blue, Rated operational voltage LED: 24 V AC/DC, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, VDE 0660

More details


Low-voltage industrial components > Indicator light complete

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $18.74
Unit price: $18.74
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



General specifications

Product Name
Eaton Moeller® series C22 Indicator light
Catalog Number
121630
Model Code
C22-L-B-24
EAN
4015081194445
Product Length/Depth
56 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.015 kg
Certifications
UL 508
UL Category Control No.: NKCR
UL Listed
UL File No.: E29184
CSA certified
IEC/EN 60947-5-1
CSA File No.: 165628
VDE 0660
CE marking
CSA Class No.: 321103
CSA-C22.2 No. 14-05 and 94-M91

Features & Functions

Bezel color
Other
Bezel material
Plastic
Design
Flat
Electric connection type
Screw connection
Fitted with:
Light source
Front ring
Lens color
Blue
Light color
Blue

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 4X, 13
IP67/IP69K
Mounting position
As required
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Product Category
RMQ Compact
Rated impulse withstand voltage (Uimp)
4000 V AC
Terminal capacity
2 x (0.5 - 1.5) mm², solid
2 x (0.5 - 1.5) mm², flexible with ferrules to DIN 46228
Tightening torque
0.8 Nm, Screw terminals
Type
Indicator lights
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational voltage
24 V AC/DC (LED)
Rated operational voltage (Ue) - min
24 V
Rated operational voltage (Ue) - max
24 V

ETIM for 121630 Low-voltage industrial controls and switchgear (EC000272)
Feature Name Feature Value
Number of indicator lights (EF001965) 1
Colour lens (EF000207) Blue
Type of lamp socket (EF008229) LED
With light source (EF005905) Yes
Rated operating voltage Ue (EF002418) 24 V
Voltage type (EF000187) AC/DC
Type of electric connection (EF003961) Screw connection
Construction type lens (EF006253) Round
Type of lens (EF008343) Flat
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Other
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13
