C22-DRL-B-K10-24-P5 181364 Y7-181364 EATON ELECTRIC Illuminated pushbutton actuators maintained blue 24v 1 N..
C22-DRL-B-K10-24-P5
181364
Y7-181364
EATON-MOELLER

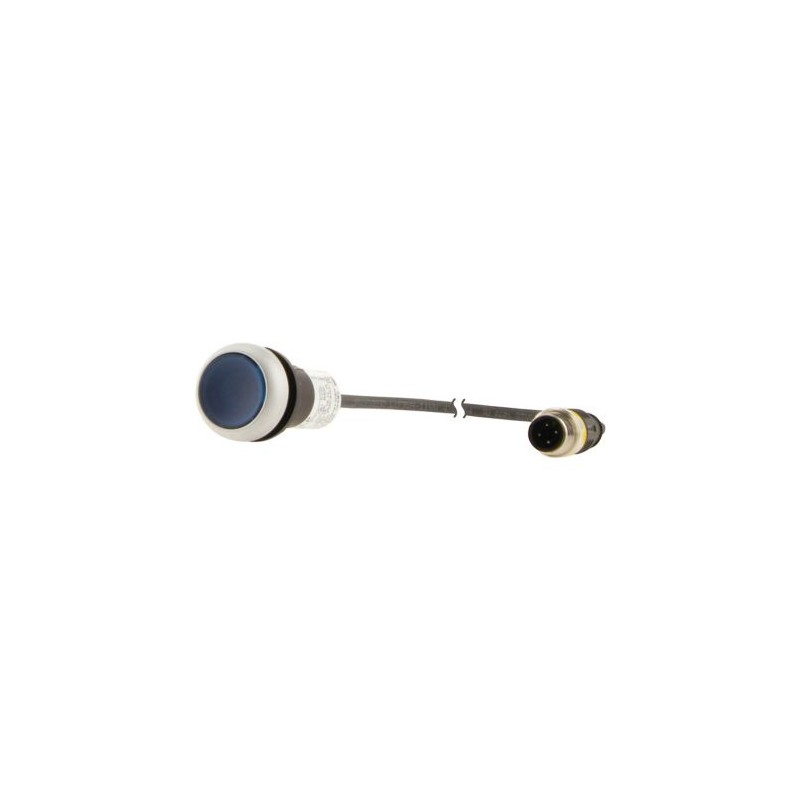

Illuminated pushbutton actuators; maintained; blue; 24v; 1 N/O; with cable 1m and M12A plug
C22-DRL-B-K10-24-P5
Eaton Moeller® series C22 Illuminated pushbutton actuators; maintained; blue; 24v; 1 N/O; with cable 1m and M12A plug
Illuminated pushbutton actuator, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 1 m, Color LED: Blue, button plate: Blue, Button plate Blank, Rated operational voltage LED: 24 V AC/DC, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660
Low-voltage industrial components > Push button, complete
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
UL Category Control No.: NKCR
IEC/EN 60947-5-1
CSA File No.: 165628
VDE 0660
CSA
CSA-C22.2 No. 14-05 and 94-M91
UL File No.: E29184
CSA Class No.: 321103
CE
UL
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
Features & Functions
M12A
Classical
General
IP67/IP69K
1 Nm, Plug
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
Contacts
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | Blue |
| Transparent (EF006243) | No |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Suitable for lighting (EF001142) | Yes |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| Supply voltage lamp (EF006522) | 24 V |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of electric connection (EF003961) | Other |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| C22-DRL-B-K10-24-P5 Y7-181364 181364 ES_181628.pdf | 2 Mbytes |
|
