C22-D-W-K10-P3 181635 EATON ELECTRIC Pushbutton, flat momentary white 1 N/O with cable 0.5m and M12A plug
C22-D-W-K10-P3
181635
Y7-181635
EATON-MOELLER
Pushbutton, flat; momentary; white; 1 N/O; with cable 0.5m and M12A plug
C22-D-W-K10-P3

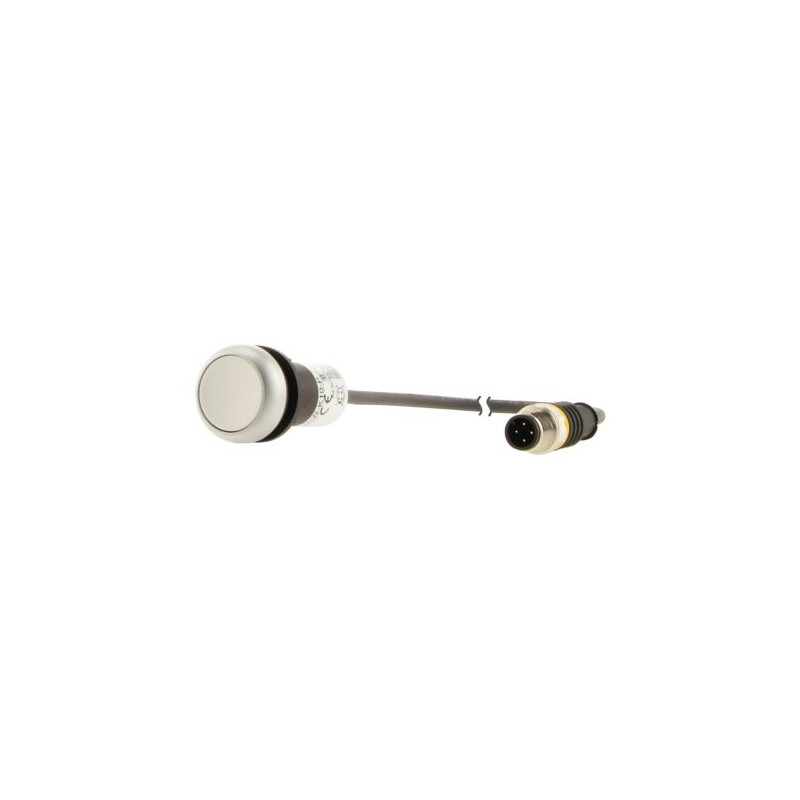

Pushbutton, Flat, momentary, 1 N/O, Cable (black) with M12A plug, 4 pole, 0.5 m, White, Blank, Bezel: titanium
Low-voltage industrial components > Push button, complete
Auxiliary Control and Signalling Elements
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Often bought together
▲Best sellers
▲More info
▲Pushbutton, Flat, momentary, 1 N/O, Cable (black) with M12A plug, 4 pole, 0.5 m, White, Blank, Bezel: titanium
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, momentary, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.5 m, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660
General specifications
Product name
Eaton Moeller® series C22 Pushbutton
Part no.
C22-D-W-K10-P3
EAN
4015081765027
Product Length/Depth
560 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.048 kilogram
Certifications
CSA Class No.: 321103
CSA File No.: 165628
IEC/EN 60947-5-1
UL
CSA
UL 508
CE
VDE 0660
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 14-05 and 94-M91
CE marking
CSA-C22.2 No. 14-18 and No. 94.2-15
CSA File No.: 165628
IEC/EN 60947-5-1
UL
CSA
UL 508
CE
VDE 0660
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 14-05 and 94-M91
CE marking
CSA-C22.2 No. 14-18 and No. 94.2-15
Product Tradename
C22
Product Type
Pushbutton
Product Sub Type
None
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Design
Flat
M12A
Classical
M12A
Classical
Electric connection type
Other
Fitted with:
Front ring
Inscription
Blank
General information
Cable length
0.5 m
Cable material
PUR
Connection to SmartWire-DT
No
Connection type
Cable (black) with M12A plug, 4 pole
Degree of protection
NEMA 12
IP67/IP69K
IP67/IP69K
Lifespan, mechanical
5,000,000 Operations
Mounting position
As required
Opening diameter
22.5 mm
Operating frequency
3600 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
RMQ compact solution
Rated impulse withstand voltage (Uimp)
800 V AC
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Tightening torque
1 Nm, Plug
2 Nm, Threaded ring
2 Nm, Threaded ring
Type
Pushbutton actuator
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
30 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie) at AC-15, 24 V
4 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts
Actuator
Actuating force
5 N
Actuator color
White
Actuator diameter
29.7 mm
Actuator function
Spring-return
Momentary
Momentary
Contacts
Control circuit reliability
1 failure per 17,000,000 swtching operations (statistically determined, at 17 V DC/7 mA: N/O contact
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
1
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Push button, complete (EC001028)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Push-button actuator, complete unit (ecl@ss13-27-37-12-28 [AKF046019])
Number of command positions
1
Type of button
Flat
Colour button
White
Transparent
No
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Suitable for illumination
No
Switching function latching
No
Spring-return
Yes
Supply voltage lamp
0 V
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Type of electric connection
Other
With front ring
Yes
Material front ring
Plastic
Colour front ring
Titanium
Degree of protection (IP)
IP67/IP69K
Degree of protection (NEMA)
12
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 23 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| C22-D-W-K10-P3 181635 EN_181635.pdf | 113 Kbytes |
|
