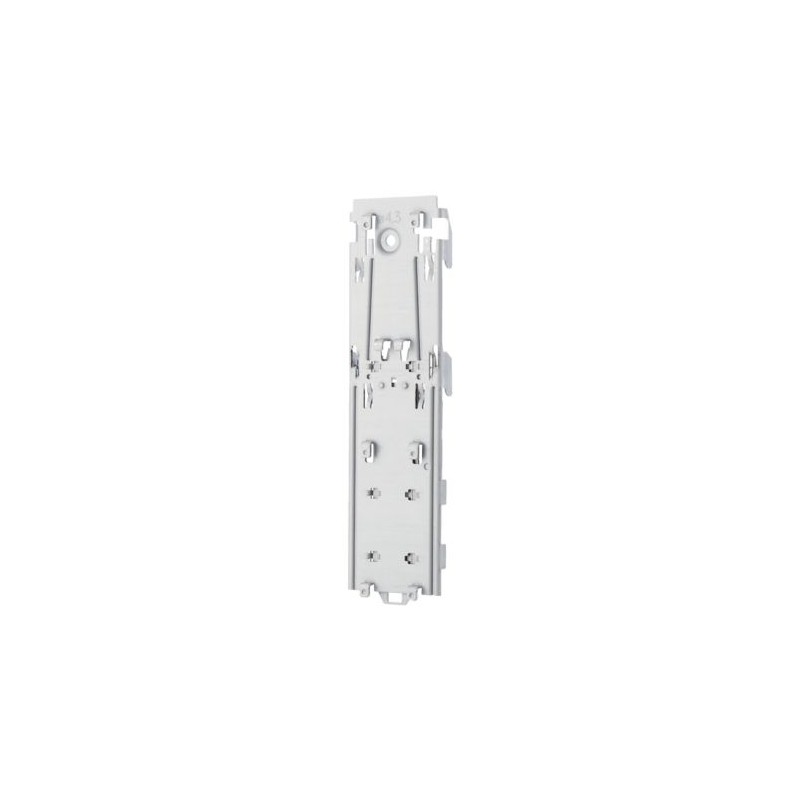

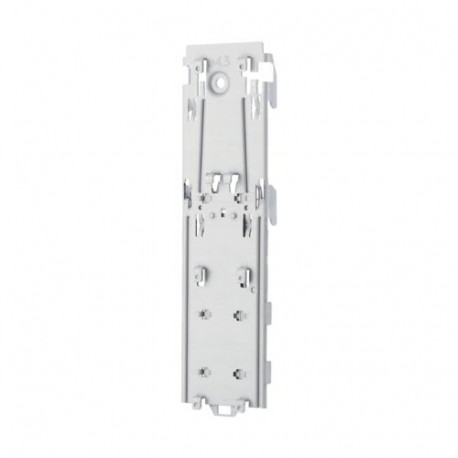

C-PKZ0-K 206740 Y7-206740 EATON ELECTRIC Clip plate, type shortened View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C-PKZ0-K 206740 Y7-206740 EATON ELECTRIC Clip plate, type shortened

C-PKZ0-K

206740

Y7-206740

EATON-MOELLER

Clip plate, type shortened

C-PKZ0-K

Eaton Moeller® series PKZ0 Clip plate, type shortened

Clip plate shortened version for high-capacity compact starter PKZM0 size for either snap or screw fixing

More details


Low-voltage industrial components > DIN-rail adapter

Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $6.70
Unit price: $6.70
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series PKZ0 Accessory Clip plate
Catalog Number
206740
Model Code
C-PKZ0-K
EAN
4015082067403
Product Length/Depth
14 mm
Product Height
195 mm
Product Width
44 mm
Product Weight
0.069 kg
Certifications
according to IEC/EN 60715

Features & Functions

Material
Metal

General

Mounting method
Snap fitting
Screw fixing
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 206740 Low-voltage industrial controls and switchgear (EC001024)
Feature Name Feature Value
Type of fastening (EF002442) DIN rail (top hat rail) 15 mm
Type of DIN-rail adapter (EF008236) Straight
Material (EF002169) Metal

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
C-PKZ0-K Y7-206740 206740 ES_206740.pdf 825 Kbytes C-PKZ0-K Y7-206740 206740 ES_206740.pdf
