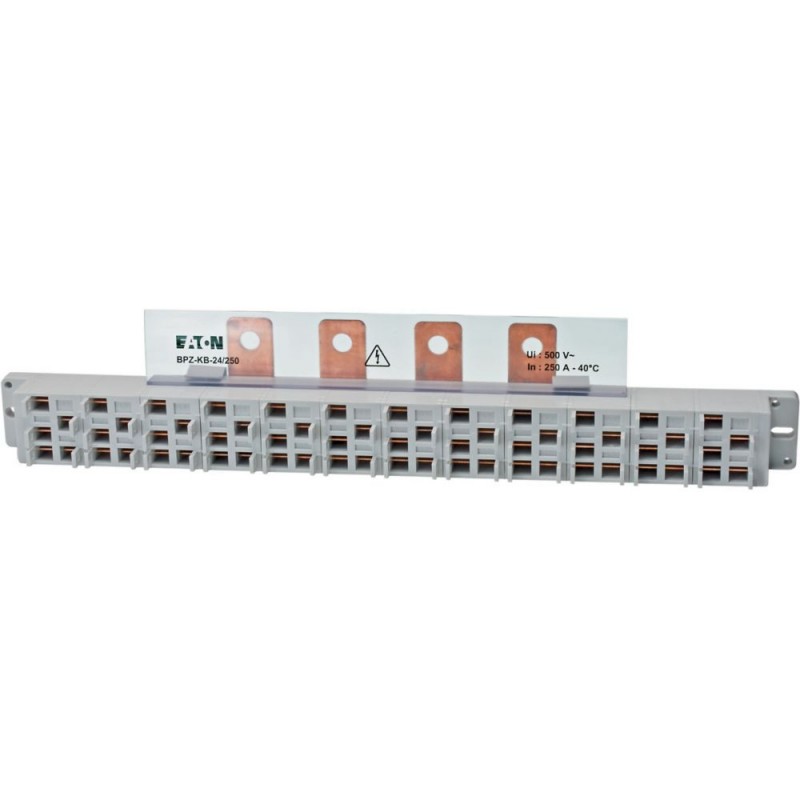

BPZ-KB-24/250 289971 Y7-289971 EATON ELECTRIC Block distributor 250A/63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BPZ-KB-24/250 289971 Y7-289971 EATON ELECTRIC Block distributor 250A/63A

BPZ-KB-24/250

289971

Y7-289971

EATON-MOELLER

Block distributor 250A/63A

BPZ-KB-24/250

Eaton xEnergy Basic LV systems Low voltage switchgear. Terminal block, 250 A/63 A

4-phase busbar, BPZ-KB-24/250, 12 outgoers per pole, neutral conductor 24 outgoers, 250 A busbar for powering a series of module devices, max. rated operational current per outgoer is 63 A, every plug closes automatically, ensuring a high level of safety. No direct contact risk, as per IP20, L x W x H: 427mm x 40mm x 50mm, equipment supplied: 1 4-phase busbars

More details


Energy distribution systems > Distributor assembly terminal blocks

Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $49.83
Unit price: $49.83
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xEnergy Basic other accessory
Catalog Number
289971
Model Code
BPZ-KB-24/250
EAN
4015082899714
Product Length/Depth
51 mm
Product Height
84 mm
Product Width
427 mm
Product Weight
1.3 kg
Compliances
RoHS conform

Delivery program

Amperage rating
250 A
Number of poles
Four-pole

Technical data - mechanical

Mounting method
Flush mounting
Surface mounting
Floor standing distribution board
Mounting position
Universal
Number of clamp positions per pole
12
Number of clamping units per pole
12
Conductor cross section (flexible, fine-strand) with cable end sleeve - min
1.5 mm²
Conductor cross section (flexible, fine-strand) with cable end sleeve - max
10 mm²
Conductor cross section (solid, solid-strand) - min
0 mm²
Conductor cross section (solid, solid-strand) - max
0 mm²

Additional information

Fitted with:
N-rail
Functions
Additional equipment

ETIM for 289971 Power distribution systems (EC001894)
Feature Name Feature Value
Height (EF000040) 84 mm
Width (EF000008) 427 mm
Depth (EF000049) 51 mm
Max. rated current (EF007926) 250 A
Number of poles (EF001391) 4
Conductor cross section flexible (fine-strand) with cable end sleeve (EF003460) 1.5 mm²
Conductor cross section solid (solid, stranded) (EF003462) 0 mm²
Number of clamp positions per pole (EF002519) 12
With PE-rail (EF007967) No
With N-rail (EF007963) Yes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BPZ-KB-24/250 Y7-289971 289971 EN_289971.pdf 106 Kbytes BPZ-KB-24/250 Y7-289971 289971 EN_289971.pdf
