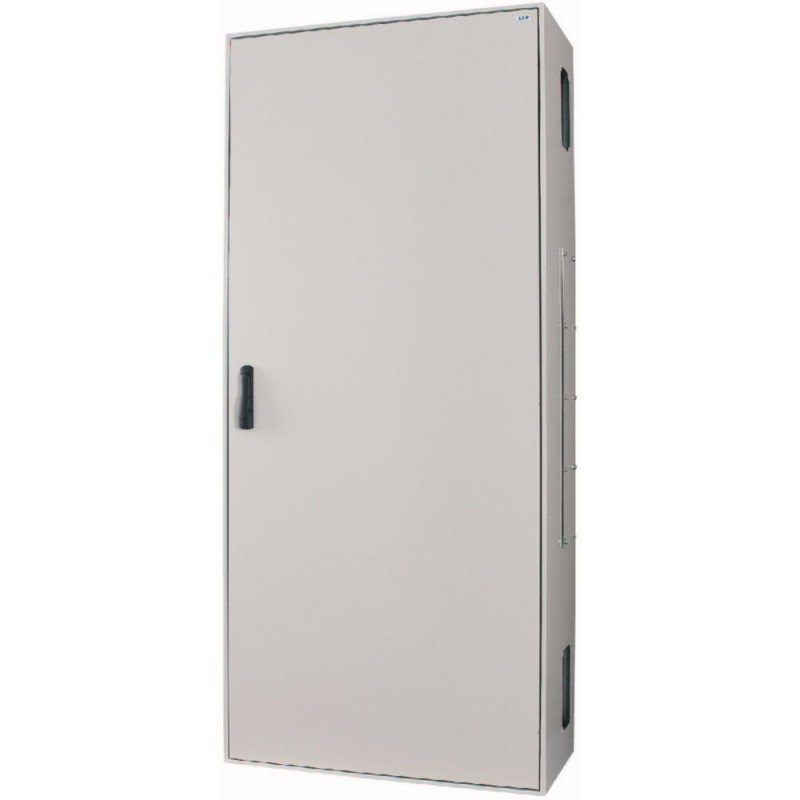

BPM-F-800/20/4-P 193214 EATON ELECTRIC Land distribution table.
BPM-F-800/20/4-P
193214
Y7-193214
EATON-MOELLER
Land distribution table.
Floor standing distribution board for damp locations with three-point rod lock and rotary lever, can be grouped, Large side flange, IP55, BPM-F-...; width 800mm, Outside height 2060 mm, Front plate height 1950 mm, Depth 400 mm; welded enclosure; earthed metal covers, extraordinary stability as a result of welded construction; well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure; door can be right-hand or left-hand door; ample wiring area; open cable entries on top and bottom , prepared for F3A gland plate insert; variable interior fittings with/without removable mounting frame; indoor installation with MSW or mounting towers possible, if using an MSW assembly configuration, 2 pairs of BPZ-CTS-S corner towers and 1 BPZ-SNAP-MSW-CTS snap fitting elements will be additionally required; if using a base frame assembly configuration, 2 BPZ-FPS front plate supports will be additionally required; gray, RAL 7035
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 800 mm |
| Height (EF000040) | 2060 mm |
| Depth (EF000049) | 400 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Freestanding (EF020363) | Yes |
| Floor standing wall model (EF015208) | No |
| Suitable for wall mounting (EF000664) | Yes |
| Corner model (EF020814) | No |
| Intermediate mounting (EF022994) | No |
| Couplable (EF001229) | Yes |
| With mounting plate (EF000118) | No |
| Mounting plate depth-adjustable (EF006054) | Yes |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| With door (EF009169) | Yes |
| Number of doors (EF000122) | 1 |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Number of locks (EF000123) | 0 |
| With cover (EF007965) | No |
| Transparent cover (EF011401) | No |
| Suitable for metrical mounting (EF005823) | Yes |
| Pitched roof (EF009278) | No |
| Number of connector holes (EF005554) | 0 |
| Pre-stamping (EF001039) | No |
| EMC-version (EF001062) | Yes |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP55 |
| Degree of protection (NEMA) (EF011959) | Other |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | 0 W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | 0 N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | 0 N |
