BF-UT-2S-4/96-100-E 302810 Y7-302810 EATON ELECTRIC Arm. Metal. Recessed with transparent door, 24 UM per ro..
BF-UT-2S-4/96-100-E
302810
Y7-302810
EATON-MOELLER
Arm. Metal. Recessed with transparent door, 24 UM per row, 4 rows,
BF-UT-2S-4/96-100-E

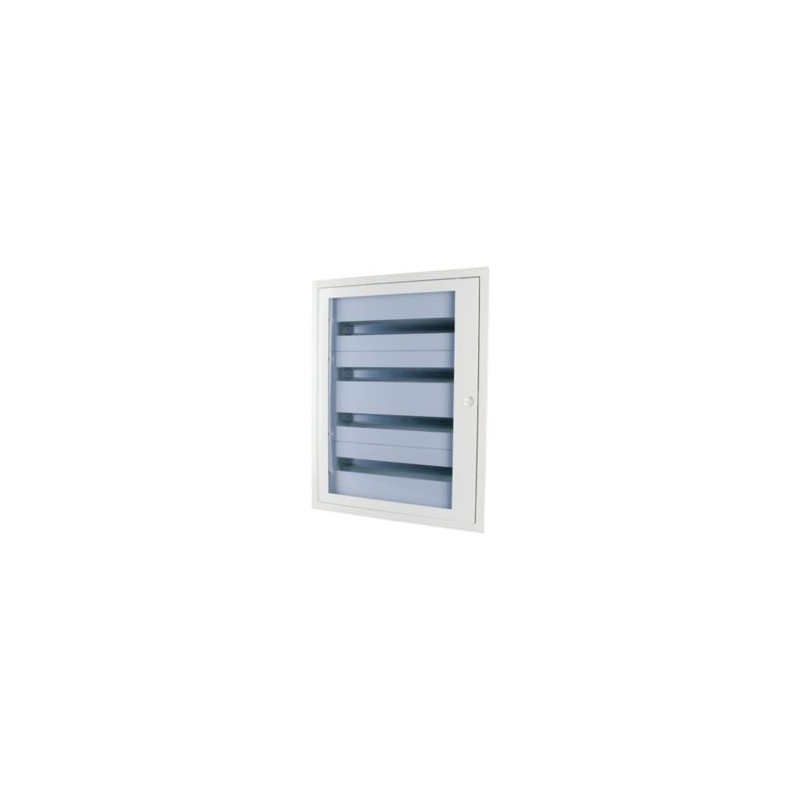

Eaton xComfort BF LV systems Final Distribution Boards. Complete flush-mounting/hollow wall slim distribution board, white, 24 SU per row, 4 rows, 100 mm mounting depth, UT
BF-U-2S-./..-100 flush mounting/hollow-wall slim distribution board with two-component design, consisting of wall trough and mounting subrack, including door with transparent panel; white RAL 9016; 24 space units per row; 4 rows; height 768 mm; width 588 mm; 100 mm mounting depth; incl. front plates; DIN-rails and N/PE terminals. Welded wall trough structure, incl. knockout cable entry openings on the top/bottom; 4 fixing straps on the sides prepared for mounting in the wall or for connecting two enclosures side-by-side. A mounting kit for hollow-wall mounting is available as an accessory . Terminals pre-assembled on enclosure (no loss of space units). Electrical contact for metal front plate achieved with special lock on enclosure. DIN-rail spacing: 150 mm
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton xComfort BF small distribution board |
| Catalog Number | 302810 |
| Model Code | BF-UT-2S-4/96-100-E |
| EAN | 9010238176881 |
| Product Length/Depth | 101 mm |
| Product Height | 768 mm |
| Product Width | 587.5 mm |
| Product Weight | 13.1 kg |
| Compliances | RoHS conform |
| Certifications | IEC/EN 62208 IEC/EN 61439-3 IEC/EN 61439-1 |
Delivery program
| Type | Basic deviceBF flat DBOInstallation distribution boards |
| Application | Indoor |
| Color | Traffic white (RAL 9016) White |
Technical Data - Electrical
| Voltage rating at AC | 415 V AC |
| Frequency rating of contacts | 50 Hz / 60 Hz |
Technical Data - Mechanical
| Closure type | Other |
| Width in number of modular spacings | 24 |
| Mounting method | Flush mounting DIN-rail Flush mounted (plaster) Hollow-wall mounting and flush mounting |
| Material | Sheet steel, powder-coated |
| Degree of protection | IP30 IK07 (impact resistance) |
| Number of module space units per row | 24 |
| Number of rows | 4 |
| Terminal type | Screw terminals |
| PE and N terminal number and cross section | PE: 2 x 25 mm² + 43 x 16 mm² N: 2 x 25 mm² + 27 x 16 mm² |
| Built-in depth | 100 mm |
| Built-in height | 739 mm |
| Built-in width | 560 mm |
| Internal depth | 95 mm |
| Cover/door color | Transparent |
| Cover/door model | Closed |
| Cover/door type | Door Single |
| Module rack type | Single-rail |
| Protective shrouding material | Metal |
Design verification as per IEC/EN 61439 - technical data
| Ambient operating temperature details | -5 °C - 40 °C |
Additional information
| Features | EMC-version Earthing terminal block Neutral terminal block Signal passing door |
| Fitted with: | Door with three-point turn-lock Neutral-/protective conductor terminal Wall trough Door frame with DIN-rails Front plates |
| Functions | Extension possible Basic device Sealable |
| Protection class | I (earthed) |
| RAL-number | 9016 |
| Special features | IP30Protection Class ISteel sheet enclosure white (RAL 9016) |
| Used with | BF flat DBO Installation distribution boards Basic device |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 4 |
| Width in number of modular spacings (EF002950) | 24 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | Yes |
| Signal passing door (EF015941) | Yes |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Built-in depth (EF000218) | 100 mm |
| Built-in height (EF000332) | 739 mm |
| Built-in width (EF000846) | 560 mm |
| Inner depth (EF001131) | 95 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 768 mm |
| Width (EF000008) | 587.5 mm |
| Depth (EF000049) | 101 mm |
