BF-U-2S-6/144-100-E 302806 EATON ELECTRIC BF-U-2S-6/144-100-E
BF-U-2S-6/144-100-E
302806
EATON-MOELLER
BF-U-2S-6/144-100-E

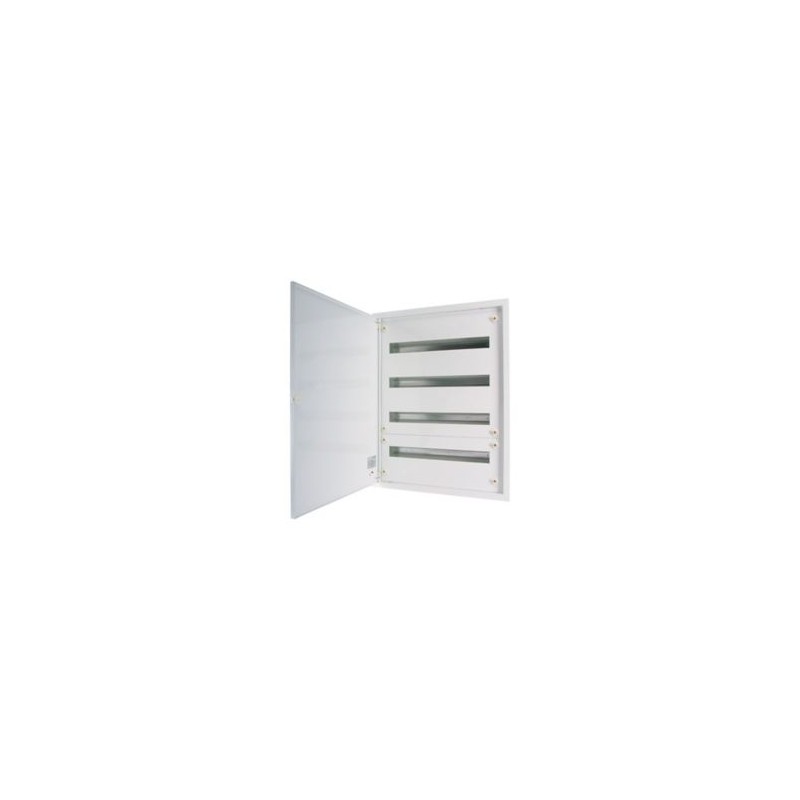

Complete flush-mounting/hollow wall slim distribution board, white, 24 SU per row, 6 rows, 100 mm mounting depth
Compact Distribution Boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Complete flush-mounting/hollow wall slim distribution board, white, 24 SU per row, 6 rows, 100 mm mounting depth
BF-U-2S-./..-100 flush mounting/hollow-wall slim distribution board with two-component design, consisting of wall trough and mounting subrack, including door; white RAL 9016; 24 space units per row; 6 rows; height 1068 mm; width 588 mm; 100 mm mounting depth; incl. front plates; DIN-rails and N/PE terminals. Welded wall trough structure, incl. knockout cable entry openings on the top/bottom; 4 fixing straps on the sides prepared for mounting in the wall or for connecting two enclosures side-by-side. A mounting kit for hollow-wall mounting is available as an accessory. Terminals pre-assembled on enclosure (no loss of space units). Electrical contact for metal front plate achieved with special lock on enclosure. DIN-rail spacing: 150 mm
Delivery program
Basic function
Basic device
Product function
Installation distribution boards
Product range
BF flat DBO
Design
Flush mounted
Installation site
Indoor
Type of installation
Hollow-wall mounting and flush mounting
Door/Flap
White
Degree of Protection
IP30
Colour
White
Module rack
Single-rail
Shroud for protection against accidental contact
Metal
Rows [Count]
6
Module units per row
24
Description
IP30
Protection Class I
Steel sheet enclosure white (RAL 9016)
Protection Class I
Steel sheet enclosure white (RAL 9016)
Cable entries
Cable entries on top and bottom
PE and N terminals design
Screw terminals
PE and N terminals [Number x cross-sectional area]
PE: 2 x 25 + 43 x 16
N: 2 x 25 + 27 x 16 mm2
N: 2 x 25 + 27 x 16 mm2
Equipment supplied
Wall trough
Door frame with DIN-rails
Door with three-point turn-lock
Front plates
Neutral-/protective conductor terminal
Door frame with DIN-rails
Door with three-point turn-lock
Front plates
Neutral-/protective conductor terminal
Technical data
General
Standards
IEC/EN 61439-1, IEC/EN 61439-3, IEC/EN 62208
RoHS (in accordance with Directive 2002/95/EC of the European Parliament and Council)
conform
Ambient temperature
-5 - +40 °C
Degree of Protection
IP30
Protection class
I (earthed)
Rated operational voltage [Ue]
415 V AC
Rated frequency [f]
50/60 Hz
Material characteristics
Material
Sheet steel, powder-coated
Colour
white (RAL 9016)
Material properties
MechanicalImpact resistance
IK08
Technical data ETIM 7.0
Distribution boards (EG000023) / Small distribution board (EC000214)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Small distribution board ([email protected] [ACN387011])
Mounting method
Flush mounted (plaster)
Number of rows
6
Width in number of modular spacings
24
Type of cover
Door
Cover model
Closed
Transparent cover/door
No
Material housing
Steel
Height
1068 mm
Width
587.5 mm
Depth
101 mm
Built-in depth
100 mm
Internal depth
95 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
Yes
EMC-version
No
Colour
White
RAL-number
9016
Degree of protection (IP)
IP30
With lock
No
Type of closure
Other
