BF-U-2S-5/165-100-E 302807 Y7-302807 EATON ELECTRIC BF-U-2S-5/165-100-E
BF-U-2S-5/165-100-E
302807
Y7-302807
EATON-MOELLER
BF-U-2S-5/165-100-E

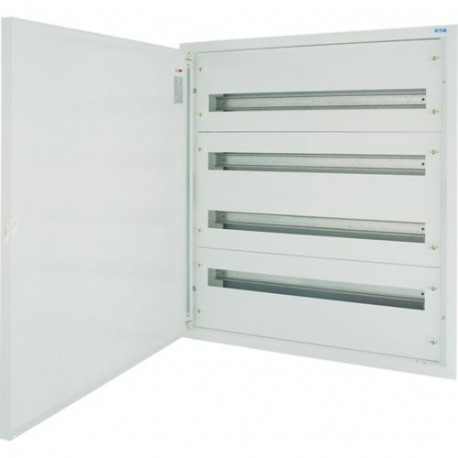

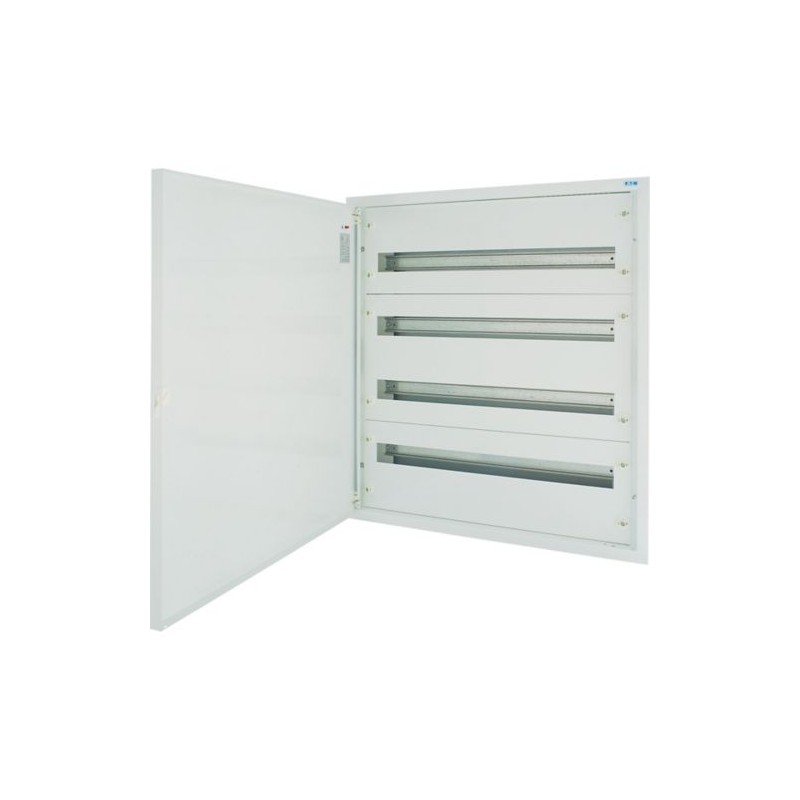

Eaton xComfort BF LV systems Final Distribution Boards. Complete flush-mounting/hollow wall slim distribution board, white, 33 SU per row, 5 rows, 100 mm mounting depth, U
BF-U-2S-./..-100 flush mounting/hollow-wall slim distribution board with two-component design, consisting of wall trough and mounting subrack, including door; white RAL 9016; 33 space units per row; 5 rows; height 918 mm; width 588 mm; 100 mm mounting depth; incl. front plates; DIN-rails and N/PE terminals. Welded wall trough structure, incl. knockout cable entry openings on the top/bottom; 4 fixing straps on the sides prepared for mounting in the wall or for connecting two enclosures side-by-side. A mounting kit for hollow-wall mounting is available as an accessory. Terminals pre-assembled on enclosure (no loss of space units) . Electrical contact for metal front plate achieved with special lock on enclosure. DIN-rail spacing: 150 mm
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
IEC/EN 62208
IEC/EN 61439-1
Delivery program
Traffic white (RAL 9016)
Technical data - electrical
Technical data - mechanical
Hollow-wall mounting and flush mounting
Flush mounting
DIN-rail
IK08 (impact resistance)
PE: 2 x 25 mm² + 43 x 16 mm²
Single
Design verification as per IEC/EN 61439 - technical data
Additional information
Earthing terminal block
Neutral terminal block
Door frame with DIN-rails
Door with three-point turn-lock
Wall trough
Front plates
Extension possible
BF flat DBO
Basic device
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 5 |
| Width in number of modular spacings (EF002950) | 33 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | No |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Built-in depth (EF000218) | 100 mm |
| Built-in height (EF000332) | 889 mm |
| Built-in width (EF000846) | 720 mm |
| Inner depth (EF001131) | 95 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 918 mm |
| Width (EF000008) | 749.5 mm |
| Depth (EF000049) | 101 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BF-U-2S-5/165-100-E Y7-302807 302807 EN_302807.pdf | 147 Kbytes |
|
