> EATON - MOELLER>Compact Distribution Boxes >BF-OT-5/120-E 193704 ELECTRIC Complete flush-mounted flat distribution board BF-O, IP30, with transpar..
Previous Product Next Product

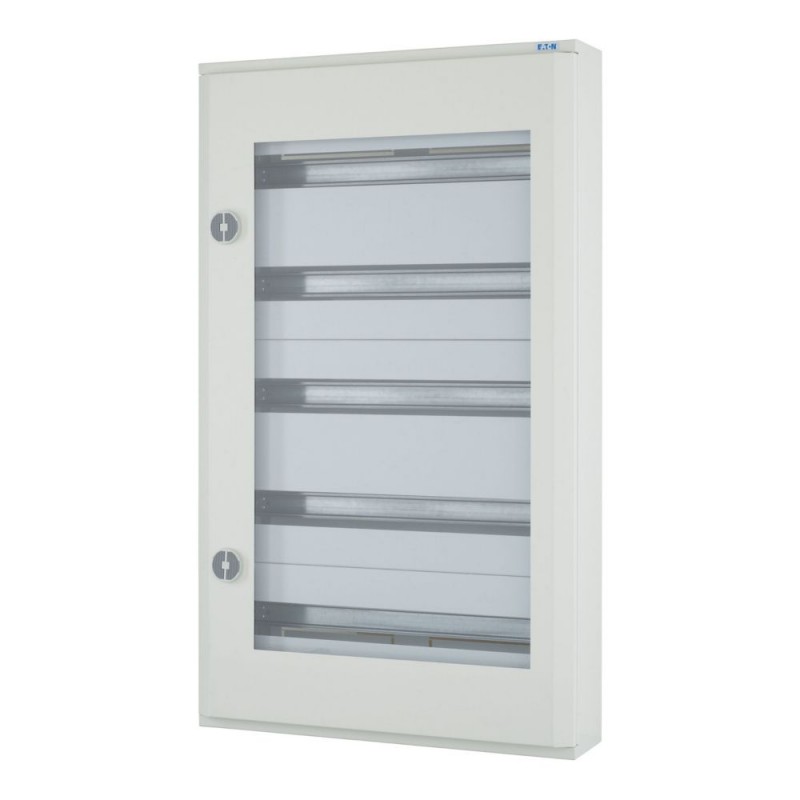

BF-OT-5/120-E 193704 EATON ELECTRIC Complete flush-mounted flat distribution board BF-O, IP30, with transpar.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BF-OT-5/120-E 193704 EATON ELECTRIC Complete flush-mounted flat distribution board BF-O, IP30, with transpar..

BF-OT-5/120-E

193704

EATON-MOELLER

Complete flush-mounted flat distribution board BF-O, IP30, with transparent door, 5 rows

BF-OT-5/120-E

Eaton xComfort BF LV systems Final Distribution Boards. Surface mounted flat distribution board complete, white, 24 TE per row, 5 rows, type E

More details


Distribution boards > Small distribution board

Compact Distribution Boxes

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $392.93
Unit price: $392.93

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xComfort BF small distribution board
Catalog Number
193704
Model Code
BF-OT-5/120-E
EAN
9010238035652
Product Length/Depth
150 mm
Product Height
900 mm
Product Width
543 mm
Product Weight
14.2 kg
Compliances
RoHS conform
Certifications
IEC/EN 61439-3
IEC/EN 62208
IEC/EN 61439-1

Delivery program

Type
Basic deviceBF flat DBOInstallation distribution boards
Application
Indoor
Color
Traffic white (RAL 9016)
White

Technical data - electrical

Voltage rating at AC
415 V AC
Frequency rating of contacts
50 Hz / 60 Hz

Technical data - mechanical

Closure type
Other
Enclosure material
Steel
Width in number of modular spacings
24
Mounting method
Surface mounting
DIN-rail
Surface mounted (plaster)
Material
Sheet steel, powder-coated
Degree of protection
IP30
IK07 (impact resistance)
Number of module space units per row
24
Number of rows
5
Terminal type
Screw terminals
PE and N terminal number and cross section
N: 2 x 25 mm² + 27 x 16 mm²
PE: 2 x 25 mm² + 27 x 16 mm²
Built-in depth
150 mm
Built-in height
900 mm
Built-in width
543 mm
Internal depth
131 mm
Cable entry postion
Cable entries on top and bottom
Cover/door color
Transparent
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Rail frame
Protective shrouding material
Metal

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Additional information

Features
EMC-version
Earthing terminal block
Neutral terminal block
Signal passing door
Fitted with:
Neutral-/protective conductor terminal
Door with Profi-Line three-point turn-lock
Cable gland plate inserts (top)
DIN rail mounting frame
Enclosure
Front plates
Functions
Basic device
Protection class
I (earthed)
RAL-number
9016
Special features
IP30Protection Class ISteel sheet enclosure white (RAL 9016)
Used with
BF flat DBO
Basic device
Installation distribution boards

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
BF-OT-5/120-E 193704 EN_193704.pdf 112 Kbytes BF-OT-5/120-E 193704 EN_193704.pdf
