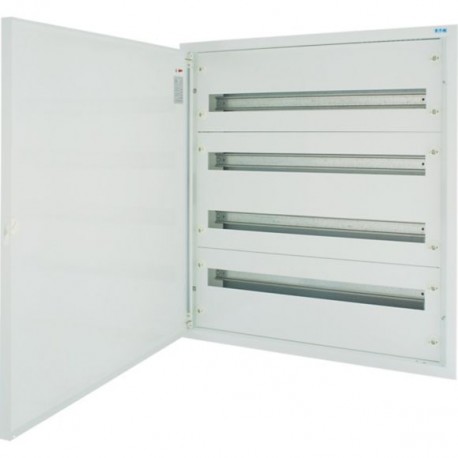

BF-OT-2/48-E 193701 Y7-193701 EATON ELECTRIC Complete flush-mounted flat distribution board BF-O, IP30, with..
BF-OT-2/48-E
193701
Y7-193701
EATON-MOELLER

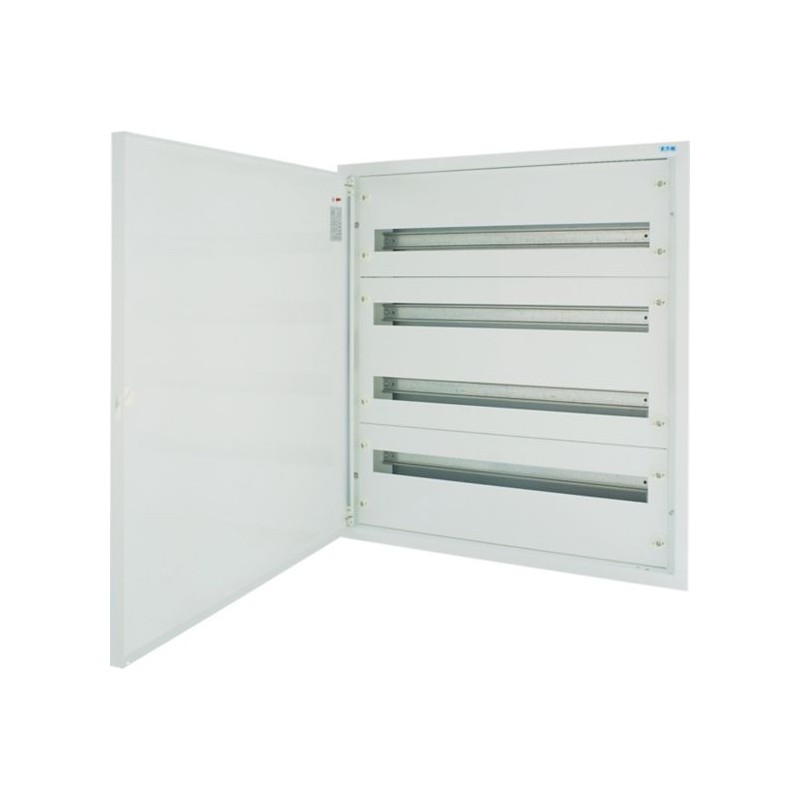

Complete flush-mounted flat distribution board BF-O, IP30, with transparent door, 2 rows
BF-OT-2/48-E
Eaton xComfort BF LV systems Final Distribution Boards. Surface mounted flat distribution board complete, white, 24 TE per row, 2 rows, type E
Surface mounted flat distribution board complete, white, RAL 9016, 24 space units per row, 2 rows, height 450mm, width 543mm, depth 140mm inclusive door with Profi-Line cam lock, front plates, DIN-rail mounting frame and neutral/PE terminals, Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane , cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Window door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door). Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit , a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). Electrical contact for metal front plate achieved with special lock on enclosure
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
IEC/EN 62208
IEC/EN 61439-3
Delivery program
White
Technical data - electrical
Technical data - mechanical
DIN-rail
Surface mounted (plaster)
IP30
N: 2 x 25 mm² + 27 x 16 mm²
Single
Design verification as per IEC/EN 61439 - technical data
Additional information
Earthing terminal block
Neutral terminal block
Signal passing door
Neutral-/protective conductor terminal
DIN rail mounting frame
Enclosure
Cable gland plate inserts (top)
Door with Profi-Line three-point turn-lock
Installation distribution boards
Basic device
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 2 |
| Width in number of modular spacings (EF002950) | 24 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | Yes |
| Signal passing door (EF015941) | Yes |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Built-in depth (EF000218) | 150 mm |
| Built-in height (EF000332) | 450 mm |
| Built-in width (EF000846) | 543 mm |
| Inner depth (EF001131) | 131 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 450 mm |
| Width (EF000008) | 543 mm |
| Depth (EF000049) | 150 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BF-OT-2/48-E Y7-193701 193701 EN_193701.pdf | 112 Kbytes |
|
