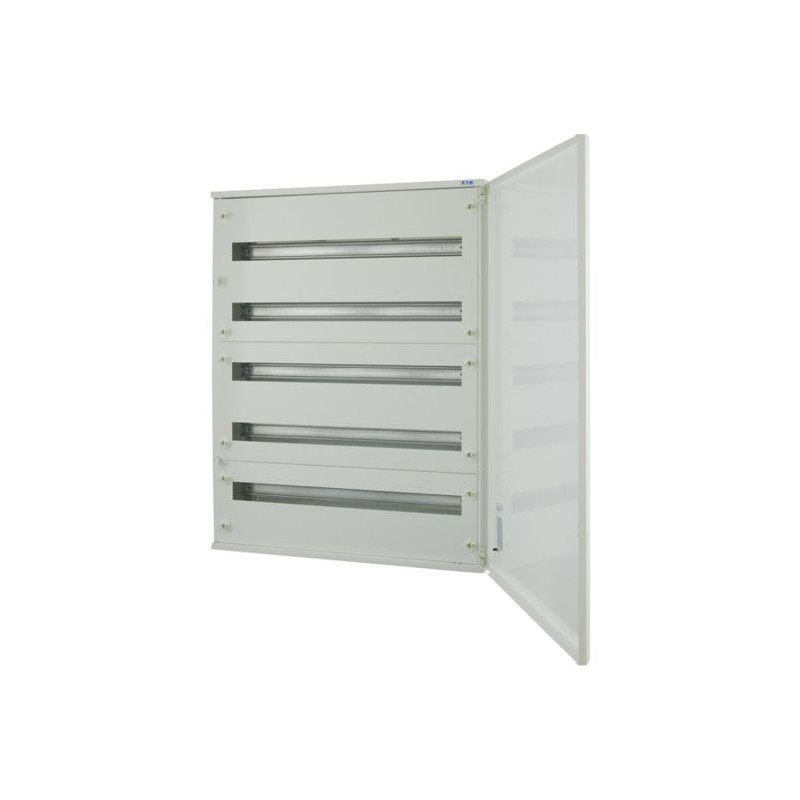

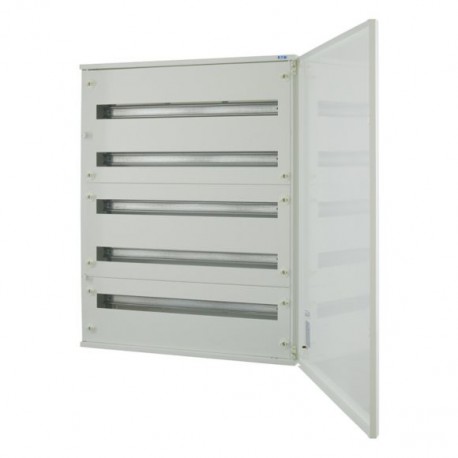

BF-O-5/165-E 193699 Y7-193699 EATON ELECTRIC Surface mounted flat distribution board complete, white, 33 TE ..
BF-O-5/165-E
193699
Y7-193699
EATON-MOELLER
Surface mounted flat distribution board complete, white, 33 TE per row, 5 rows, type E
BF-O-5/165-E
Eaton xComfort BF LV systems Final Distribution Boards. Surface mounted flat distribution board complete, white, 33 TE per row, 5 rows, type E, O
Surface mounted flat distribution board complete, white, RAL 9016, 33 space units per row, 5 rows, height 900mm, width 705mm, depth 140mm inclusive door with Profi-Line cam lock, front plates, DIN-rail mounting frame and neutral/PE terminals, Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane , cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) Sheet steel door with transparent panel (BFZ-OTT-./...) is available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit , a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). electrical contact for metal front plate achieved with special lock on enclosure
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
| Product Name | Eaton xComfort BF small distribution board |
| Catalog Number | 193699 |
| Model Code | BF-O-5/165-E |
| EAN | 9010238035607 |
| Product Length/Depth | 150 mm |
| Product Height | 900 mm |
| Product Width | 705 mm |
| Product Weight | 19.7 kg |
| Compliances | RoHS conform |
| Certifications | IEC/EN 61439-1 IEC/EN 61439-3 IEC/EN 62208 |
Delivery program
| Type | Basic deviceBF flat DBOInstallation distribution boards |
| Application | Indoor |
| Color | Traffic white (RAL 9016) White |
Technical Data - Electrical
| Voltage rating at AC | 415 V AC |
| Frequency rating of contacts | 50 Hz / 60 Hz |
Technical Data - Mechanical
| Closure type | Other |
| Width in number of modular spacings | 33 |
| Mounting method | Surface mounted (plaster) Surface mounting DIN-rail |
| Material | Sheet steel, powder-coated |
| Degree of protection | IK08 (impact resistance) IP30 |
| Number of module space units per row | 33 |
| Number of rows | 5 |
| Terminal type | Screw terminals |
| PE and N terminal number and cross section | N: 2 x 25 mm² + 27 x 16 mm² PE: 2 x 25 mm² + 27 x 16 mm² |
| Built-in depth | 150 mm |
| Built-in height | 900 mm |
| Built-in width | 705 mm |
| Internal depth | 131 mm |
| Cover/door color | White |
| Cover/door model | Closed |
| Cover/door type | Door Single |
| Module rack type | Rail frame |
| Protective shrouding material | Metal |
Design verification as per IEC/EN 61439 - technical data
| Ambient operating temperature details | -5 °C - 40 °C |
Additional information
| Features | EMC-version Earthing terminal block Neutral terminal block |
| Fitted with: | Cable gland plate inserts (top) Neutral-/protective conductor terminal Door with Profi-Line three-point turn-lock Enclosure DIN rail mounting frame Front plates |
| Functions | Basic device Sealable |
| Protection class | I (earthed) |
| RAL-number | 9016 |
| Special features | IP30Protection Class ISteel sheet enclosure white (RAL 9016) |
| Used with | BF flat DBO Basic device Installation distribution boards |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 5 |
| Width in number of modular spacings (EF002950) | 33 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | No |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Steel |
| Built-in depth (EF000218) | 150 mm |
| Built-in height (EF000332) | 900 mm |
| Built-in width (EF000846) | 705 mm |
| Inner depth (EF001131) | 131 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| EMC-version (EF001062) | Yes |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP30 |
| Height (EF000040) | 900 mm |
| Width (EF000008) | 705 mm |
| Depth (EF000049) | 150 mm |
