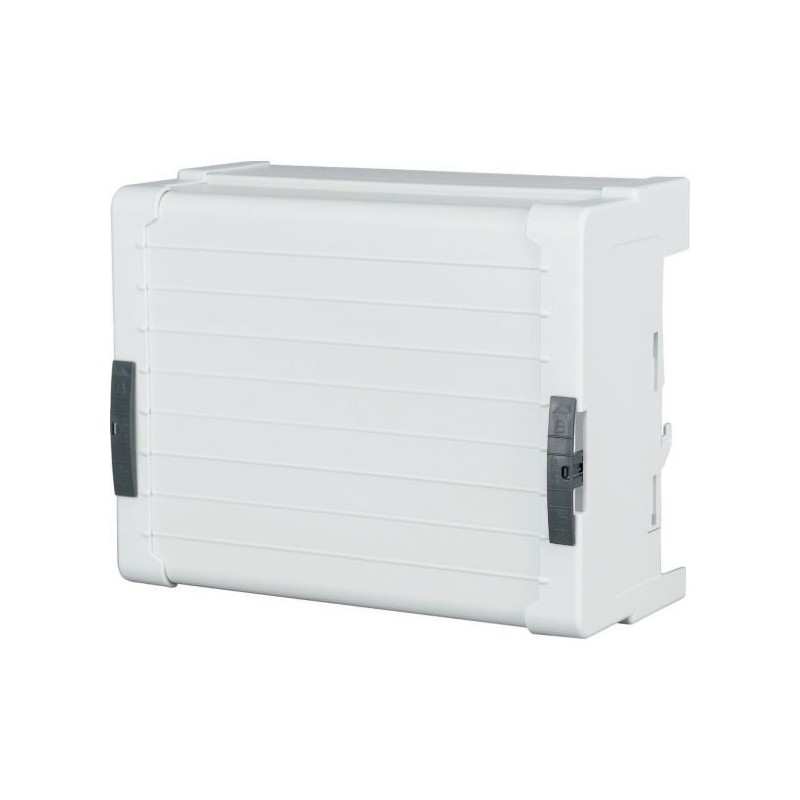

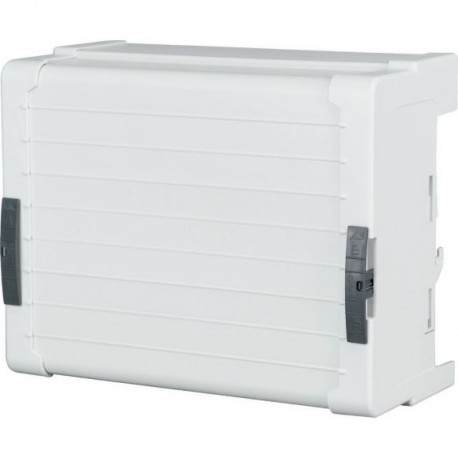

BBC-CS2-F 107180 Y7-107180 EATON ELECTRIC Cover section, a front, B 1100mm, for 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBC-CS2-F 107180 Y7-107180 EATON ELECTRIC Cover section, a front, B 1100mm, for 3p

BBC-CS2-F

107180

Y7-107180

EATON-MOELLER

Cover section, a front, B=1100mm, for 3p

BBC-CS2-F

Shroud section, front, B=1100mm, for 3p

Shroud section, front, B=1100mm, für 3 pole busbar systems SASY60i

More details


Energy distribution systems > Accessories/spare parts for busbars

Connection Accessories for Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $78.38
Unit price: $78.38
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Shroud section, front, B=1100mm, for 3p
Shroud section, front, B=1100mm, für 3 pole busbar systems SASY60i

General specifications
Product name
Eaton xEffect SASY 60i cover
Part no.
BBC-CS2-F
EAN
4015081069439
Product Length/Depth
1100 millimetre
Product height
3 millimetre
Product width
190 millimetre
Product weight
0.42 kilogram
Compliances
IEC 60439-1
CSA-C22.2 No. 14
UL508A
CE marking
UL CSA09 (refer to approbation report)
RoHS conform
Certifications
North America (UL listed, CSA certified)
CSA (File No. 236217)
CSA (Class No. 3211-37)
UL (Category Control Number NMTR, NMTR7)
UL (File No. E300273)
Product Tradename
xEffect SASY 60i
Product Type
Busbar system component
Product Sub Type
Cover
Delivery program
Type
60 mm system
System covers
Accessory/spare part type
Contact protection rail
Accessory
Spare part
Technical Data - Electrical
Voltage rating (UL CSA 13)
Max. 600 V AC
Technical Data - Mechanical
Material
Silicon free, chlorine free
Degree of protection
Feeder circuits
Design verification as per IEC/EN 61439 - technical data
Temperature resistance
Up to 120 °C
Additional information
Features
Self-extinguishing acc. UL 94
Functions
System cover, modular
Accessory
Current limiting circuit breaker, refer to approbation report
Special features
Shrouding profile, front
Suitable for
Three-pole
Used with
Feeder circuits

Technical data ETIM 9.0

Energy distribution systems (EG000015) / Accessories/spare parts for busbars (EC002270)
Electric engineering, automation, process control engineering / Electrical installation, device / Terminal (not overhead line) / Terminal (not overhead line, accessories) (ecl@ss13-27-14-11-92 [AFR653008])
Type of accessory/spare part
Contact protection rail
Accessory
Yes
Spare part
Yes

ETIM for 107180 Power distribution systems (EC002270)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Shielding rail
Accessory (EF013236) Yes
Spare part (EF013237) Yes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
BBC-CS2-F Y7-107180 107180 EN_107180.pdf 106 Kbytes BBC-CS2-F Y7-107180 107180 EN_107180.pdf
